TE Connectivity 1-776163-4

B00KSO3NOS

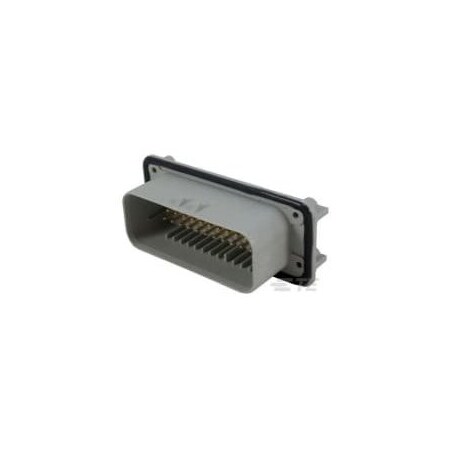

TE Connectivity Part Number 1776163-4

TE Connectivity Part Number 1776163-4zoom

Attributes

Key Value
Alternate Part No.571-1-776163-4
ApplicationsAutomotive, Industrial
Base Product Number776163
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
ColorGray, Black
Connector TypeHeader
Contact Finish - MatingGold-Palladium
Contact Finish - Post-
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post-
Contact MaterialCopper Alloy, Brass
Contact Mating FinishTin
Contact PlatingGold
Contact ShapeCircular
Contact Tail Length0.138" (3.50mm)
Contact TypeMale Pin
Country of Origin (subj.United States
Current - IEC-
Current - UL15 A
Current Rating (Amps)Varies by Wire Gauge
Fastening TypeLocking Ramp
Features-, Board Guide, Sealed
GenderMale
Header Orientation90?, Right Angle
Housing MaterialPolyamide (PA), Nylon
Ingress Protection-
Insulation ColorGray
Insulation Height0.329" (8.36mm), -
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity
Manufacturer Part No.1-776163-4
Mated Stacking Heights-
Material Flammability R.UL94 V-0, -
MfrTE Connectivity AMP Con.
Mounting MethodSMD/SMT
Mounting StyleSMD/SMT
Mounting TypeThrough Hole, Panel Mou.
Number of Levels1
Number of Positions4, 35
Number of Positions Loa.All
Number of Rows3
Operating Temperature-40?C ~ 125?C, -40?C ~ .
Overall Contact Length-
PackageBulk
Part # Aliases1776163-4
Part StatusActive
Pitch0.400" (10.16mm)
Pitch - Mating0.157" (4.00mm)
Plug Wire Entry-
Positions Per Level4
ProductHeaders
Product CategoryAutomotive Connectors
Row Spacing - Mating0.157" (4.00mm)
Screw Size-
SeriesAMPSEAL
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination StyleSolder
Torque - Screw-
TypeHeader, Male Pins, Shro.
Voltage - UL600 V
Voltage Rating250VAC
Wire Gauge or Range - A.-
Wire Gauge or Range - m.-
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group1-776163-49.46382202TE Connectivity9.4638 @ 220
Onlinecomponents.com1-776163-410.7112TE Connectivity / AMP Brand10.71 @ 2
Future Electronics903346611.282202TE Connectivity11.28 @ 220
thumbzoomswatee.com1-776163-418.05158TE Connectivity18.05 @ 2
thumbzoomNewark70AH687519.68110AMP - TE CONNECTIVITY19.68 @ 2
Arrow1-776163-419.883157TE Connectivity19.883 @ 2
Digi-Key311539020.265002TE Connectivity AMP Connectors20.26 @ 2
Mouser571-1-776163-420.321653TE Connectivity20.32 @ 2
RS Delivers183-910620.80812TE Connectivity20.808 @ 2
thumbzoomZoroG50097918629.9912Te Connectivity29.99 @ 2
