TE Raychem 2-1734248-8

mpn2-1734248-8
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

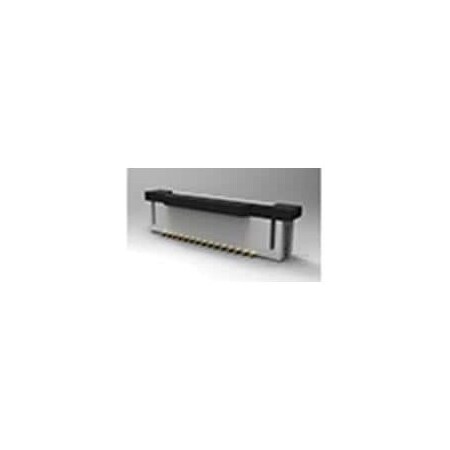

TE Raychem Connector

TE Raychem Connector

zoom

Brand: TE Raychem
PartNumber: 2-1734248-8
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Actuator Color	Black
Actuator Material	Polyamide (PA9T), Nylon.
Base Product Number	1734248
Cable End Type	Tapered
Category	Connectors, Interconnec.
Connector/Contact Type	Contacts, Vertical - 1 .
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Country of Origin (subj.	United States
Current Rating (Amps)	1A
Features	Zero Insertion Force (Z.
FFC, FCB Thickness	0.30mm
Flat Flex Type	FPC
Height Above Board	0.217" (5.50mm)
Housing Color	Black
Housing Material	Polyamide (PA9T), Nylon.
Locking Feature	Slide Lock
Material Flammability R.	UL94 V-0
Mating Cycles	20
Mfr	TE Connectivity AMP Con.
Mounting Type	Surface Mount
Number of Positions	28
Operating Temperature	-20?C ~ 85?C
Package	Tape & Reel (TR)
Part Status	Active
Pitch	0.039" (1.00mm)
Product Status	Active
Series	-
Termination	Solder
Voltage Rating	125V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G301041259	1.28	8000	78	80	Te Connectivity		1.28 @ 8000
	Newark	73R7509	2.27	8000	44		TE CONNECTIVITY		2.27 @ 8000
	Digi-Key	2180544	2.63	1	78		TE Connectivity AMP Connectors		2.63 @ 1
	Onlinecomponents.com	2-1734248-8	3.33	1	999		TE Connectivity / AMP Brand		3.33 @ 1
