- mpnBR12S2AC3
- brandname: US Motors
- manufacturername: US Motors

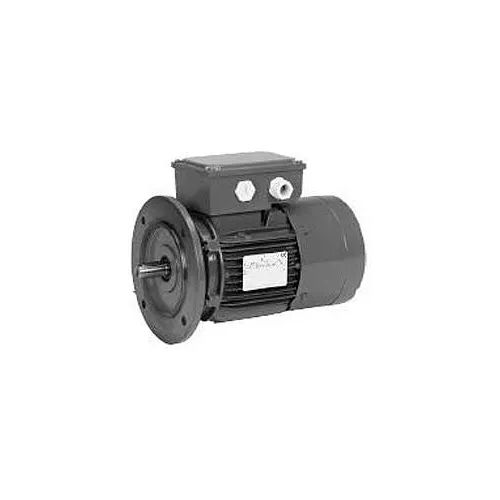

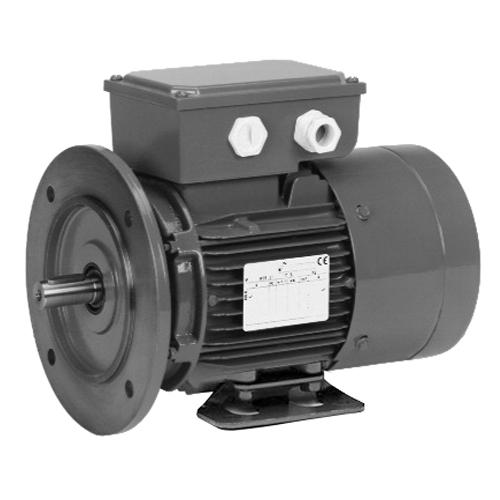

U.S. Motors US Motors Brake, 0.5 HP, 3-Phase, 1720 RPM Motor, BR12S2AC3
- Brand: U.S. Motors
- PartNumber: BR12S2AC3
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 2.1-1.9/1.0 |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Efficiency | 66.9% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 24.20 |
| Family Series | US Motors Motors |
| FL Amps | 2.1-1.9/1.0 |
| FL Efficiency | 66.9 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 22 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 50/60 |
| Insulation Class | F |
| Item Number | BR12S2AC3 |
| Kilowatts | 0.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | 4BRA12TC |
| Manufacturer Part Number | BR12S2AC3 |
| Maximum Ambient Tempera. | 40? C |
| Model Number | 4BRA12TC |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | BR12S2AC3 |
| Phase | 3 |
| Product Type | Brake Motors, Three Pha. |
| Rotation | Reversible |
| RPM | 1,720 RPM, 1720 |
| Service Factor | 1.15 |
| Ship Weight | 22 lbs. |
| Speed (RPM) | 1800 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | BR12S2AC3 | 1223.08 | 1 | In Stock | | US Motors (Nidec) | 24.2 | 1223.08 @ 1 |
 | Global Industrial | WBB467501 | 1470.0 | 1 | In Stock | 17 | US Motors | | 1470.0 @ 1 |
 | Galco | BR12S2AC3-USM | 1551.12 | 1 | In Stock | | US Motors | 22.0 | 1551.12 @ 1 |
 | emotorpro.com | BR12S2AC3 | 1596.3 | 1 | In Stock | | U.S. Motors | 22.0 | 1596.3 @ 1 |
 | National Supply Network | B467501 | 1624.79 | 1 | In Stock | | US MOTORS | | 1624.79 @ 1 |
| motionindustries.com | 02898194 | 2276.58 | 1 | In Stock | | US Motors (Nidec) | | 2276.58 @ 1 |
