- mpnEE506B
- brandname: US Motors
- manufacturername: US Motors

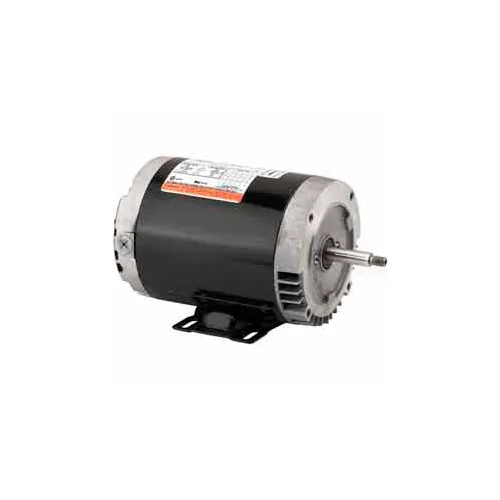

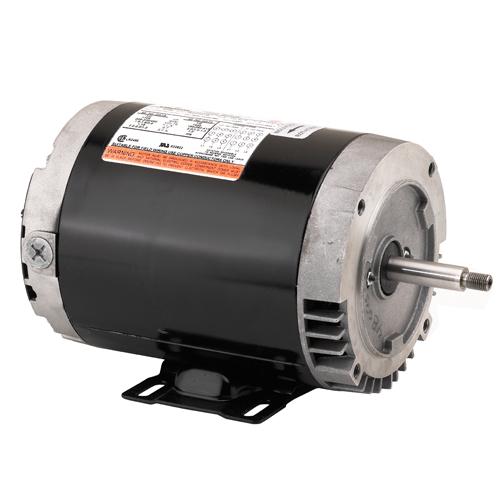

U.S. Motors US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506B
- Brand: US Motors
- PartNumber: EE506B
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 1.7, 3.4, 3.5 |
| Amps | 3.5-3.4/1.7 |
| Application | Commercial |
| Bearing Type | Ball |
| Bearings | Ball |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Rolled Steel |
| Condensing | No |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| CSA Certified | Yes |
| Diameter | 6-3/10 in |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 24.20 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 3.5-3.4/1.7 |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 22 lbs |
| Height | 11 in |
| Hertz | 50, 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 50/60 |
| Indoor Outdoor | Indoor/Outdoor |
| Insulation Class | B |
| Item | Motor,1HP,3450,2850RPM,. |
| Item Number | EE506B |
| Kilowatts | 0.8 kW |
| Length | 15-8/25 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063ELH5021013J |
| Manufacturer Part Number | EE506B |
| Material | Steel |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063ELH5021013J |
| Motor Enclosure | Open Drip Proof (ODP) |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 15-8/25 in x 8-1/4 in x. |
| Overload Protection | None |
| Part Number | EE506B |
| Phase | 3, Three Phase |
| Power Source | Electric |
| Product Type | Pump, Motor, Three Phase |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM Range | 1400 and Above |
| Service Factor | 1.40 |
| Shaft Length | 1-7/8 in |
| Shaft Size | 5/8 in |
| Ship Weight | 22 lbs. |
| Speed (RPM) | 3450 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMEE506B |
| UL Listed | No |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460, 208-230/. |
| Weight | 22 |
| Width | 8-1/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0919141 | 382.0 | 1 | In Stock | | U.S. Motors | 22.0 | 382.0 @ 1 |
 | motorsandcontrol.com | EE506B | 399.61 | 1 | In Stock | | US Motors (Nidec) | 24.2 | 399.61 @ 1 |
 | Global Industrial | WBB466602 | 412.95 | 1 | In Stock | | US Motors | | 412.95 @ 1 |
 | emotorpro.com | EE506B | 445.2 | 1 | In Stock | | U.S. Motors | 22.0 | 445.2 @ 1 |
 | National Supply Network | B466602 | 464.24 | 1 | In Stock | | US MOTORS | | 464.24 @ 1 |
 | Galco | EE506B-USM | 470.35 | 1 | In Stock | | US Motors | 22.0 | 470.35 @ 1 |
| motionindustries.com | 04385257 | 602.02 | 1 | In Stock | | US Motors (Nidec) | | 602.02 @ 1 |
| ferguson.com | 9586499 | 817.03 | 1 | In Stock | | US Motors | | 817.03 @ 1 |
