- mpnEE508
- brandname: US Motors
- manufacturername: US Motors

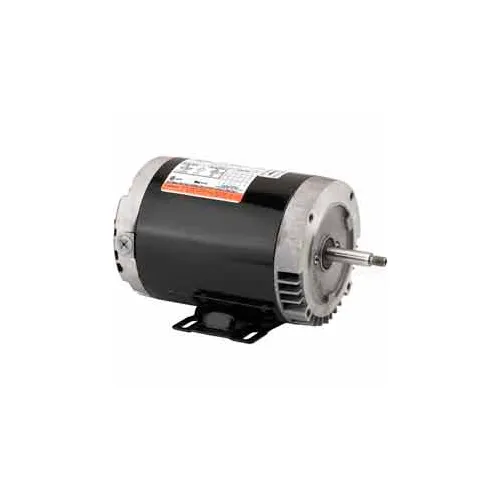

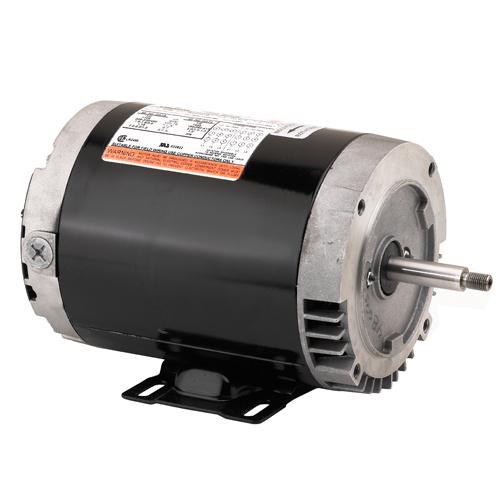

U.S. Motors US Motors Pump, 3/4 HP, 3-Phase, 3450 RPM Motor, EE508
- Brand: US Motors
- PartNumber: EE508
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 2.7-2.8/1.4 |
| Bearings | Ball |
| Bolt Circle Dia. | 5 7/8 in |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Duty | CONT |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 22.00 |
| Family Series | US Motors Motors |
| FL Amps | 2.7-2.8/1.4 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 20.2 lbs |
| Hertz | 50, 60 |
| Horsepower | 3/4 HP |
| HP | 3/4 HP, 3/4, 0.75 |
| HP @ 50Hz | 3/4 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | EE508 |
| Kilowatts | 0.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P055DAR1347015J |
| Manufacturer Part Number | EE508 |
| Max. SF Amps | 3.8-3.6/1.8 |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P055DAR1347015J |
| Motor Bearings | Ball |
| Motor Mounting Type | C-Face |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Threaded |
| Motor Thermal Protection | NONE |
| Mounting | Face, Footless |
| Mounting Type | C-Face |
| NEMA Design | C |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC, 380 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 11 5/16 in |
| Overload Protection | NONE |
| Part Number | EE508 |
| Phase | 3, 3 ph |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 2,850/3,450 |
| RPM Range | 3450 & 2850 RPM |
| Service Factor | 1.50 |
| Ship Weight | 20 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 190 VAC, 208-230 VAC, 3. |
| Voltage @ 50Hz | 190/380V, 208-230/460 |
| Volts | 200, 230, 460 |
| Weight | 20 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | EE508 | 374.32 | 1 | In Stock | | US Motors (Nidec) | 22.0 | 374.32 @ 1 |
 | Zoro | G0920849 | 374.99 | 1 | In Stock | | U.S. Motors | 20.0 | 374.99 @ 1 |
 | Global Industrial | WBB466603 | 383.95 | 1 | In Stock | 17 | US Motors | | 383.95 @ 1 |
 | emotorpro.com | EE508 | 417.03 | 1 | In Stock | | U.S. Motors | 20.0 | 417.03 @ 1 |
 | Galco | EE508-USM | 440.58 | 1 | In Stock | | US Motors | 20.2 | 440.58 @ 1 |
 | National Supply Network | B466603 | 453.83 | 1 | In Stock | | US MOTORS | | 453.83 @ 1 |
 | motionindustries.com | 04385465 | 563.91 | 1 | In Stock | | US Motors (Nidec) | | 563.91 @ 1 |
