- mpnEJM154B
- brandname: US Motors
- manufacturername: US Motors

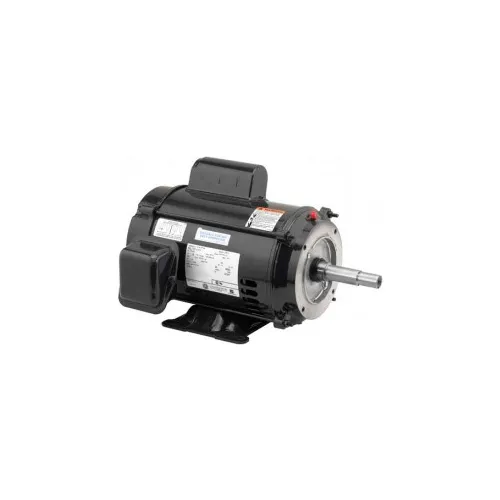

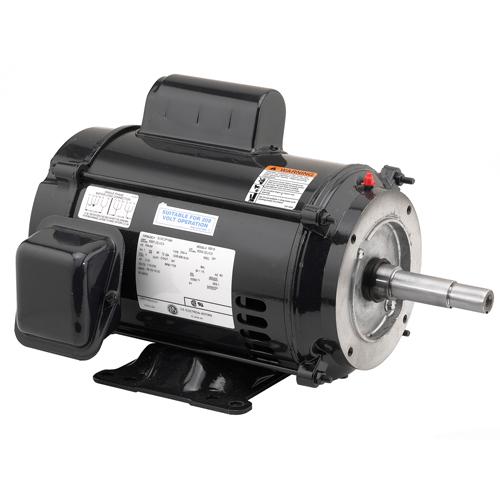

U.S. Motors US Motors Pump, 1 1/2 HP, 1-Phase, 1750 RPM Motor, EJM154B
- Brand: US Motors
- PartNumber: EJM154B
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 16.0/8.3-8.0 |
| Bearing Protection | Locked Shaft |
| Bearings | Ball |
| Body Dia. | 6.5 in |
| Bolt Circle Dia. | 5 7/8 in |
| Capacitor | 40MFD/370VAC |
| Composition | Rolled Steel |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 37.40 |
| Family Series | US Motors Motors |
| FL Amps | 16.0/8.3-8.0 |
| Frame | 145JM |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Height | 8 1/2 in |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | EJM154B |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CRT1482014J |
| Manufacturer Part Number | EJM154B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CRT1482014J |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 145JM |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | EJM154B |
| Phase | 1 |
| Product Type | Pump, Capacitor Start |
| Rotation | Reversible |
| RPM | 1,750 RPM, 1750 |
| Service Factor | 1.15 |
| Ship Weight | 34 lbs. |
| Speed (RPM) | 1750 |
| Usable @ 208V | Yes |
| Voltage | 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
| Weight | 32 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466617 | 485.95 | 1 | In Stock | | US Motors | | 485.95 @ 1 |
 | emotorpro.com | EJM154B | 519.46 | 1 | In Stock | | U.S. Motors | 34.0 | 519.46 @ 1 |
 | motorsandcontrol.com | EJM154B | 530.1 | 1 | In Stock | | US Motors (Nidec) | 37.4 | 530.1 @ 1 |
 | National Supply Network | B466617 | 543.44 | 1 | In Stock | | US MOTORS | | 543.44 @ 1 |
 | Galco | EJM154B-USM | 599.88 | 1 | In Stock | | US Motors | 32.0 | 599.88 @ 1 |
 | Zoro | G4404829 | 599.99 | 1 | In Stock | | U.S. Motors | 34.0 | 599.99 @ 1 |
| motionindustries.com | 04385446 | 765.92 | 1 | In Stock | | US Motors (Nidec) | | 765.92 @ 1 |
