- mpnFD12AM2P4ZRS
- brandname: US Motors
- manufacturername: US Motors

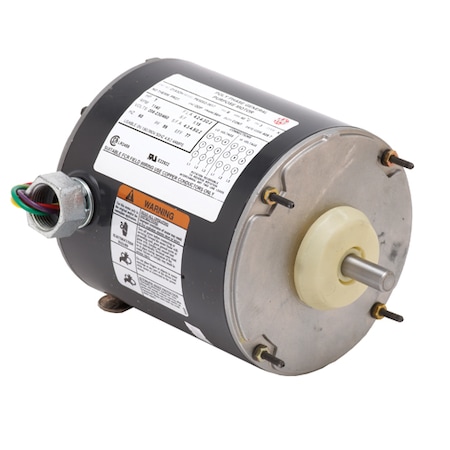

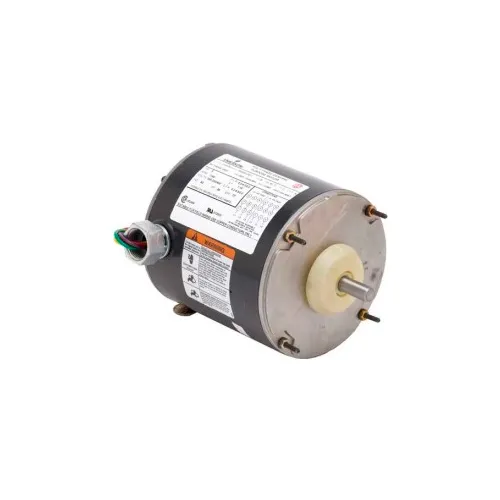

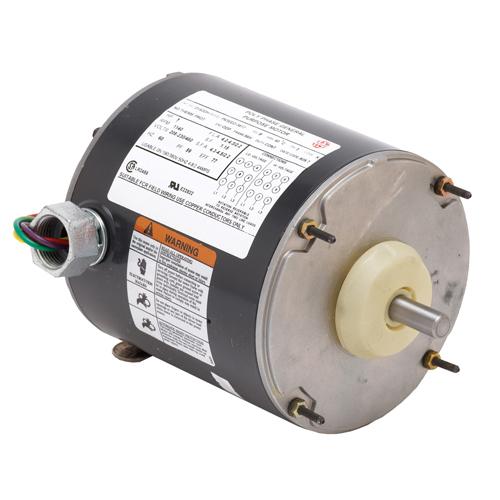

U.S. Motors US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12AM2P4ZRS
- Brand: U.S. Motors
- PartNumber: FD12AM2P4ZRS
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.0/2.5 |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor | 12.5MFD/370VAC |
| Capacitor Required | Yes |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 77.3% |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 21.23 |
| Family Series | US Motors Motors |
| FL Amps | 5.0/2.5 |
| FL Efficiency | 77.3 |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Full Load Amps | 5.0/2.5 |
| Full Load Amps @ 50Hz | 5.0/2.5 |
| Gross Weight | 19.3 lbs |
| Hertz | 50, 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| HP @ 50Hz | 1/2 |
| Hz | 50/60, 60/50 |
| Insulation Class | B |
| Item | Motor |
| Item - Farm Duty Motors | Agricultural Fan Motor |
| Item Number | FD12AM2P4ZRS |
| Kilowatts | 0.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | K055BSY6215022B |
| Manufacturer Part Number | FD12AM2P4ZRS |
| Maximum Ambient Tempera. | 40? C |
| Model Number | K055BSY6215022B |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Air-Ov. |
| Motor Mounting Type | Band |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Mounting | Band, Cradle |
| Mounting Type | Band |
| NEMA Frame | 48YZ |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | Manual |
| Part Number | FD12AM2P4ZRS |
| Phase | 1 |
| Product Type | General Purpose, PSC (P. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM @ 50Hz | 1725/1425 |
| Service Factor | 1.00 |
| Service Factor @ 50Hz | 1 |
| Ship Weight | 19 lbs. |
| Speed (RPM) | 1725 |
| Thermal Protection | Manual |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Voltage @ 50Hz | 115/230V |
| Volts | 115, 230 |
| Weight | 19.3 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467344 | 371.95 | 1 | In Stock | | US Motors | | 371.95 @ 1 |
 | Zoro | G0407773 | 371.99 | 1 | In Stock | | U.S. Motors | 19.0 | 371.99 @ 1 |
 | emotorpro.com | FD12AM2P4ZRS | 416.0 | 1 | In Stock | | U.S. Motors | 19.0 | 416.0 @ 1 |
 | National Supply Network | B467344 | 419.14 | 1 | In Stock | | US MOTORS | | 419.14 @ 1 |
 | motorsandcontrol.com | FD12AM2P4ZRS | 472.01 | 1 | In Stock | | US Motors (Nidec) | 21.23 | 472.01 @ 1 |
 | Galco | FD12AM2P4ZRS-USM | 483.26 | 1 | In Stock | | US Motors | 19.3 | 483.26 @ 1 |
| motionindustries.com | 02898704 | 618.53 | 1 | In Stock | | US Motors (Nidec) | | 618.53 @ 1 |
