- mpnFD2CA1P14
- brandname: US Motors
- manufacturername: US Motors

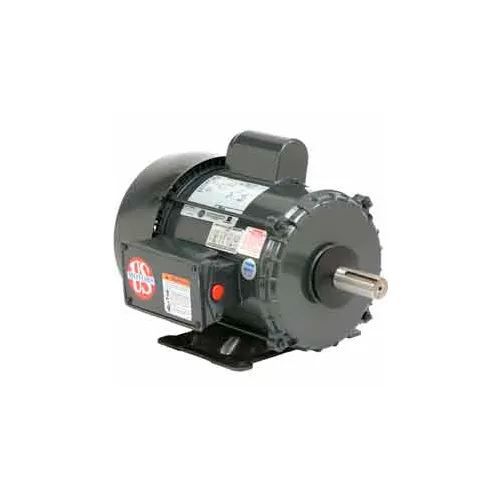

U.S. Motors US Motors Farm Duty, 2 HP, 1-Phase, 3450 RPM Motor, FD2CA1P14
- Brand: U.S. Motors
- PartNumber: FD2CA1P14
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 22.2/11.1 |
| Bearings | Ball |
| Capacitor Required | Yes |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Efficiency | 75.5% |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 22.2/11.1 |
| FL Efficiency | 75.5 |
| Frame | 143TZ |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | FD2CA1P14 |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063JCB5266012B |
| Manufacturer Part Number | FD2CA1P14 |
| Maximum Ambient Tempera. | 50? C |
| Model Number | C063JCB5266012B |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Air-Ov. |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Thermal Protection | Auto |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| NEMA Frame | 143TZ |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | FD2CA1P14 |
| Phase | 1 |
| Product Type | Fractional HP (HVAC), C. |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.00 |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0408010 | 535.99 | 1 | In Stock | | U.S. Motors | 32.0 | 535.99 @ 1 |
 | motorsandcontrol.com | FD2CA1P14 | 536.13 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 536.13 @ 1 |
 | Global Industrial | WBB467425 | 568.0 | 1 | In Stock | 17 | US Motors | | 568.0 @ 1 |
 | emotorpro.com | FD2CA1P14 | 588.53 | 1 | In Stock | | U.S. Motors | 32.0 | 588.53 @ 1 |
| Applied Industrial | 102091147 | 595.56 | 1 | In Stock | | U.S. Motors | | 595.56 @ 1 |
 | National Supply Network | B467425 | 634.79 | 1 | In Stock | | US MOTORS | | 634.79 @ 1 |
 | Galco | FD2CA1P14-USM | 698.66 | 1 | In Stock | | US Motors | 32.0 | 698.66 @ 1 |
| motionindustries.com | 04385506 | 892.06 | 1 | In Stock | | US Motors (Nidec) | | 892.06 @ 1 |
