- mpnFDU2CM2P18Z
- brandname: US Motors
- manufacturername: US Motors

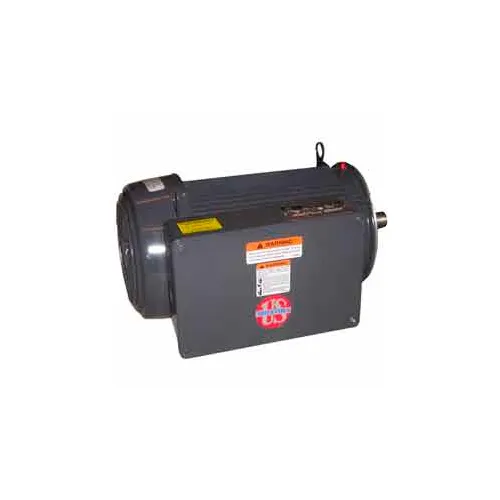

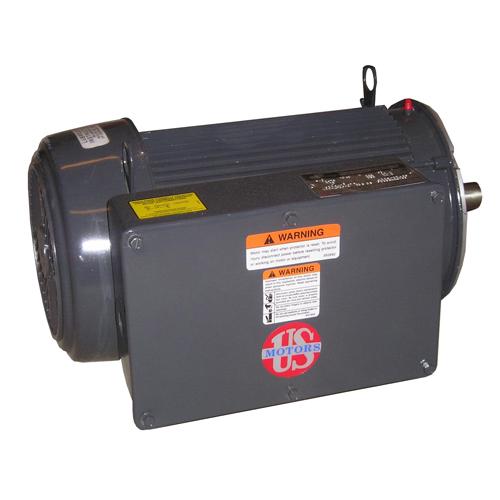

US Motors FDU2CM2P18Z
- PartNumber: FDU2CM2P18Z
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 25.6/12.8 |
| Bearings | Ball |
| Capacitor Required | Yes |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | Standard |
| Duty | CONT |
| Duty Cycle | Continuous |
| Efficiency | 71.9% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 72.60 |
| Family Series | US Motors Motors |
| FL Amps | 25.6/12.8 |
| FL Efficiency | 71.9 |
| Frame | 182TZ |
| Frequency | 60 Hz |
| Full Load Amps | 25.6/12.8 |
| Gross Weight | 66 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor |
| Item Number | FDU2CM2P18Z |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | J499 |
| Manufacturer Part Number | FDU2CM2P18Z |
| Maximum Ambient Tempera. | 40? C |
| Model Number | J499 |
| Motor Bearings | Ball |
| Motor Enclosure Design | L |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Manual |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| NEMA Frame | 182TZ |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 0.719 |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 16.8 |
| Part Number | FDU2CM2P18Z |
| Phase | 1, 1 ph |
| Product Type | General Purpose, Capaci. |
| RPM | 1,740 RPM, 1740 |
| RPM Range | 1740 RPM |
| Service Factor | 1.15 |
| Ship Weight | 66 lbs. |
| Speed (RPM) | 1740 |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0408239 | 567.99 | 1 | In Stock | | U.S. Motors | 66.0 | 567.99 @ 1 |
 | Global Industrial | WBB467433 | 568.0 | 1 | In Stock | | US Motors | | 568.0 @ 1 |
 | emotorpro.com | FDU2CM2P18Z | 587.76 | 1 | In Stock | | U.S. Motors | 66.0 | 587.76 @ 1 |
 | National Supply Network | B467433 | 634.79 | 1 | In Stock | | US MOTORS | | 634.79 @ 1 |
 | motorsandcontrol.com | FDU2CM2P18Z | 643.2 | 1 | In Stock | | US Motors (Nidec) | 72.6 | 643.2 @ 1 |
 | Galco | FDU2CM2P18Z-USM | 838.2 | 1 | In Stock | | US Motors | 66.0 | 838.2 @ 1 |
| motionindustries.com | 02558035 | 1070.21 | 1 | In Stock | | US Motors (Nidec) | | 1070.21 @ 1 |
