- mpnFDU3CM2K18C
- brandname: US Motors
- manufacturername: US Motors

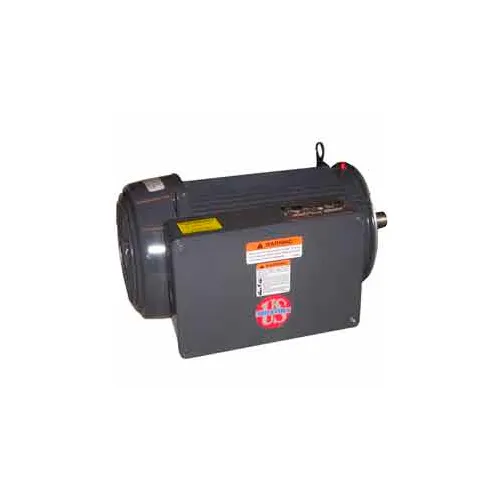

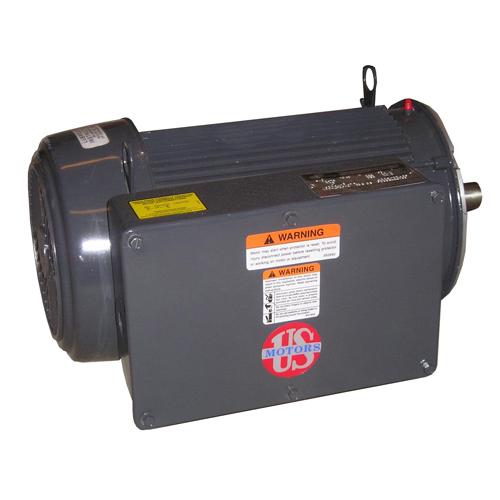

US Motors FDU3CM2K18C
- PartNumber: FDU3CM2K18C
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 16.4/17.0 |
| Bearings | Ball |
| Capacitor Required | Yes |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Duty | CONT |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 85.80 |
| Family Series | US Motors Motors |
| FL Amps | 16.4/17.0 |
| Frame | 184TC |
| Frequency | 60 Hz |
| Full Load Amps | 16.4/17.0 A |
| Gross Weight | 78 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor |
| Item Number | FDU3CM2K18C |
| Kilowatts | 2.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | AT08 |
| Manufacturer Part Number | FDU3CM2K18C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | AT08 |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Manual |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| NEMA Frame | 184TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 18.6 |
| Part Number | FDU3CM2K18C |
| Phase | 1, 1 ph |
| Product Type | General Purpose, Capaci. |
| RPM | 1760, 1,760 RPM |
| RPM Range | 1760 RPM |
| Service Factor | 1.15 |
| Ship Weight | 78 lbs. |
| Speed (RPM) | 1760 |
| Usable @ 208V | Yes |
| Voltage | 208-230 V, 208V, 230V |
| Voltage (AC) | 208 VAC, 230 VAC |
| Volts | 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467511 | 629.0 | 1 | In Stock | | US Motors | | 629.0 @ 1 |
 | emotorpro.com | FDU3CM2K18C | 648.59 | 1 | In Stock | | U.S. Motors | 78.0 | 648.59 @ 1 |
 | National Supply Network | B467511 | 698.59 | 1 | In Stock | | US MOTORS | | 698.59 @ 1 |
 | Zoro | G0408464 | 976.99 | 1 | In Stock | | U.S. Motors | 78.0 | 976.99 @ 1 |
 | motorsandcontrol.com | FDU3CM2K18C | 986.3 | 1 | In Stock | | US Motors (Nidec) | 85.8 | 986.3 @ 1 |
| motionindustries.com | 02558025 | 1110.85 | 1 | In Stock | | US Motors (Nidec) | | 1110.85 @ 1 |
 | Galco | FDU3CM2K18C-USM | 1285.29 | 1 | In Stock | | US Motors | 78.0 | 1285.29 @ 1 |
