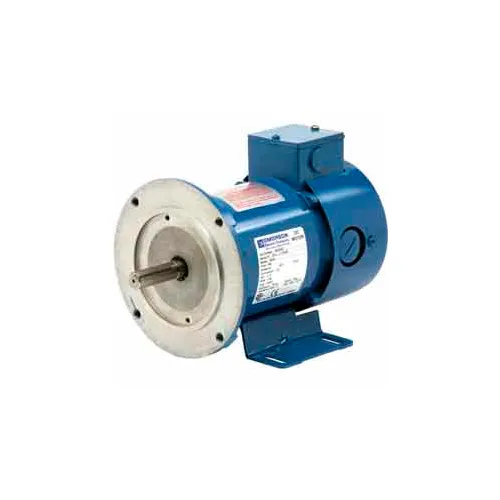

US Motors G641

B0847TVFR9

1/2 HP

1/2 HPzoom

Attributes

Key Value
Armature Current5 A
Armature Voltage180 V
Base RPM1,750 RPM
Bolt Circle Dia.5 15/16 in
Brush TypeCarbon
ConstructionRolled Steel
Country of Origin (subj.France
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureTE
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight29.70
Family SeriesUS Motors Motors
FL Amps5
Frame56C
Full Load Amps10.0
Full Load Torque25.2 in-lb
Gross Weight24 lbs
Horsepower1/2 hp
HP1/4, 0.5
Ins. ClassF
ItemDC Permanent Magnet Mot.
Item NumberG641
Length Less Shaft11 1/4 in
ManufacturerUS Motors (Nidec), US M.
Manufacturer Part NumberG641
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignPermanent Magnet DC
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Mounting TypeRigid Base
Motor Service Factor1
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeC-Face Footed
Nameplate RPM2,500
Net Weight0 lbs
Nominal Efficiency83.4 %
Number of Speeds1
Overall Length13 5/16 in
Part NumberG641
Product TypeGeneral Purpose
Removable BaseYes
RotationCW/CCW
RPM Range1,701-1,800
Shaft Dia.5/8 in
Shaft Length2 1/16 in
Speed (RPM)1750
StandardsUL, CSA
Stud Quantity4
Voltage90V, 90V DC
Voltage Compatibility180V DC
Weight37 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8041574551.01In StockU.S. Motors23.0551.0 @ 1
thumbzoomGlobal IndustrialWBB467424763.01In StockUS Motors763.0 @ 1
thumbzoommotorsandcontrol.comG641811.71In StockUS Motors (Nidec)29.7811.7 @ 1
thumbzoomGalcoG641-USM833.111In StockUS Motors24.0833.11 @ 1
thumbzoomNational Supply NetworkB467424849.291In StockUS MOTORS849.29 @ 1
