JJ2002-2

B01N2A25L9

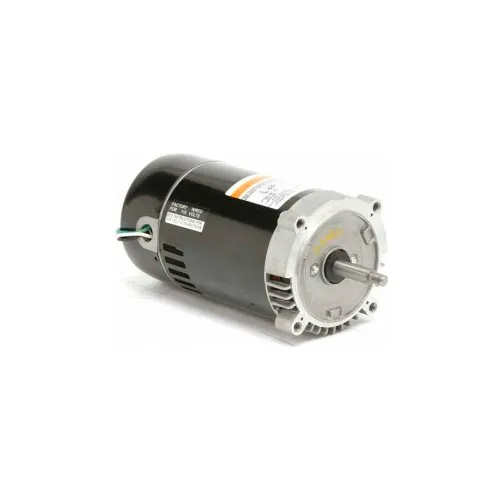

US Motors JJ2002-2

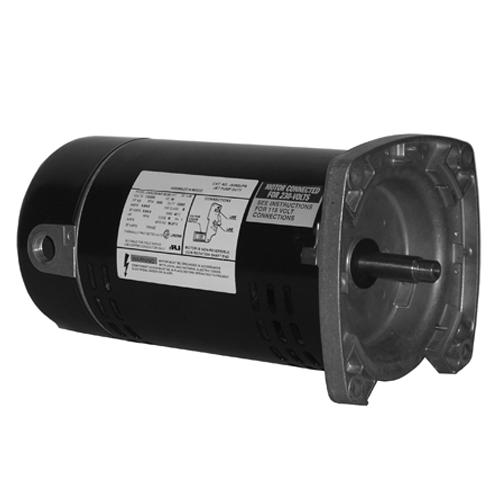

US Motors JJ2002-2zoom

Attributes

Key Value
Amps8.6
BearingsBall
Body Dia.5.6 in
Bolt Circle Dia.5 7/8 in
Capacitor25MFD/370VAC
ConstructionRolled Steel
Country of Origin (subj.Mexico
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureOpen
Enclosure TypeODP (Open Dripproof)
Estimated Weight30.14
FL Amps8.6
Frame56J
Full Load Amps8.6 A
Gross Weight27.4 lbs
Hertz60
HP2
Hz60
Ins. ClassB
Insulation ClassB
Inverter RatedNo
ItemWater System Pump Motors
Length Less Shaft11 15/16 in
ManufacturerUS Motors (Nidec)
Manufacturer Model #T055CMD1399013J
Max. Ambient Temp.104 Degrees F
Max. SF Amps10.0 A
Maximum Ambient Tempera.40? C
Motor ApplicationWater Compressor
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeJ Face
Motor Service Factor1.2
Motor Shaft DesignThreaded
Motor Shaft RotationCCW
Motor Thermal ProtectionAuto
MountingFoot Mount, Face
Nameplate RPM3,450
NEMA Design56J
No. of Speeds1
Nominal Efficiency84.8 %
Number of Speeds1
Overall Length14 1/2 in
Part NumberJJ2002-2
Phase1, Single
Product TypePump, Capacitor Start
RotationCCW Shaft End
RPM3450
RPM Range3,001-3,600
Service Factor1.25
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft MaterialStainless Steel
Ship Weight27 lbs.
Speed (RPM)3450
StandardsCSA Certified, UL Listed
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage230V AC, 230V
Voltage Compatibility115/200-230V AC, 115/20.
Volts230
Weight27.4 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotorsandcontrol.comJJ2002-2396.921In StockUS Motors (Nidec)30.14396.92 @ 1
thumbzoomGlobal IndustrialWBB465368396.951In Stock17US Motors396.95 @ 1
thumbzoomZoroG1930456397.151In StockU.S. Motors27.4397.15 @ 1
thumbzoomGalcoJJ2002-2-USM407.381In StockUS Motors27.4407.38 @ 1
thumbzoomemotorpro.comJJ2002-2418.61In StockU.S. Motors27.0418.6 @ 1
thumbzoomNational Supply NetworkB465368445.541In StockUS MOTORS445.54 @ 1
motionindustries.com04385184520.151In StockUS Motors (Nidec)520.15 @ 1
