- mpnU13T2BCR
- brandname: US Motors
- manufacturername: US Motors

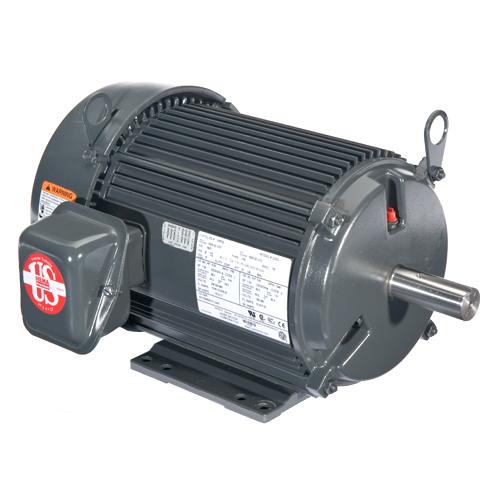

US Motors U13T2BCR
- Brand: Emerson
- PartNumber: U13T2BCR
- Binding: Kitchen
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 1.6/0.8 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 75.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 24.20 |
| Family Series | US Motors Motors |
| FL Amps | 1.6/0.8 |
| FL Efficiency | 75.5 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 22 lbs |
| Hertz | 60 |
| Horsepower | 1/3 hp |
| HP | 0.33, 1/3 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item | Motor,1/3HP,1770RPM,230. |
| Item Number | U13T2BCR |
| Kilowatts | 0.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | BG74 |
| Manufacturer Part Number | U13T2BCR |
| Maximum Ambient Tempera. | 40? C |
| Model Number | BG74 |
| Mounting | Footless, Face |
| Mounting Type | Footless |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | U13T2BCR |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1770, 1,770 RPM |
| Service Factor | 1.15 |
| Ship Weight | 22 lbs. |
| Speed (RPM) | 1770 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6164664 | 256.0 | 1 | In Stock | | U.S. Motors | 22.0 | 256.0 @ 1 |
 | Global Industrial | WBB466054 | 270.95 | 1 | In Stock | 17 | US Motors | | 270.95 @ 1 |
 | emotorpro.com | U13T2BCR | 301.46 | 1 | In Stock | | U.S. Motors | 22.0 | 301.46 @ 1 |
 | National Supply Network | B466054 | 306.94 | 1 | In Stock | | US MOTORS | | 306.94 @ 1 |
 | motorsandcontrol.com | U13T2BCR | 307.56 | 1 | In Stock | | US Motors (Nidec) | 24.2 | 307.56 @ 1 |
 | Galco | U13T2BCR-USM | 307.57 | 1 | In Stock | | US Motors | 22.0 | 307.57 @ 1 |
| motionindustries.com | 03749114 | 651.15 | 1 | In Stock | | US Motors (Nidec) | | 651.15 @ 1 |
