- mpnU7P1D
- brandname: US Motors
- manufacturername: US Motors

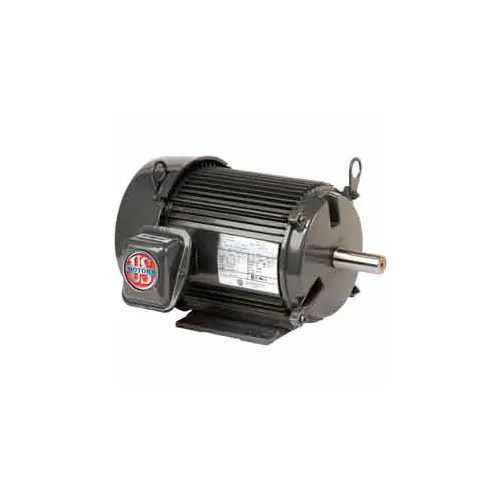

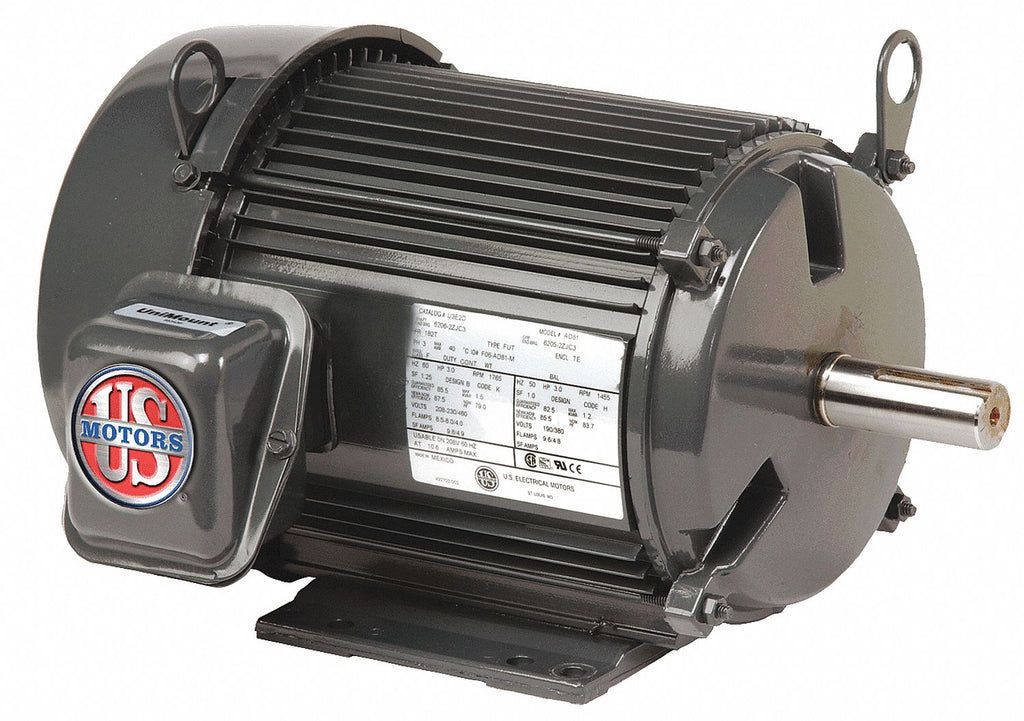

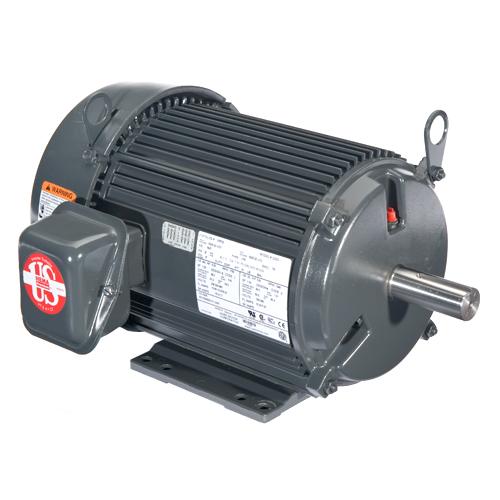

7 1/2 HP
- Brand: US Motors
- PartNumber: U7P1D
- PackageQuantity: 1
- Manufacturer: Nidec Motor Corporation
- Label: Nidec Motor Corporation
Attributes
| Key | Value |
|---|
| AMP | 17.8, 19.9, 8.9 |
| Amps | 19.9-17.8/8.9 |
| Application | General Purpose |
| Bearings | Ball |
| Brand | U.s. Motors |
| CE Approved | Yes |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Aluminum |
| Condensing | No |
| Construction | Aluminum |
| CSA Certified | Yes |
| Diameter | 11-33/50 in |
| Drive End Flange Type | Standard |
| Efficiency | 91% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 115.50 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 19.9-17.8/8.9 |
| FL Efficiency | 91 |
| Frame | 213T |
| Frequency | 60 Hz |
| Full Load Current | 19.9-17.8 A, 8.9 A |
| Green Certification or . | NEMA Premium Rated |
| Gross Weight | 105 lbs |
| Height | 15 in |
| Hertz | 50, 60 |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7-1/2, 7.5 |
| Hz | 50/60 |
| Indoor Outdoor | Indoor/Outdoor |
| Insulation Class | F |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Number | U7P1D |
| Kilowatts | 5.6 kW |
| Length | 26-1/2 in |
| Length Less Shaft | 15 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DP49 |
| Manufacturer Part Number | U7P1D |
| Manufacturers Warranty . | 2 yr |
| Material | Cast Aluminum |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DP49 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure | Totally Enclosed Fan-Co. |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Mpn | U7P1D |
| Nameplate RPM | 3,600 |
| NEMA Frame | 213T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 26-1/2 in x 16-1/2 in x. |
| Overall Length | 18 5/8 in |
| Part Number | U7P1D |
| Phase | 3, Three Phase |
| Power Source | Electric |
| Product Type | Motor, General Purpose,. |
| Rotation | Reversible |
| RPM | 3530, 3,530 RPM |
| RPM Range | 1400 and Above, 3,001-3. |
| Service Factor | 1.25 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3-19/50 in, 3 3/8 in |
| Shaft Size | 1-3/8 in |
| Ship Weight | 105 lbs. |
| SKU | ZO-G4622037 |
| Speed (RPM) | 3530 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMU7P1D, General Purpo. |
| UL Listed | No |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460, 190/380V. |
| Weight | 105 |
| Width | 16-1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB466448 | 883.0 | 1 | In Stock | | US Motors | | 883.0 @ 1 |
 | emotorpro.com | U7P1D | 939.45 | 1 | In Stock | | U.S. Motors | 105.0 | 939.45 @ 1 |
 | Galco | U7P1D-USM | 960.72 | 1 | In Stock | | US Motors | 105.0 | 960.72 @ 1 |
 | National Supply Network | B466448 | 981.29 | 1 | In Stock | | US MOTORS | | 981.29 @ 1 |
 | motorsandcontrol.com | U7P1D | 990.28 | 1 | In Stock | | US Motors (Nidec) | 115.5 | 990.28 @ 1 |
 | sustainablesupply.com | C1549361 | 1032.36 | 1 | In Stock | | US Motors | 110.0 | 1032.36 @ 1 |
 | Zoro | G4622037 | 1206.15 | 1 | In Stock | | U.S. Motors | 110.0 | 1206.15 @ 1 |
| motionindustries.com | 00545452 | 1405.58 | 1 | In Stock | | US Motors (Nidec) | | 1405.58 @ 1 |
 | simsupply.com | ZO-G4622037 | 1469.72 | 1 | In Stock | | U.s. Motors | | 1469.72 @ 1 |
| ferguson.com | 9581121 | 1748.76 | 1 | In Stock | | US Motors | | 1748.76 @ 1 |
