- mpnUN1T3BC
- brandname: US Motors
- manufacturername: US Motors

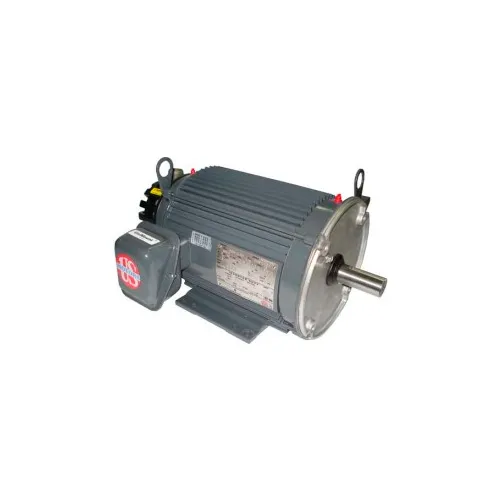

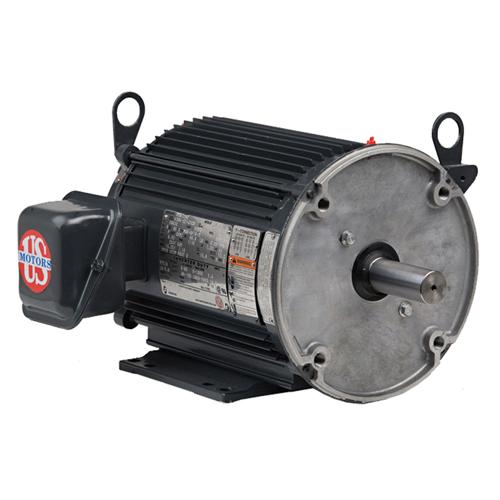

U.S. Motors US Motors ACCU-Torq Vector Duty, 1 HP, 3-Phase, 1150 RPM Motor, UN1T3BC
- Brand: U.S. Motors
- PartNumber: UN1T3BC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 3.7/1.8 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Efficiency | 80% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 45.10 |
| Family Series | US Motors Motors |
| FL Amps | 3.7/1.8 |
| FL Efficiency | 80 |
| Frame | 145TC, 145 |
| Frequency | 60 Hz |
| Full Load Amps | 3.7/1.8 |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,1HP,1200,230/. |
| Item Number | UN1T3BC |
| Kilowatts | 0.7 kW |
| Length Less Shaft | 12 9/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD94 |
| Manufacturer Part Number | UN1T3BC |
| Manufacturers Warranty . | 3 yr |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD94 |
| Motor Application | Cranes and Hoists, Indu. |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non-Ve. |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Horizontal Footed |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,150 rpm |
| NEMA Design | A |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| Nominal Efficiency | 80 % |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 14 9/16 in |
| Part Number | UN1T3BC |
| Phase | 3, Three |
| Product Type | 3 Phase, General Purpose |
| Rotation | Reversible |
| RPM | 1150, 1,150 rpm |
| Service Factor | 1.00 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 in |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 1150 |
| Standards | CSA Certified, UR |
| Voltage | 230V, 460V, 230/460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0393353 | 454.99 | 1 | In Stock | | U.S. Motors | 35.0 | 454.99 @ 1 |
 | Global Industrial | WBB467515 | 505.0 | 1 | In Stock | 17 | US Motors | | 505.0 @ 1 |
 | emotorpro.com | UN1T3BC | 548.05 | 1 | In Stock | | U.S. Motors | 35.0 | 548.05 @ 1 |
 | National Supply Network | B467515 | 565.49 | 1 | In Stock | | US MOTORS | | 565.49 @ 1 |
 | motorsandcontrol.com | UN1T3BC | 577.05 | 1 | In Stock | | US Motors (Nidec) | 45.1 | 577.05 @ 1 |
 | Galco | UN1T3BC-USM | 577.06 | 1 | In Stock | | US Motors | 35.0 | 577.06 @ 1 |
| motionindustries.com | 04385825 | 1062.5 | 1 | In Stock | | US Motors (Nidec) | | 1062.5 @ 1 |
