- mpnUN2T2GC
- brandname: US Motors
- manufacturername: US Motors

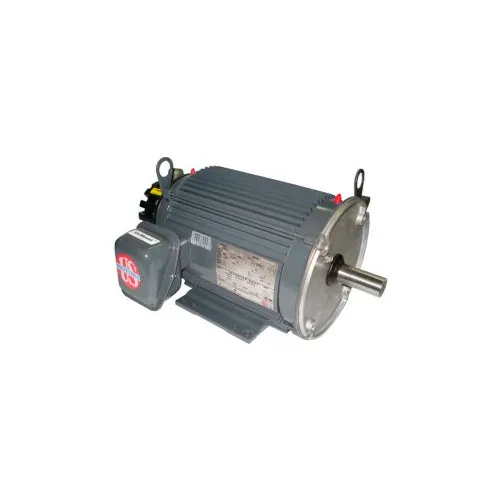

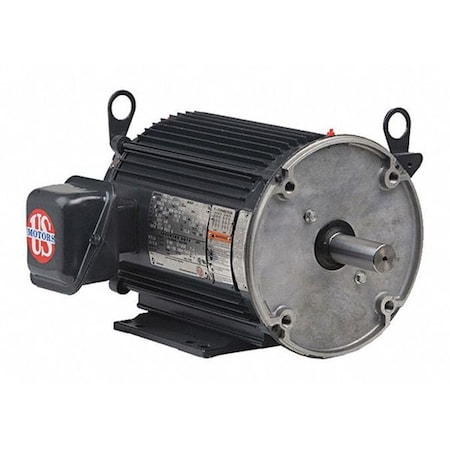

U.S. Motors US Motors ACCU-Torq Vector Duty, 2 HP, 3-Phase, 1745 RPM Motor, UN2T2GC
- Brand: U.S. Motors
- PartNumber: UN2T2GC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Base Type | Removable |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Non-Ve. |
| Encoder Acceptable | Yes |
| Estimated Weight | 59.40 |
| Family Series | US Motors Motors |
| FL Amps | 2.2 |
| FL Efficiency | 86.5 |
| Frame | 145TC, 145 |
| Frequency | 60 Hz |
| Full Load Amps | 2.2 |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Includes | D-Flange Convertible Kit |
| Ins. Class | F |
| Item | Vector Motor |
| Item Number | UN2T2GC |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 12 7/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Part Number | UN2T2GC |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 104 Degrees F, 104 Deg. |
| Max. Operating Frequency | 60 Hz |
| Max. Speed | 1, 745 RPM |
| Model Number | FD98 |
| Motor Application | Crane, Power Tool, Cran. |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,745 |
| NEMA Design | A |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 86.5 % |
| Nominal Voltage | 575 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 12 9/16 in |
| Part Number | UN2T2GC |
| Phase | 3, Three |
| Product Type | General Purpose |
| RPM | 1,745 RPM |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/8 in |
| Speed (RPM) | 1745 |
| Speed Range | 5000:1 |
| Torque | 6 ft-lb |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 575V AC, 575V |
| Voltage (AC) | 575 VAC |
| Voltage Compatibility | 575V AC |
| Weight | 35 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467517 | 563.0 | 1 | In Stock | 17 | US Motors | | 563.0 @ 1 |
 | Zoro | G1933588 | 589.99 | 1 | In Stock | | U.S. Motors | 35.0 | 589.99 @ 1 |
 | National Supply Network | B467517 | 627.09 | 1 | In Stock | | US MOTORS | | 627.09 @ 1 |
 | Galco | UN2T2GC-USM | 642.23 | 1 | In Stock | | US Motors | 35.0 | 642.23 @ 1 |
 | motorsandcontrol.com | UN2T2GC | 642.23 | 1 | In Stock | | US Motors (Nidec) | 59.4 | 642.23 @ 1 |
| Grainger | 56JA99 | 1045.1 | 1 | In Stock | | U.S. MOTORS | 35.0 | 1045.1 @ 1 |
| motionindustries.com | 04385826 | 1359.66 | 1 | In Stock | | US Motors (Nidec) | | 1359.66 @ 1 |
