WEG 02036ET3E256JP-W22

B007PB19LQ

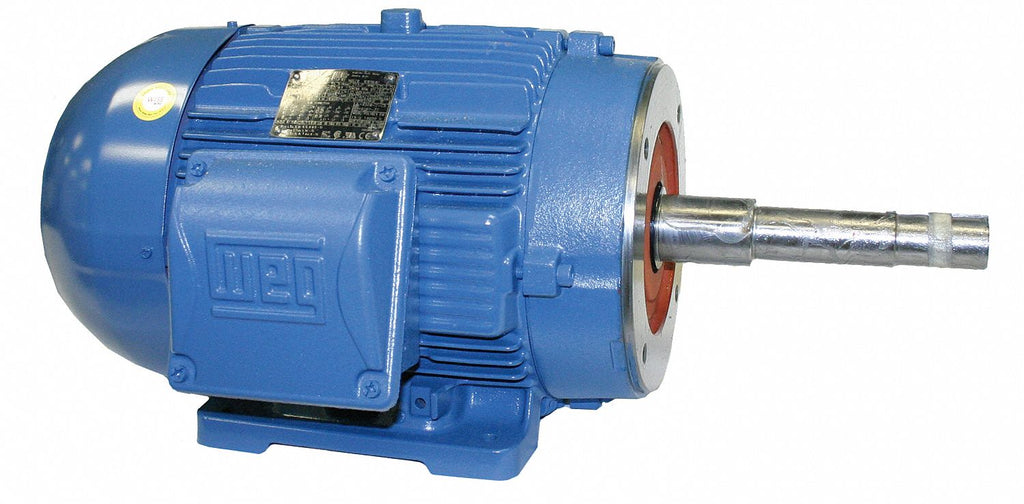

WEG 02036ET3E256JP-W22 JP Type TEFC NEMA Premium Close Coupled Pump Motor, Cast Iron Frame, 20 HP, 3-Phase, 3520 RPM, 208-230/460 V, 50/60 Hz, Frame 254/6JP

WEG 02036ET3E256JP-W22 JP Type TEFC NEMA Premium Close Coupled Pump Motor, Cast Iron Frame, 20 HP, 3-Phase, 3520 RPM, 208-230/460 V, 50/60 Hz, Frame 254/6JPzoom

Attributes

Key Value
Amperage Rating51.3 to 46.4/23.2 A
ApplicationIndustrial and Commerci.
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.12.9 in
Bolt Circle Dia.7 1/4 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 20HP 2P 254/6JP W.
Dimensions29.106 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %91 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight310.00
Family SeriesWEG Electric Motors
FL Amps23.2
FL Efficiency91.0
FlangesFlange C
Frame256JP, 254JP, 254/6JP
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps51.3-46.4/23.2
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height12 15/16 in
Hertz60
Horsepower20 hp
HP20
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number02036ET3E256JP-W22
Length Less Shaft20 15/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number02036ET3E256JP-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:02036ET3E256JP-W22
Model11676040
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignJP Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3,520
NEMA DesignB
NEMA Frame256JP
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency91 %
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating20 hp
Overall Length29 1/8 in
Part Number02036ET3E256JP-W22
Phase3, 3 ph, Three
Product TypePump
Promotion RestrictionNot eligible for promot.
Regreasable BearingsRegreasable Bearings
Replaces02036EP3E256JP-W22
RotationCW/CCW
RPM3600, 3520, 3,600 RPM
RPM Range3,001-3,600
Service Factor1.25
Shaft Dia.1 1/4 in
Shaft Length8 1/8 in
Shaft MaterialCarbon Steel
Shaft Size1-1/4 in Dia x 7-7/8 in.
Speed3520 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327667587
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 230/46.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight313.680000, 290 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com02036ET3E256JP-W221693.01In StockWEG290.01693.0 @ 1
thumbzoomWalker Industrial02036ET3E256JP-W222263.51In Stock17WEG2263.5 @ 1
thumbzoommotorsandcontrol.com02036ET3E256JP-W222263.51In StockWEG Electric310.02263.5 @ 1
thumbzoomMRO Supply13137542309.431In StockWEG2309.43 @ 1
thumbzoomRadwell02036ET3E256JP-W222382.81In StockWEG15.02382.8 @ 1
thumbzoomGalco02036ET3E256JP-W22-WEG2478.791In StockWEG Electric2478.79 @ 1
thumbzoomindustrialrefrigerationparts.com02036ET3E256JP-W222556.771In StockWEG313.682556.77 @ 1
kscdirect.comWEG 02036ET3E256JP-W222568.911In StockWEG ELECTRIC CORP2568.91 @ 1
thumbzoomZoroG41007562624.481In Stock26Weg315.02624.48 @ 1
thumbzoomDealers Electric02036ET3E256JP-W222755.471In StockWeg310.02755.47 @ 1
thumbzoomPurvis02036ET3E256JP-W222758.451In StockWEG2758.45 @ 1
thumbzoomNational Supply NetworkB8814163799.591In StockWeg Electric Motors3799.59 @ 1
motionindustries.com047020103871.181In StockWEG Electric Corporation3871.18 @ 1
thumbzoomsustainablesupply.comC14928264203.11In StockWEG315.04203.1 @ 1
thumbzoomRaptor SuppliesAE8UEZ5289.0209191In StockWEG5289.020919 @ 1
