Weg Electric 12518ET3H444TC-W22

B07BQDRCYG

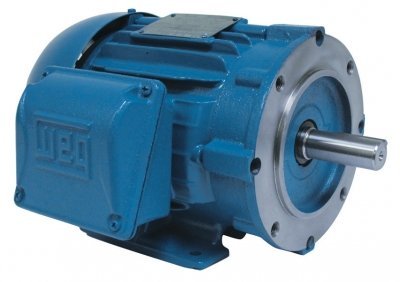

WEG Electric, 12518ET3H444TC-W22, 125HP, 1800RPM, 3PH, 575V, 444/5TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.

WEG Electric, 12518ET3H444TC-W22, 125HP, 1800RPM, 3PH, 575V, 444/5TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating111 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 125HP 4P 444/5TC .
Dimensions45.157 in L
Drive End Flange TypeC-Face
Efficiency %95.4 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight1754.00
Family SeriesWEG Electric Motors
FL Amps111
FL Efficiency95.4
FlangesFlange C
Frame444/5TC, 444TC, 445TC
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower125 hp
HP125
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number12518ET3H444TC-W22
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number12518ET3H444TC-W22
MaterialCast Iron
MFG Part #:12518ET3H444TC-W22
Model12407896
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
NEMA Frame444/5TC
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Poles4
Number of Speeds1
Output Rating125 hp
Part Number12518ET3H444TC-W22
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15
Speed1780 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7892304605554
Voltage575 V, 575V, 575
Voltage (AC)575 VAC
Volts575
Weight1857.620000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial12518ET3H444TC-W2212163.51In Stock17WEG12163.5 @ 1
thumbzoommotorsandcontrol.com12518ET3H444TC-W2212163.51In StockWEG Electric1754.012163.5 @ 1
kscdirect.comWEG 12518ET3H444TC-W2212454.991In StockWEG ELECTRIC CORP12454.99 @ 1
thumbzoomindustrialrefrigerationparts.com12518ET3H444TC-W2213289.811In StockWEG1857.6213289.81 @ 1
thumbzoomGalco12518ET3H444TC-W22-WEG13320.391In StockWEG Electric13320.39 @ 1
thumbzoomRadwell12518ET3H444TC-W2214550.01In StockWEG14550.0 @ 1
thumbzoomDealers Electric12518ET3H444TC-W2214807.191In StockWeg1754.014807.19 @ 1
thumbzoomPurvis12518ET3H444TC-W2214823.251In StockWEG14823.25 @ 1
thumbzoomvfds.com12518ET3H444TC-W2216218.01In StockWEG16218.0 @ 1
