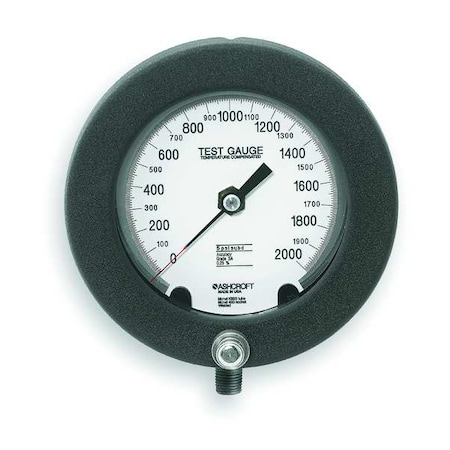

Ashcroft 451082PS02L2MC4 - D0813 Pressure Gauge 0 to 2000 psi 4-1/2In

Ashcroft 451082PS02L2MC4 - D0813 Pressure Gauge 0 to 2000 psi 4-1/2Inzoom

Attributes

Key Value
Accuracy GradeASME B40.1 Grade 3A
Accuracy ScaleFull Scale
Adjustable PointerNo
Ambient Operating Tempe.-20 Degrees to 200 Deg.
Basic Gauge Case Materi.Aluminum
Basic Gauge Lens Materi.Glass
Basic Gauge Sensor Mate.Monel
Basic Gauge Socket Mate.Monel
Basic Gauge Wetted PartsMonel
Bezel MaterialHinged Steel
Blowout Safety BackNo
Bolt Circle Diameter5.375 in
Burst Pressure21,000 psi
Calibration Certificate.Yes, NIST with Data
Case ColorBlack
Case ConstructionSolid Front
Case Depth2.875 in
Case Diameter6.093 in
Case FinishEpoxy Coated
Cleaned for Oxygen Serv.No
Connection LocationBottom
Connection Size1/4 in NPT
Country of Origin (subj.United States
Dial ColorWhite
Dial Face MaterialAluminum
Differentiator (HIDDEN)451082PS02L2MC4 NIST wi.
For Panel Cut-Out Size4.875 in
Freeze Resistant Moveme.No
Gauge Accuracy+/-0.25%
Gauge Accuracy GradeGrade 3A - Test
Gauge ApplicationTest
Gauge Case ColorBlack
Gauge Case MaterialAluminum
Gauge Connection Locati.Bottom
Gauge Connection Size1/4 in
Gauge Connection TypeMNPT
Gauge Lens MaterialGlass
Gauge Mounting TypeFlush-Mount
Gauge Nominal Dial Size4 1/2 in
Gauge Panel MountableNo
Gauge Primary Range Num.200
Gauge Primary Range Sma.10
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 2000
Gauge Sensor MaterialMonel K
Gauge Socket MaterialMonel 400
Gauge Wetted PartsMonel
Graduations200 psi
Hazardous Location Rati.Not Rated
Includes Calibration Ce.NIST with Data
Includes Mounting Hardw.No
IP/NEMA RatingNot Rated
ItemTest Pressure Gauge
Lens MaterialGlass
Liquid FilledNo
Movement Material400 Stainless Steel
Movement TypeRotary
Nominal Dial Size4 1/2 in
Operating Temp. Range-40 Degrees to 150 Deg.
Panel Mount Characteris.(3) Mounting Studs CC T.
Panel-MountableNo
Pointer CharacteristicsKnife-Edge
Pointer ColorBlack with Red Tip
Pointer MaterialAluminum
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeTest Pressure Gauge
Pressure Range TypePressure
Primary Pressure Range0 to 2,000
Primary Pressure Scale .Black
Primary Range0 to 2,000
Primary Scale Minor Gra.10
Primary Scale Numeric I.100
Primary Scale Unitspsi
Primary Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/4 in
Process Connection TypeNPT
Process Temperature Ran.-20 to 250 Degrees F
Range0 to 2000 psi
Removable BezelNo
Scale TypeSingle
Sensor MaterialMonel
Sensor TypeBourdon Tube
Series1082
Smallest Graduation10 psi
Test Pressure Gauge TypeTest Pressure Gauge
With Calibration Certif.With Calibration Certif.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7641103327.01In StockAshcroft4.1327.0 @ 1
thumbzoomsustainablesupply.comC2862665435.951In StockAshcroft4.1435.95 @ 1
thumbzoomStanios Industrial Supply451082PS02L2MC4452.931In Stock27Ashcroft452.93 @ 1
thumbzoomRaptor SuppliesAC3BXM809.631811In StockASHCROFT809.63181 @ 1
