- mpnC14828
- brandname: CLEVELAND
- manufacturername: CLEVELAND

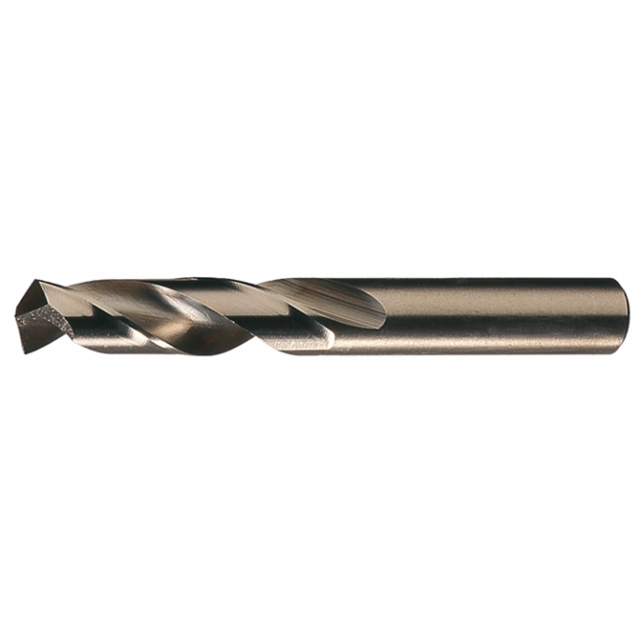

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, 5.5 mm (Pack of 12)
- Brand: CLEVELAND
- PartNumber: C14828
- Size: 5.5 mm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Bit Dia. | 5.5mm |
| Brand | Cleveland |
| Construction: | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 7 |
| Cutting Depth | 28 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.2165 |
| Decimal Equivalent: | 0.2165"/5.50mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Metric: | 5.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Individual, Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5.50 mm |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0448 mm |
| Drill Size - Decimal In. | 0.2165 in |
| Drill Size - Metric | 5.5 mm |
| Drilling Length | 28mm |
| Finish | Straw/Gold Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 28 mm, 28.00 mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Spiral Cut: | RHS/RHC |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Length of Flute: | 1.1024"/28.00mm |
| List Style: | 2133 |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Material: | Cobalt |
| Maximum Drilling Depth | 28.00 mm |
| Measurement System | Metric |
| Mpn | C14828 |
| Number of Flutes | 2 |
| Overall Length | 66.00 mm, 66 mm |
| Overall Length: | 2.5984"/66.00mm |
| Point Angle | 135 deg |
| Point Type | Split |
| Point: | 135? Split |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Series | 2133 |
| Shank Dia. | 5.50 mm |
| Shank Length | 38.00 mm |
| Shank Size | 5.5mm, 5.5 mm Dia x 38 . |
| Shank Size: | 0.2165"/5.50mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Shank: | Straight |
| Sizes Included | 5.50mm |
| SKU | ZO-G3003222 |
| Spiral Direction | Right Hand |
| Standards | DIN 1897 |
| Style | 2133 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Surface Condition: | Straw/Gold Oxide |
| Tool Size | 5.5mm |
| Type | General Purpose Heavy D. |
| UPC | 697334148289 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111113 | 3.59 | 10 | 12 | | Cleveland | | 3.59 @ 12 |
 | Megadepot | C14828 | 3.74 | 1 | 12 | | Cleveland | | 3.74 @ 12 |
 | usmegastore.com | C14828 | 4.5 | 1 | 12 | | Cleveland | | 4.5 @ 12 |
 | sustainablesupply.com | C2974706 | 4.59 | 1 | 12 | | Cleveland | 0.02 | 4.59 @ 12 |
 | Zoro | G3003222 | 5.3 | 1 | 13 | | Cleveland | 0.02 | 5.3 @ 12 |
| Grainger | 439X16 | 5.64 | 1 | 12 | | CLEVELAND | | 5.64 @ 12 |
 | bscsource.com | C14828 | 6.29 | 1 | 12 | | Cleveland | | 6.29 @ 12 |
 | National Supply Network | 86191194 | 7.0025 | 1 | 12 | | Cleveland | | 7.0025 @ 12 |
 | Guardian | 86191194 | 8.13 | 1 | 12 | | Cleveland | | 8.13 @ 12 |
 | simsupply.com | ZO-G3003222 | 12.0 | 1 | 12 | | Cleveland | | 12.0 @ 12 |
