- mpnC14830
- brandname: CLEVELAND
- manufacturername: CLEVELAND

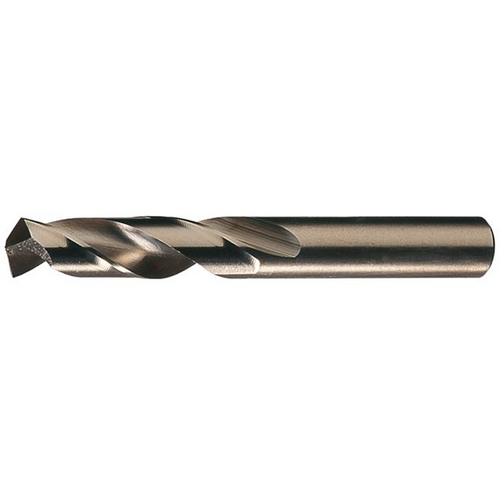

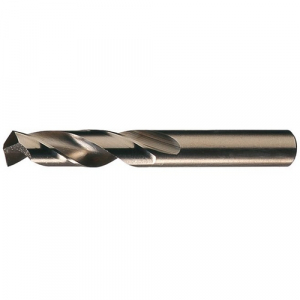

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, 7 mm (Pack of 12)
- Brand: Cleveland
- PartNumber: C14830
- Size: 7 mm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Application | For Drilling Carbon Ste. |
| Bit Dia. | 7.00mm |
| Brand | Cleveland |
| Catalog Page | N/A |
| Construction | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 9 |
| Cutting Depth | 34 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.2756, 0.2756" / 7.00mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 7.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 7.00 mm |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0571 mm |
| Drill Size - Decimal In. | 0.2756 in |
| Drill Size - Metric | 7 mm |
| Drilling Length | 34mm |
| Finish | Straw/Gold Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 34 mm, 34.00 mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 28 Degrees, 28 ? |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Item? | 439X18 |
| Lead Time | Expected to ship in 1-2. |
| Length of Flute | 1.3386" / 34.00mm |
| List Number | 2133 |
| List Style | 2133-TC |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 34.00 mm |
| Measurement System | Metric |
| Mfr. Model? | C14830 |
| Mpn | C14830 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 74 mm, 74.00 mm, 2.9134. |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Cast Iron; Stainless St. |
| Primary Material Applic. | K; M; P, K, M, P |
| Series | 2133 |
| Shank | Straight |
| Shank Dia. | 7.00 mm |
| Shank Length | 40.00 mm |
| Shank Shape | Straight |
| Shank Size | 0.2756" / 7.00mm, 7 mm . |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 7.00mm |
| SKU | ZO-G3003137 |
| Spiral Direction | Right Hand |
| Standards | DIN 1897 |
| Style | 2133 |
| SubCategory | Machining |
| Surface Condition | Straw, Straw / Gold Oxi. |
| Tool Size | 7mm |
| Type | General Purpose Heavy D. |
| UNSPSC | 27112801 |
| UPC | 697334148302 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111115 | 4.88 | 8 | 12 | | Cleveland | | 4.88 @ 12 |
 | Megadepot | C14830 | 5.96 | 1 | 12 | | Cleveland | | 5.96 @ 12 |
 | usmegastore.com | C14830 | 6.0 | 1 | 12 | | Cleveland | | 6.0 @ 12 |
 | sustainablesupply.com | C2766757 | 6.33 | 1 | 12 | | Cleveland | 0.05 | 6.33 @ 12 |
 | Zoro | G3003137 | 7.22 | 1 | 12 | | Cleveland | 0.05 | 7.22 @ 12 |
 | bscsource.com | C14830 | 8.49 | 1 | 12 | | Cleveland | | 8.49 @ 12 |
| Grainger | 439X18 | 8.86 | 1 | 12 | | CLEVELAND | | 8.86 @ 12 |
 | National Supply Network | 86191210 | 9.2125 | 1 | 12 | | Cleveland | | 9.2125 @ 12 |
 | simsupply.com | ZO-G3003137 | 12.83 | 1 | 12 | | Cleveland | | 12.83 @ 12 |
