Dayton 2Z932

B000LDGCJY

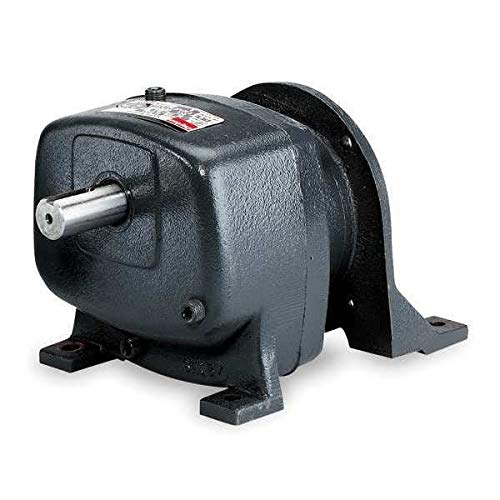

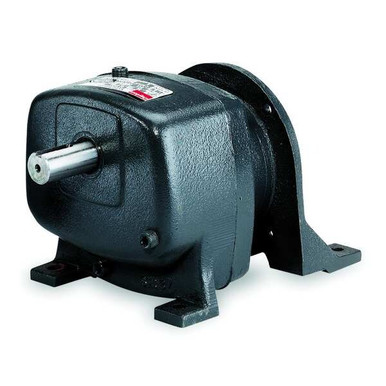

Dayton 2Z932 Reducer,Speed,30 RPM - 2Z932

Dayton 2Z932 Reducer,Speed,30 RPM - 2Z932zoom

Attributes

Key Value
BearingsBall
Bore Dia.5/8"
BrandDayton
Current Stock97
Dimension U1 in
DutyStandard
FinishPowdered Epoxy Paint
Frame56c
Gear MaterialHardened and Ground Ste.
Gear TypeHelical
GearingHelical and Spur
HousingCast Iron
Housing MaterialCast Iron
Input RPM1725, 1750 rpm, 1750
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationKluber Food Grade, Klub.
Max. Input HP0.5, 1/2
Max. Output Torque955 in.-lb.
Max. Torque (In.-Lbs.)955
MountingHorizontal
Mpn2Z932
NEMA/IEC Frame56c
Nominal Output RPM30 RPM, 30
Nominal Ratio57.5:1
Number of Stages1
Oil SealDouble Lip
Output Shaft Dia.1 in
Output Shaft Dia. (In.)1
Output Shaft Diameter1 in
Output Shaft Height4 7/8 in
Output Shaft Height (In.4.88
Output Torque @ 1/2 HP955 in-lbs, 955 in-lb
Output Torque @ 1/2 HP .955
Output Torque @ 1/3 HP638 in-lb
Output Torque @ 1/3 HP .638
Output Torque @ 1/4 HP470 in-lb
Output Torque @ 1/4 HP .470
Output Torque @ 1/40 HP3,600 in-lbs, 3600 in.-.
Output Torque @ 3/4 HP955 in.-lb., 955 in-lbs
Overhung Load660 lb.
Overhung Load (Lb.)660
PinionHardened Steel
Pinion MaterialHardened Steel
Prop 65WARNING: Cancer and Rep.
RotationForward/Reverse
Seal TypeDouble Lip
Shaft OrientationParallel Inline, Parall.
Ship Weight32 lbs.
Single/Double Output/Un.Single Output
SKUZO-G0930097
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA
SubCategoryPower Transmission
TypeC-Face
UPC190735241356

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caDTN2Z932532.139185021In StockDAYTON31.45532.13918502 @ 1
thumbzoomZoroG0930097572.991125Dayton31.45572.99 @ 1
thumbzoomsimsupply.comZO-G0930097680.52197Dayton680.52 @ 1
AmazonTPB000CG3YGO840.981In Stock2Dayton840.98 @ 1
thumbzoomsustainablesupply.comC1675410933.831In StockDayton31.45933.83 @ 1
thumbzoomRaptor SuppliesAC4DWE940.5405361In StockDAYTON940.540536 @ 1
emotorpro.com2Z9321324.81In StockDayton32.01324.8 @ 1
