Hubbell DR20GRY

B00N3ULP6W

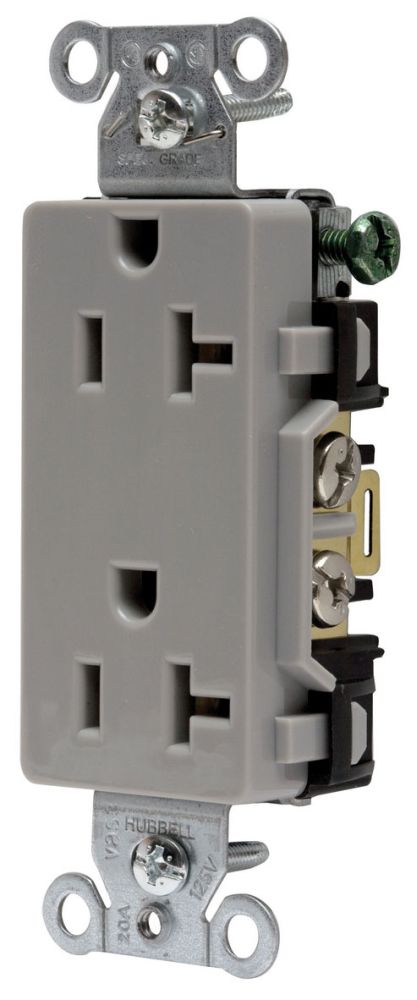

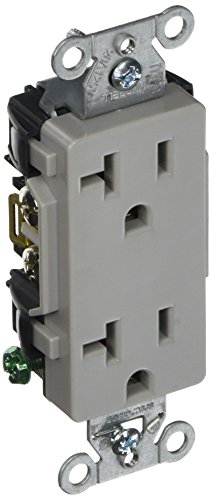

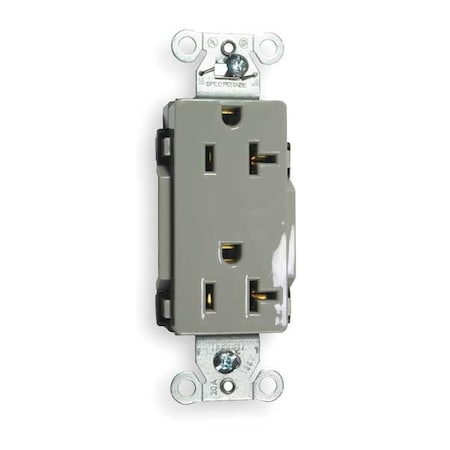

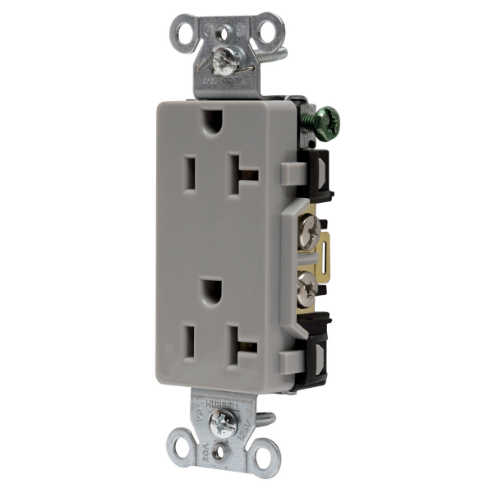

Hubbell DR20GRY Deco Receptacle, Common Ground, 20 amp 125V, 5-20R, Gray

Hubbell DR20GRY Deco Receptacle, Common Ground, 20 amp 125V, 5-20R, Grayzoom

Attributes

Key Value
Accessory Group-
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage20A
Amperage Rating20A, 20 Amp
Amps20
Amps - Plugs and Recep.20
Amps - Plugs and Recept.20 A
ApplicationCommercial Specificatio.
Application EnvironmentCommercial
ApprovalsCSA, UL
AWG Range#12 AWG to #10 AWG
Boot Code-
Brand NameHubbell-Wiring
ColorGray
Color - Plugs and Recep.Gray
Color FamilyGray
CommentsCommercial Specificatio.
Conductor Size12-10 AWG
Connection OrientationStraight
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginCN - China
Country Of OriginChina
Country of Origin (subj.China
Cover TypeNo Cover
Current Rating20 A
Degree of ProtectionNo
DescriptionGrounding
Dielectric Strength2000 Volt Minimum
Dimensions1.569 Inch Width x 1.06.
Display TypeStandard Sized Product
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsV2 Flammability Rated P.
Face Plate Height2.73 in
Face Plate Width1.3 in
Family SeriesHubbell Plugs & Recepta.
Fiber TypeNo
FinishNo
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeCommercial/Specificatio.
Gross Weight0.2 lbs
GroundGrounded
GroundingGrounded, Grounding
GTIN00783585127897
Height1.29 in.
Horsepower Rating1 hp
Housing ColorGray
Housing ColourGray
Housing MaterialNylon
HP1, 1 hp
IlluminatedNo
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
Isolated GroundNo
ItemReceptacle
Item - Plugs and Recept.Receptacle
Item NameStraight Blade Duplex R.
Item NumberDR20GRY
Jacket MaterialNo
Key Resistance Properti.Standard Resistance
Length3.28 in.
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberDR20GRY
MarketCommercial, Industrial
MaterialNylon
Maximum Load Capacity1 hp
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size12 AWG
Mount Hole Center-to-Ce.2.73 in
Mount Hole Center-to-Ce.1.3 in
Mount TypeFlush
Mounting TypeFlush
Mounting Type - Plugs a.Flush
Multimedia OutletNo
NEMA ConfigurationNEMA 5-20R, 5-20R, 5-15R
NEMA Enclosure Rating1
NEMA Receptacle Configu.5-20R
NEMA Receptacle Configu.5-20R
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of Poles2
Number of Poles & Wires2 Pole / 3 Wire
Number of Wires3.0000, 3
Outlet TypeDecorator
Outlet Type - Plugs and.Decorator Duplex
Overall Depth1.29 in
Phase1, Single
PolarizedYes
Power IndicatorNo
Primary Resistance Prop.20 A
Product TypeReceptacle
Rated Voltage125V
Receptacle TypeDecorator Duplex
RoHS FlagYes
ShroudedNo
StandardCertified to CSA, C22.2.
StandardsUL 498 E2186 Listed, CS.
Strap MaterialGalvanized Steel
StyleDuplex, Style Line Deco.
Sub BrandStyle Line?
Sub-CategoryDuplex Receptacles
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
Temperature Rating-40 to 75 deg C
Terminal ConnectionBack and Side Wired
TypeStandard Duplex, Duplex.
UL 94 Flammability Rati.V-2
UNSPSC39121406
UPC78358512789
USBNo
Voltage125V, 125VAC, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125 Volt AC, 125V AC
Weather ResistantNo
Weather Resistant - Plu.No
Width1.06 in.
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wiring MethodBack and Side, Back, Si.
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com4661132.98133Hubbell Wiring Device-Kellems2.98 @ 1
thumbzoomgordonelectricsupply.comDR20GRY4.43122HUBBELL4.43 @ 1
Monarch Electric617984.7133Hubbell-Wiring4.7 @ 1
Graybar251722574.8048134Hubbell Wiring Device - Kellems4.8048 @ 1
thumbzoomKelly HayesDR20GRY6.1214Hubbell Wiring Device-Kellems6.12 @ 1
thumbzoomZoroG27539476.441In StockHubbell0.156.44 @ 1
Onlinecomponents.comDR20GRY6.63133Hubbell6.63 @ 1
thumbzoomMRO Supply10171947.435In StockHubbell Wiring7.43 @ 5
thumbzoomGalcoDR20GRY-HBBL7.651In StockHubbell0.27.65 @ 1
Grainger3DVX28.011500HUBBELL WIRING DEVICE-KELLEMS8.0 @ 1
kirbyrisk.com22256148.761In StockHubbell8.76 @ 1
thumbzoomsustainablesupply.comC119317810.0133Hubbell0.1510.0 @ 1
grainger.caHBLDR20GRY11.228218821In StockHUBBELL WIRING DEVICE-KELLEMS0.1511.22821882 @ 1
us.rs-online.com7194487011.5915Hubbell Wiring Device-Kellems11.59 @ 1
Newark84M913912.331In StockHUBBELL WIRING DEVICES12.33 @ 1
VericalDR20GRY12.78514Hubbell Wiring Device-Kellems12.78 @ 5
thumbzoombscsource.comDR20GRY13.691In StockHubbell Wiring Device-Kellems13.69 @ 1
thumbzoomRaptor SuppliesAC8UKZ16.54795351In StockHUBBELL WIRING DEVICE-KELLEMS16.5479535 @ 1
thumbzoomNational Supply Network8602022921.411In StockHubbell Wiring Device-Kellems21.41 @ 1
