INA PCJTY17

mpnPCJTY17
brandname: INA
manufacturername: INA

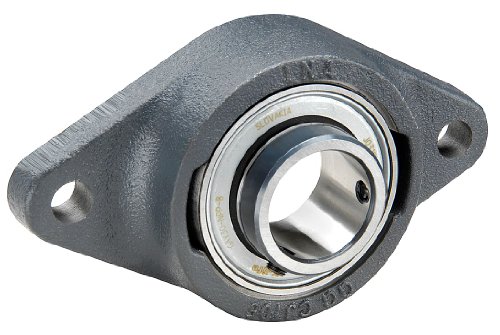

INA/Schaeffler Technologies - PCJTY17-2-Bolt Flange Bearing with Ball Bearing Insert and 17mm Bore Dia.

Brand: INA
PartNumber: PCJTY17
PackageQuantity: 1
Manufacturer: Ina
Label: Ina

Attributes

Key	Value
Bearing Housing Materia.	Cast Iron
Bearing Insert Material	52100 Chrome Steel
Bearing Insert Type	Ball
Bearing Lubrication	FAG Arcanol-MULTI2 or N.
Bolt Hole Center-to-Cen.	76.5 mm
Bolt Size	M10
Bolt Spacing	3.012 Inch \| 76.5 Milli.
Bore	0.669 Inch \| 17 Millime.
Bore Dia.	17 mm
Cartridge Pilot Depth	0 Inch \| 0 Millimeter
Cartridge Pilot Diameter	0 Inch \| 0 Millimeter
Category - BDI	Flange Block
Country of Origin (subj.	Slovakia
Dimension A	25 mm
Dimension B	22 mm
Dimension D	17 mm
Dimension H	99 mm
Dimension J	76 1/2 mm
Dimension L	99 mm
Dimension N	11.5 mm
Dynamic Load Capacity	9,800 N
EAN	4012802823356
Expansion / Non-expansi.	Non-expansion
Finish	Painted
Harmonized Tariff Code	8483.20.40.40
Housing Configuration	1 Piece Solid
Housing Material	Cast Iron
Housing Style	2 Bolt Flange Block
Inch - Metric	Metric
Includes	C3 Clearance, Grade 10 .
Insert Part Number	GAY17NPPB
Item	2-bolt Flange Bearing
Keyword String	Flanged
Length Thru Bore	0.866 Inch \| 22 Millime.
Locking Type	Set Screw
Long Description	2 Bolt Flange Block; 17.
Manufacturer Item Number	PCJTY17
Manufacturer Name	SCHAEFFLER GROUP
Minimum Buy Quantity	N/A
Mounting Bolts	11.5 Millimeter
Mounting Method	Set Screw
Nominal Bolt Circle Dia.	3 Inch \| 76 Millimeter
Noun	Bearing
Number of Mounting Holes	2
Other Features	Single Row \| With Grub .
Overall Height	99 mm
Overall Length	22 mm
Overall Width	33 mm
Pilot Configuration	No Pilot
Product Group - BDI	M06110
Relubricatable	Yes
Rolling Element	Ball Bearing
Seals	Double Lip Contact
Series	PCJTY
Shaft Locking Type	Set Screw
Standards	GTB14 DIN1680-2
Static Load Capacity	4,750 N
Temp. Range	-20 Degrees to 120 Deg.
UNSPSC	31171501
Weight / Kilogram	0.4
Weight / LBS	0.882

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G0114640	46.37	1	In Stock	Ina	0.87	46.37 @ 1
BDI Express	1176555	49.22615033	1	In Stock	INA	0.88	49.22615033 @ 1
Radwell	PCJTY17	60.0	1	In Stock	INA		60.0 @ 1
Purvis	PCJTY17	69.39	1	In Stock	INA		69.39 @ 1
