Johnson Controls A19ABC-24C

B004IRDZXA

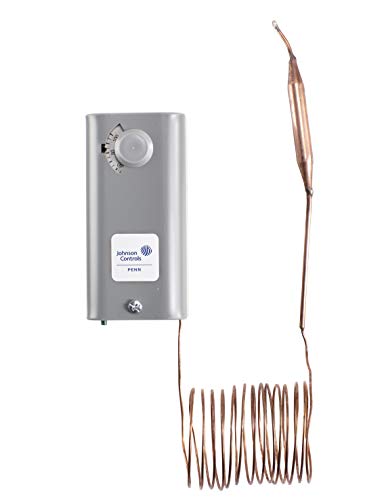

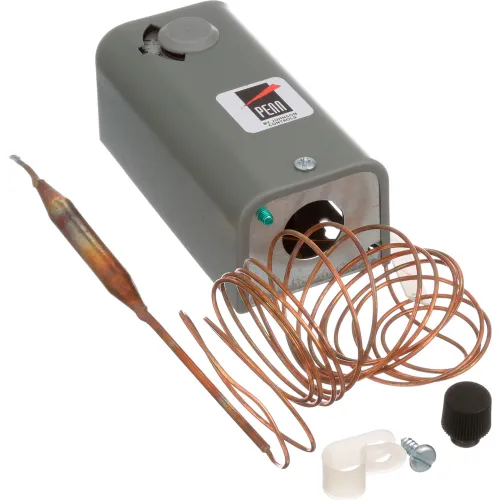

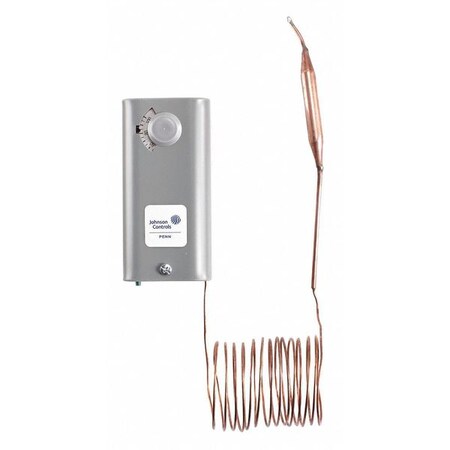

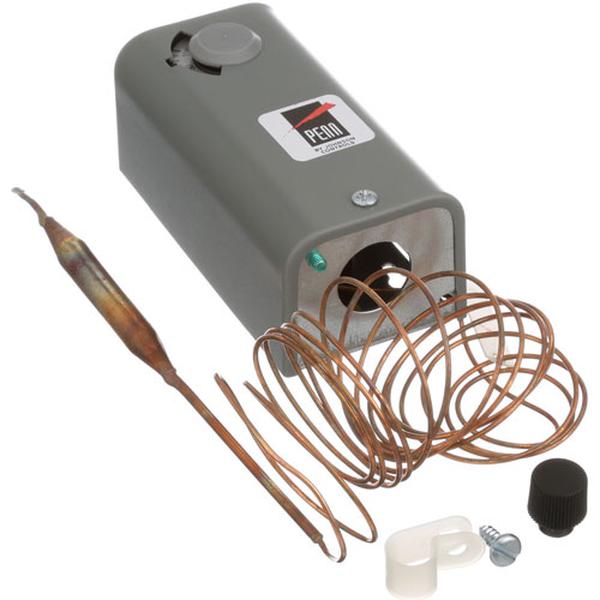

Johnson Controls A19ABC-24C A19 Series Remote Bulb. Control, Single-Pole, Single-Throw, Adjustable Differential , Gray

Johnson Controls A19ABC-24C A19 Series Remote Bulb. Control, Single-Pole, Single-Throw, Adjustable Differential , Grayzoom

Attributes

Key Value
ApplicationHeating or Cool, Heat o.
Best Sellers RankSee Top 100 in Industri.
BrandJohnson Controls
Bulb Diameter3/8 in, 1/2 in
Bulb Length4 in
Capillary Length96 Inch, 8 ', 96 in
Capillary Length/Bulb D.8 ft Capillary, 4 in x .
Changeover TypeManual
ColorGray
Compatible System TypeHot Water Heating Contr.
Contact Rating120V AC, 240V AC
Contact Rating Resistiv.22 A
Contact Rating Resistiv.22 A
Contact Rating Resistiv.22 A
Control Temperature Ran.-30 Degrees F, 100 Degr.
Control TypeConvertible
Country of OriginUSA
Current Stock397
Date First AvailableJune 5, 2010
Depth1 13/16 in
Differential3 Degrees to 12 Degrees.
Differential Temperature3-12 ?F
Differential TypeAdjustable
Electrical Connection T.Hardwired, Screw Termin.
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeGalvanized/Steel, NEMA 1
Family SeriesJohnson Controls Contro.
Full Load Amps @ 120V AC16 A
Full Load Amps @ 240V AC8 A
Gross Weight1.025 lbs
GTIN662766302110 , 78502821.
Hazardous0
Height4 3/8 in
IncludesBulb Mounting Clip
Inductive Amps @ 120V16 A
Inductive Amps @ 208V9.2 A
Inductive Amps @ 240V8 A
International ShippingNo
Is Discontinued By Manu.Yes
ItemLine Volt Mechanical Ts.
Item model numberA19ABC-24C
Item NumberA19ABC-24C
Lead TimeExpected to ship in 1-2.
Locked Rotor Amps @ 120V96 A
Locked Rotor Amps @ 240V48 A
ManufacturerJohnson Controls
Manufacturer Part NumberA19ABC-24C
Max Temperature140 ?F
Maximum Control Tempera.100 Degrees F
Maximum Operating Tempe.140 Degrees F
Minimum Control Tempera.-30 Degrees F
Minimum Operating Tempe.-35 Degrees F
Mounting TypeSurface Mount
MpnA19ABC-24C
National Stock Number6685-01-440-6343
Net Weight0.86 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Number of Relay Inputs1
Number of Switches1
Operating Temperature R.-35 Degrees F, 140 Degr.
Output1 SPDT
Overall Depth1 3/4 in, 1 7/8 in
Overall Height4 3/8 in, 4 1/2 in
Overall Width2 1/4 in, 2 1/8 in
Pilot Duty Contacts (VA)125 VA
Pilot Duty Rating125 VA @ 24 to 600V AC
Product CategoryRefrigeration Parts
Product Dimensions10 x 3 x 2 inches; 1.05.
Product SeriesA19 Remote Bulb Control
Product with faster shi.true
Resistive Amps @ 208V AC22 A
Sensing Bulb Dia.3/8 in
Sensing Bulb Length4 in
Sensor LocationRemote
Sensor TypeBulb, Hydraulic Capilla.
Setpoint Temp Range-30-100 ?F
Shippingundefined (Fixed Shippi.
SKUZO-G5063055
Stages1 Heat, 1 Cool
StandardsCSA LR948/4813 02, UL E.
Switch ActionOpen/Close on Rise
Switch TypeSPDT
Temperature Differential3 Degrees to 12 Degree.
Temperature ScaleFahrenheit/Celsius
Temperature Sensitivity+/-2 Degrees F
Thermostat Control Range-30 Degrees to 100 Deg.
Thermostat TypeIndoor Single-Stage Con.
TypeLine Volt Mechanical Ts.
UPC662766302110
Voltage120/208/240VAC, 120 to .
Web BrandJohnson Controls
Width2 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB004IRDZXA53.231In Stock2Johnson Controls53.23 @ 1
thumbzoomAmazonB004IRDZXA59.471In StockJohnson Controls59.47 @ 1
thumbzoomindustrialstores.comA19ABC-24C74.721In StockJohnson Controls74.72 @ 1
thumbzoomcappusa.com130782.81133Johnson Controls82.81 @ 1
hvacdiscountstore.comJOH--A19ABC-24C83.24130JOHNSON83.24 @ 1
thumbzoomZoroG506305584.4911094Johnson Controls1.0584.49 @ 1
KeleA19ABC-24C89.014Johnson Controls89.0 @ 1
thumbzoomVoomi SupplyA19ABC-24C96.381In StockJohnson Controls96.38 @ 1
thumbzoomenergycontrol.comA19ABC-24C97.731In StockJOHNSON CONTROLS97.73 @ 1
thumbzoomhomeessentialsdirect.comA19ABC-24C98.01In StockJohnson Controls98.0 @ 1
thumbzoomsimsupply.comZO-G5063055100.11397Johnson Controls100.1 @ 1
thumbzoomGalcoA19ABC-24C-JHSN105.6811Johnson Controls1.025105.68 @ 1
thumbzoomptacsolutions.com300000632111.891In StockJOHNSON CONTROLS111.89 @ 1
thumbzoomwaterpumpsnow.comA19ABC-24C118.81In StockJohnson2.0118.8 @ 1
grainger.caJHCA19ABC24C141.49587971In StockJOHNSON CONTROLS1.05141.4958797 @ 1
thumbzoomglobalcommercialparts.comJOC_A19ABC24C158.2313JOHNSON CONTROLS158.23 @ 1
thumbzoommidwestapplianceparts.comA19ABC-24C-JO-P158.521In StockJohnson Controls158.52 @ 1
thumbzoomsustainablesupply.comC2083603161.141In StockJohnson Controls2.0161.14 @ 1
thumbzoomRaptor SuppliesAC7WKD184.61974051In StockJOHNSON CONTROLS184.6197405 @ 1
thumbzoomRadwellA19ABC-24C200.011JOHNSON CONTROLS200.0 @ 1
thumbzoomGlobal IndustrialWBB2952734205.951In StockJohnson Controls205.95 @ 1
building-controls.comA19ABC-24C212.961In StockJOHNSON212.96 @ 1
