- mpnGT1005
- brandname: MARATHON
- manufacturername: MARATHON

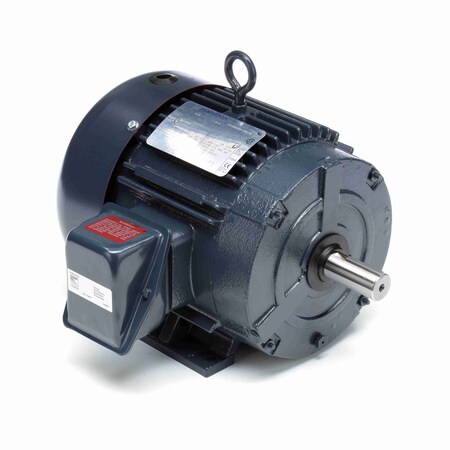

Marathon GT1005 182T Frame 182TTFC6076 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 1-1/2 hp, 1200 RPM, 1 Speed, 208-230/460 VAC
- Brand: Marathon Electric
- PartNumber: GT1005
- Model: MGT1005
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 182TTFC6076 |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| CC Number | CC003A |
| Composition | Cast Iron |
| Country of Origin (subj. | China |
| Duty Cycle | Continuous |
| Efficiency % | 87.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 182T |
| Frequency | 50 Hz, 60 Hz |
| Full Load Amps | 4.6/2.3 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Horsepower | 1-1/2 hp |
| HP | 1 1/2 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Item Number | GT1005 |
| Kilowatts | 1.1 kW |
| Length Less Shaft | 12 5/16 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | 182TTFC6076 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Type | Rigid |
| Nameplate RPM | 1,175 |
| NEMA Design | A |
| NEMA Frame | 182T |
| Net Weight | 99 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 87.5 % |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 6 |
| Overall Length | 15 1/16 in, 14.8 " |
| Phase | 3, Three |
| RPM | 1100 - 1200, 1,185 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1.13 " |
| Shaft Length | 2 3/4 in |
| Standards | UL Recognized (E49747),. |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 230/460V AC, 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Weight | 104 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 2268141 | 356.19 | 1 | In Stock | | Marathon Electric | | 356.19 @ 1 |
 | Galco | GT1005-MARA | 408.0 | 1 | In Stock | | Marathon Electric | 99.0 | 408.0 @ 1 |
| us.rs-online.com | 72649938 | 464.49 | 1 | In Stock | | Marathon Motors | | 464.49 @ 1 |
| kirbyrisk.com | 2403581 | 499.43 | 1 | In Stock | | Marathon | | 499.43 @ 1 |
 | Zoro | G7038076 | 500.83 | 1 | In Stock | | Marathon | | 500.83 @ 1 |
| grainger.ca | AOSGT1005 | 770.54468184 | 1 | In Stock | | MARATHON MOTORS | 99.0 | 770.54468184 @ 1 |
