Marathon Electric GT1012

B006KM7FBO

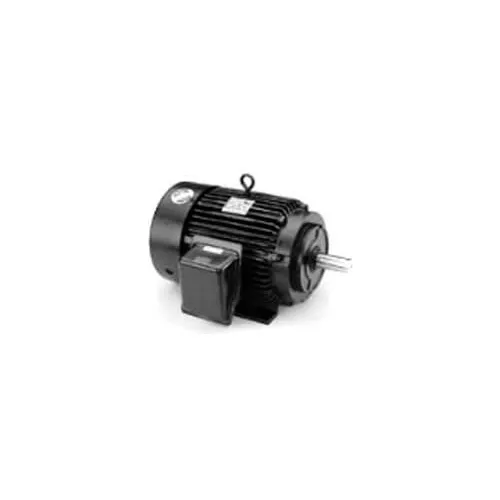

Marathon GT1012 184T Frame 184TTFC6001 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 5 hp, 3600 RPM, 1 Speed, 208-230/460 VAC

Marathon GT1012 184T Frame 184TTFC6001 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 5 hp, 3600 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Bearing ProtectionShaft Slinger
CC NumberCC003A
Duty CycleContinuous
Frame184T
Full Load Amps12.4/6.2
Green Certification or .NEMA Premium(R) Rated
HP5
Hz60
IncludesConduit Box
Ins. ClassF
Inverter RatedYes
ItemGeneral Purpose Motor
Length Less Shaft13 5/16 in
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Nameplate RPM3,525
NEMA DesignA
No. of Speeds1
Nominal Efficiency88.5 %
Overall Length16 1/16 in
PhaseThree
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
StandardsUL Recognized (E49747),.
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Weight78.00, 94 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomSquare OneGT1012492.11In StockMARATHON492.1 @ 1
thumbzoomState SupplyBG3014E561.381In StockMarathon78.0561.38 @ 1
thumbzoomGlobal IndustrialWBB871551695.01In StockMarathon Motors695.0 @ 1
thumbzoomNational Supply NetworkB871551723.991In StockMARATHON MOTORS723.99 @ 1
grainger.caAOSGT1012849.679310021In StockMARATHON MOTORS106.0849.67931002 @ 1
