- mpnGT1115
- brandname: Marathon Electric
- manufacturername: Marathon Electric

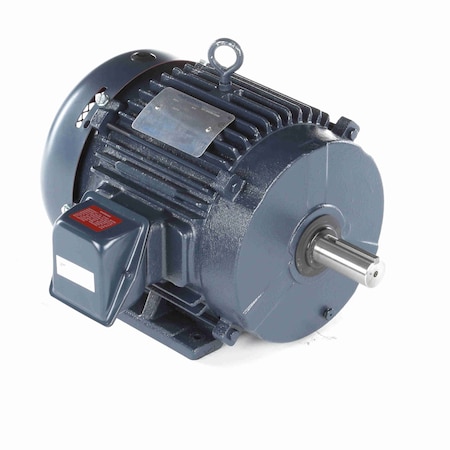

Marathon GT1115 213T Frame 213TTFC6005 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 7-1/2 hp, 3600 RPM, 1 Speed, 575 VAC
- Brand: Marathon Electric
- PartNumber: GT1115
- Model: MGT1115
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Amps | 7.1 |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| CC Number | CC003A |
| Composition | Cast Iron |
| Country of Origin (subj. | China |
| Duty Cycle | Continuous |
| Efficiency | 0.895 |
| Efficiency % | 89.5 % |
| Enclosure | Totally Enclosed Fan Co. |
| Enclosure Material | Iron |
| Enclosure Type | TEFC (Totally Enclosed . |
| enclosure type: | TEFC (Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 213T |
| frame material: | Cast Iron |
| frame size: | 213T |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| Full Load Amps | 7.1 |
| full load current: | 7.10 A |
| full load efficiency: | 89.50 % |
| Gross Weight | 0 lbs |
| Horsepower | 7-1/2 hp |
| HP | 7-1/2 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Rated | Yes |
| ip rating: | 43 |
| Item | General Purpose Motor |
| Item Number | GT1115 |
| Kilowatts | 5.6 kW |
| Length Less Shaft | 14-7/8" |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 213TTFC6005 |
| Manufacturer Part Number | 213TTFC6005 |
| Manufacturers Warranty . | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Iron |
| motor horsepower: | 7.50 hp, 7-1/2 hp |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| motor phase: | 3 ph |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| motor supply voltage: | 575 V |
| Motor Thermal Protection | None |
| Mounting | Base |
| Mounting Orientation | Horizontal |
| Mounting Type | Rigid |
| mounting type: | Rigid Base |
| Nameplate RPM | 3,552 |
| NEMA Frame | 213T |
| Net Weight | 202 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 18-1/4", 18.23 ", 18.23" |
| overall length (c-dimen. | 18.23 in |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 3525, 3,525 RPM |
| Service Factor | 1.15 |
| service factor: | 1.15 |
| Shaft Dia. | 1-3/8" |
| Shaft Diameter | 1-3/8", 1.38 " |
| shaft diameter: | 1.38 in |
| Shaft Length | 3.37", 3-3/8" |
| Ship Weight | 202 lbs. |
| Standards | UL Recognized (E49747),. |
| standards met: | UL, CSA |
| synchronous rpm: | 3600 rpm |
| Voltage | 575 |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
| weight: | 202 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motionindustries.com | 04738856 | 727.07 | 1 | In Stock | | Marathon Electric | | 727.07 @ 1 |
 | emotorpro.com | GT1115 | 775.79 | 1 | In Stock | | Marathon | 202.0 | 775.79 @ 1 |
 | Galco | GT1115-MARA | 935.0 | 1 | In Stock | | Marathon Electric | 202.0 | 935.0 @ 1 |
| grainger.ca | AOSGT1115 | 1098.48560682 | 1 | In Stock | | MARATHON MOTORS | 202.0 | 1098.48560682 @ 1 |
 | Zoro | G7036728 | 1270.8 | 1 | In Stock | | Marathon | | 1270.8 @ 1 |
