- mpnGT1148
- brandname: Marathon Electric
- manufacturername: Marathon Electric

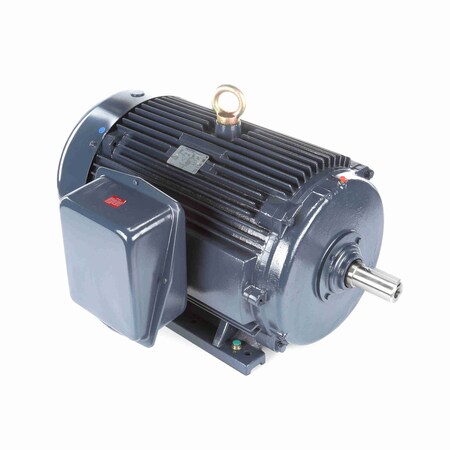

Marathon GT1148 444TS Frame 444TSTFC16002 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 125 hp, 3600 RPM, 1 Speed, 575 VAC
- Brand: Marathon Electric
- PartNumber: GT1148
- Model: MGT1148
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Amps | 109 A |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| CC Number | CC003A |
| Composition | Cast Iron |
| Country of Origin (subj. | China |
| Duty Cycle | Continuous |
| Efficiency | 95% |
| Efficiency % | 95 % |
| Enclosure | Totally Enclosed Fan Co. |
| Enclosure Material | Iron |
| Enclosure Type | TEFC (Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 444TS |
| Frequency | 60 Hz |
| Full Load Amps | 109.0 |
| Gross Weight | 0 lbs |
| Horsepower | 125 hp |
| HP | 125 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Item Number | GT1148 |
| Kilowatts | 93 kW |
| Length Less Shaft | 42-5/16" |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 444TSTFC16002 |
| Manufacturer Part Number | 444TSTFC16002 |
| Manufacturers Warranty . | 1 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting Orientation | Horizontal |
| Mounting Type | Rigid, Rigid Base |
| Nameplate RPM | 3,582 |
| NEMA Frame | 444TS |
| Net Weight | 1779 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 83.5% |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 47.05", 47-1/16", 47.05. |
| Phase | 3 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3580, 3,582 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 2-3/8" |
| Shaft Diameter | 2.38 ", 2-3/8" |
| Shaft Length | 4.75", 4-3/4" |
| Ship Weight | 1779 lbs. |
| Standards | UL Recognized (E49747),. |
| Voltage | 575 |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | GT1148-MARA | 9239.5 | 1 | In Stock | | Marathon Electric | 1779.0 | 9239.5 @ 1 |
| emotorpro.com | GT1148 | 10160.63 | 1 | In Stock | | Marathon | 1779.0 | 10160.63 @ 1 |
 | cbtcompany.com | GT1148 | 10550.82 | 1 | In Stock | | Marathon Electric Motors | | 10550.82 @ 1 |
 | Zoro | G7035477 | 11351.0 | 1 | In Stock | 10 | Marathon | | 11351.0 @ 1 |
| grainger.ca | AOSGT1148 | 14361.1241287 | 1 | In Stock | | MARATHON MOTORS | 1779.0 | 14361.1241287 @ 1 |
