- mpnGT2401
- brandname: Marathon Electric
- manufacturername: Marathon Electric

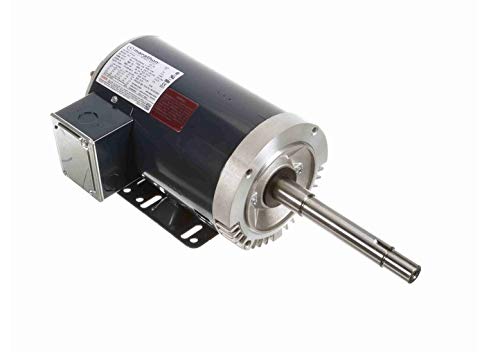

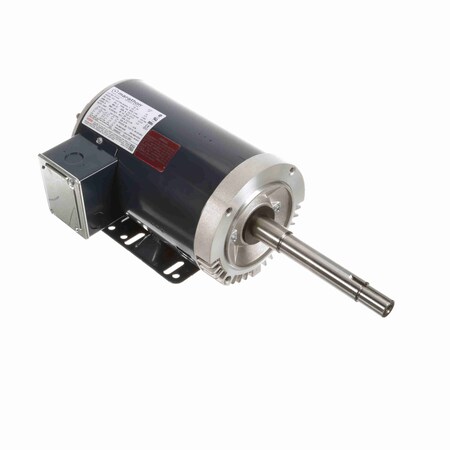

Marathon GT2401 143JP Frame 143TTDR16048 TEFC Closed Coupled Pump Motor, 3 Phase, C-Face, Ball Bearing, 1 hp, 1800 RPM, 1 Speed, 230/460 VAC
- Brand: Marathon Electric
- PartNumber: GT2401
- Model: MGT2401
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 143TTDR16048 |
| Amps | 3/1.5 |
| Approvals | CE, CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Country of Origin (subj. | United States |
| Duty Cycle | Continuous |
| Efficiency | 0.855 |
| Efficiency % | 85.5 % |
| Enclosure | ODP, Drip Proof |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Family Series | Marathon Electric Motors |
| Frame | 143JP |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Item Number | GT2401 |
| Kilowatts | 0.75 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 143TTDR16048 |
| Manufacturer Part Number | 143TTDR16048 |
| Maximum Ambient Tempera. | 40? C |
| Motor Shell Length | 9.06" |
| Mounting | Base |
| Mounting Orientation | Horizontal |
| Mounting Type | Rigid |
| NEMA Frame | 143JP |
| Net Weight | 0 lbs |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 18.18", 18.18 " |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1760, 1700 - 1800, 1,76. |
| Service Factor | 1.15 |
| Shaft Diameter | 0.88 ", 7/8" |
| Shaft Length | 7.31" |
| Ship Weight | 41 lbs. |
| Voltage | 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | GT2401 | 406.09 | 1 | In Stock | | Marathon | 41.0 | 406.09 @ 1 |
 | Galco | GT2401-MARA | 533.5 | 40 | In Stock | | Marathon Electric | | 533.5 @ 40 |
| us.rs-online.com | 72650697 | 607.37 | 1 | In Stock | | Marathon Motors | | 607.37 @ 1 |
 | cbtcompany.com | GT2401 | 652.74 | 1 | In Stock | | Marathon Electric Motors | | 652.74 @ 1 |
 | Zoro | G202061004 | 700.0 | 1 | In Stock | 10 | Marathon | | 700.0 @ 1 |
