Martin 5 B 40 SD

B004BKI16U

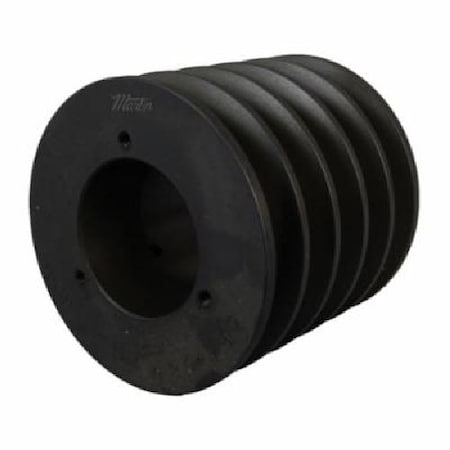

Martin 5 B 40 SD Conventional QD Sheave, A/B Belt Section, 5 Grooves, SD Bushing required, Class 30 Gray Cast Iron, 4.35" OD, 5703 max rpm, A - 3.6/B - 4" Pitch Diameter

Martin 5 B 40 SD Conventional QD Sheave, A/B Belt Section, 5 Grooves, SD Bushing required, Class 30 Gray Cast Iron, 4.35" OD, 5703 max rpm, A - 3.6/B - 4" Pitch Diameterzoom

Attributes

Key Value
Belt Cross SectionA/B
Bore TypeBushed
Bushed ForSD
Bushing Maximum Bore Si.1.6875 "
Bushing MountReverse
Bushing StyleQD
Length Through Bore1.8125 "
MaterialCast Iron
Number of Grooves5
Outer Diameter4.35 in
Outside Dia4.350"
Pitch Diameter4 "
Sheave ConstructionSolid
Sheave Face Width4 "
Sheave TypeConventional
UPC Code697950117737
Weight7 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com5 B 40 SD110.592In StockMartin1.0110.59 @ 2
us.rs-online.com72480138122.681In StockMartin Sprocket & Gear7.0122.68 @ 1
factorysupplyoutlet.comMV42TX132.471In Stock25MARTIN132.47 @ 1
thumbzoomPurvis5 B 40 SD133.761In StockMartin133.76 @ 1
thumbzoomapexindustrialautomation.com5 B 40 SD139.191In StockMartin Sprocket139.19 @ 1
thumbzoomMRO Supply255166147.751In StockMartin Sprocket147.75 @ 1
thumbzoomZoroG3363986157.991In StockMartin Sprocket & Gear157.99 @ 1
