Martin 8 B 94 E

B004BKI3KE

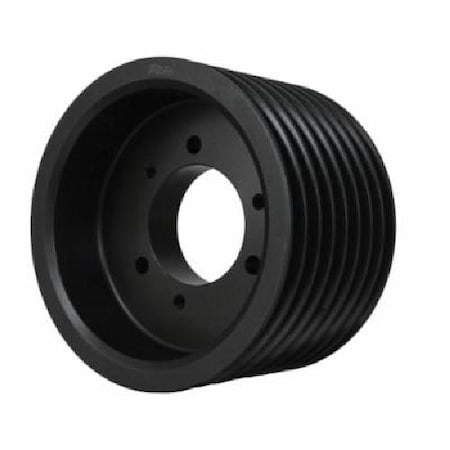

Martin 8 B 94 E Conventional QD Sheave, A/B Belt Section, 8 Grooves, E Bushing required, Class 30 Gray Cast Iron, 9.75" OD, 2545 max rpm, A - 5.4/B - 5.8" Pitch Diameter

Martin 8 B 94 E Conventional QD Sheave, A/B Belt Section, 8 Grooves, E Bushing required, Class 30 Gray Cast Iron, 9.75" OD, 2545 max rpm, A - 5.4/B - 5.8" Pitch Diameterzoom

Attributes

Key Value
Belt Cross SectionA/B
Bore TypeBushed
Bushed ForE
Bushing Maximum Bore Si.2.875 "
Bushing MountReverse
Bushing StyleQD
Length Through Bore2.625 "
MaterialCast Iron
Number of Grooves8
Outer Diameter9.75 in
Outside Dia9.750"
Pitch Diameter9.4 "
Sheave ConstructionWeb
Sheave Face Width6.25 "
Sheave TypeConventional
UPC Code697950123165
Weight40 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com8 B 94 E436.091In StockMartin1.0436.09 @ 1
us.rs-online.com72480643483.711In StockMartin Sprocket & Gear40.0483.71 @ 1
thumbzoomMRO Supply255624504.961In StockMartin Sprocket504.96 @ 1
factorysupplyoutlet.comLC36MW511.271In Stock25MARTIN511.27 @ 1
thumbzoomPurvis8 B 94 E527.461In StockMartin527.46 @ 1
thumbzoomZoroG3308948622.991In StockMartin Sprocket & Gear622.99 @ 1
cbtcompany.com8 B 94 E631.211In StockMartin Sprocket & Gear631.21 @ 1
motionindustries.com00701151692.991In StockMartin692.99 @ 1
