Molex / Waldom 39-29-1048

mpn0039291048
brandname: Molex
manufacturername: Molex

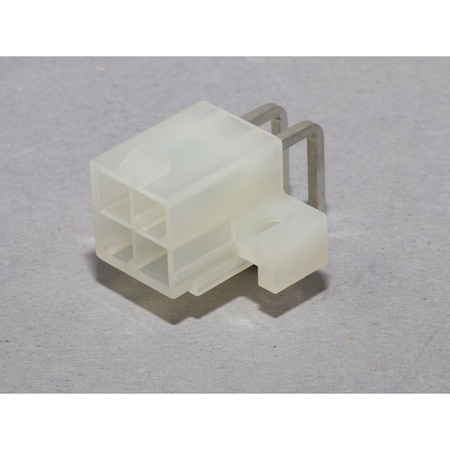

Molex / Waldom 39-29-1048 Connector Power

Brand: Molex / Waldom
PartNumber: 39-29-1048
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Agency Approvals	CSA ; UL ; TUV
Alternate Mfr Part Numb.	5569-04A1
Angle	Right Angle
Applications	General Purpose, Indust.
Base Product Number	003929
Category	Connectors, Interconnec.
Color	Natural
Color - Resin	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	13.0A
Current Rating	13 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 4POS 4..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM3901-ND
Durability (mating cycl.	30
Duration at Max. Proces.	5
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	Mounting Flange
Flammability	94V-2
Housing Material	Nylon 6/6
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0039291048
Manufacturer Standard L.	17 Weeks
Mated Stacking Heights	-
Material - Plating Mati.	Matte Tin
Material - Resin	Nylon
Material Flammability R.	UL94 V-2
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Hole Size	2.4 mm
Mounting Type	Through Hole, Right Ang.
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40 to +105 ?C, -
Orientation	Right Angle
Overall Contact Length	-
Overall Length	19.6 mm
Package	Bulk
PCB Locator	Yes
PCB Retention	Yes
PCB Thickness - Recomme.	1.78mm
Pin Length	3.5 mm
Pin Spacing	0.165 in
Pitch	4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Pitch - Mating Interface	4.20mm
Plating Material	Matte Tin
Plating min - Terminati.	2.540?m
Polarized to Mating Part	Yes
Primary Type	Soft Shell
Process Temperature max.	260
Product Header	Mini-Fit Jr.? Wire-to-B.
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569, 5569 .
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Strain Relief	Low Profile
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Solder, Through Hole
Termination Interface: .	Through Hole
Type	Right Angle Header
UL	E29179
Voltage - Maximum	600V
Voltage Rating	-, 600 V
