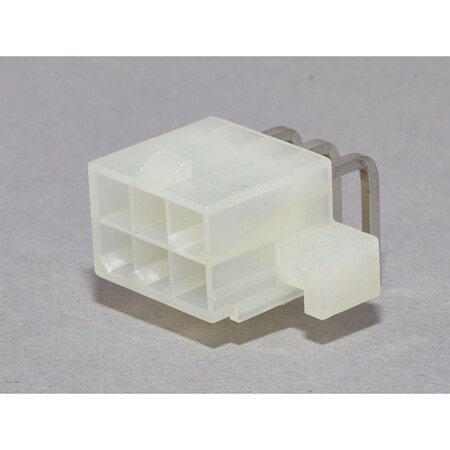

MOLEX 39-29-1068 WIRE TO BOARD CONNECTOR, PIN, 6 POSITION, 4.2MM (1 piece)
- PartNumber: 39-29-1068
- Size: 1 Piece
- PackageQuantity: 1
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL ; TUV |
| Alternate Mfr Part Numb. | 5569-06A1 |
| Alternate Part No. | 538-39-29-1068 |
| Angle | Right Angle |
| Applications | General Purpose, Indust. |
| Base Product Number | 003929 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 6 |
| Circuits (maximum) | 6 |
| Color | Natural |
| Color - Resin | Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | - |
| Contact Length - Post | 0.142" (3.60mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 6POS 4.. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM3902-ND |
| Durability (mating cycl. | 30 |
| Duration at Max. Proces. | 5 |
| Family Name | Mini-Fit Jr. |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Housing Material | Nylon 6/6, Nylon |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.378" (9.60mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-29-1068 |
| Manufacturer Product Nu. | 0039291068 |
| Manufacturer Standard L. | 17 Weeks |
| Mated Stacking Heights | - |
| Material - Metal | Brass |
| Material - Plating Mati. | Matte Tin |
| Material - Plating Term. | Matte Tin |
| Material - Resin | Nylon |
| Material Flammability R. | UL94 V-2 |
| Max. Cycles at Max. Pro. | 1 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Hole Size | 2.4 mm |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Overall Length | 23.8 mm |
| Package | Bulk |
| Packaging | Bulk |
| Part # Aliases | 0039291068 5569-06A1 |
| PCB Locator | Yes |
| PCB Retention | Yes |
| PCB Thickness - Recomme. | 1.78mm |
| Pin Length | 3.5 mm |
| Pin Spacing | 0.165 in |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | 0.165" (4.20mm) |
| Pitch - Mating Interface | 4.20mm |
| Pitch - Termination Int. | 4.20mm |
| Plating Material | Matte Tin |
| Plating min - Mating | 2.540?m |
| Plating min - Terminati. | 2.540?m |
| Polarized to Mating Part | Yes |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Header | Mini-Fit Jr.? Wire-to-B. |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Series | Mini-Fit Jr 5569, 5569,. |
| Shrouded | Fully |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Strain Relief | Low Profile |
| Style | Board to Cable/Wire |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Solder, Through Hole |
| Termination Interface: . | Through Hole |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Right Angle Header, Pin. |
| Voltage - Maximum | 600V |
| Voltage Rating | -, 600 V |
