Molex 90122-0777

mpn90122-0777
brandname: MOLEX
manufacturername: MOLEX

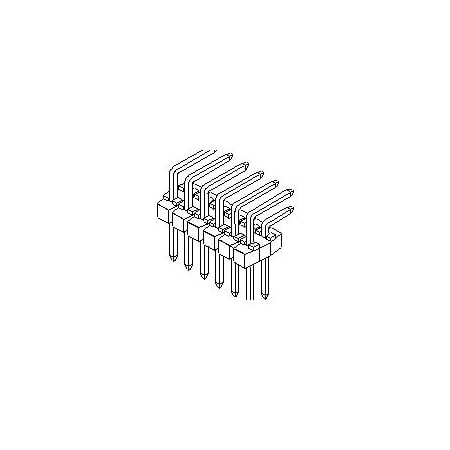

Molex Header Connector,PCB Mount,recept,34 Contacts,pin,0.1 Pitch,r Angle Pc Tail Terminal - 90122-0777

Molex Header Connector,PCB Mount,recept,34 Contacts,pin,0.1 Pitch,r Angle Pc Tail Terminal - 90122-0777

zoom

Brand: Molex
PartNumber: 90122-0777
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 34POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM50030-34-ND
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.242" (6.14mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	90122-0777
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	125?C
Max. Voltage	350V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	34
Number of Positions	34
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	C-Grid III 90122
Shrouding	Unshrouded
Standards	UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 90122-0777	3.69	15	4280		MOLEX		3.69 @ 15
	Onlinecomponents.com	90122-0777	3.98	1	2700		MOLEX / WALDOM		3.98 @ 1
	jensentools.com	10198197	4.92	1	In Stock		Molex		4.92 @ 1
	Newark	94M2760	5.45	1	4280		MOLEX		5.45 @ 1
	Digi-Key	5418580	6.22	1	In Stock		Molex		6.22 @ 1
	Hotenda	H4311399	6.58	1	In Stock		Molex		6.58 @ 1
	Zoro	G4050861	79.35	15	In Stock		Molex		79.35 @ 15
