Molex / Waldom 90122-0762

mpn90122-0762
brandname: Molex Incorporated
manufacturername: Molex Incorporated

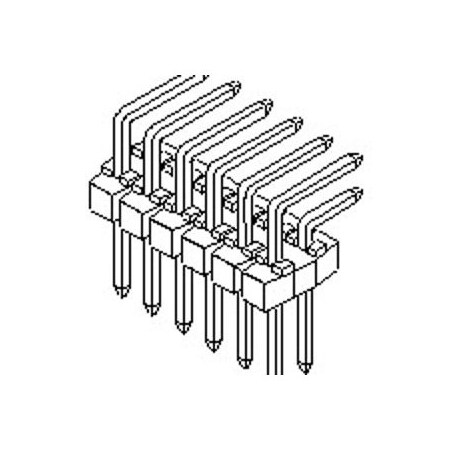

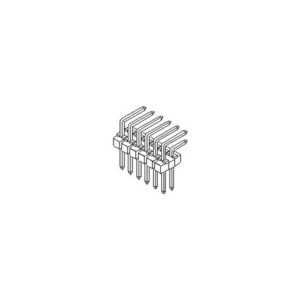

Molex / Waldom 90122-0762 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 90122-0762
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	090122
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 4POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM50030-04-ND
Family Name	C-Grid III
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.242" (6.14mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	90122-0762
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	125?C
Max. Voltage	350V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Plating Material	Gold
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	C-Grid III 90122, 90122.
Shrouding	Unshrouded
Standards	UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 90122-0762	0.73	75	1302	MOLEX	0.73 @ 75
Digi-Key	5418595	0.88	1	946	Molex	0.88 @ 1
jensentools.com	10198192	0.97	1	103	Molex	0.97 @ 1
Newark	94M2754	1.26	1	1302	MOLEX	1.26 @ 1
us.rs-online.com	71466270	1.30848	1	103	Molex Incorporated	1.30848 @ 1
Hotenda	H4311414	1.33	1	103	Molex	1.33 @ 1
Zoro	G105891296	86.25	75	103	Molex	86.25 @ 75
