Molex / Waldom 90122-0763

mpn90122-0763
brandname: Molex Incorporated
manufacturername: Molex Incorporated

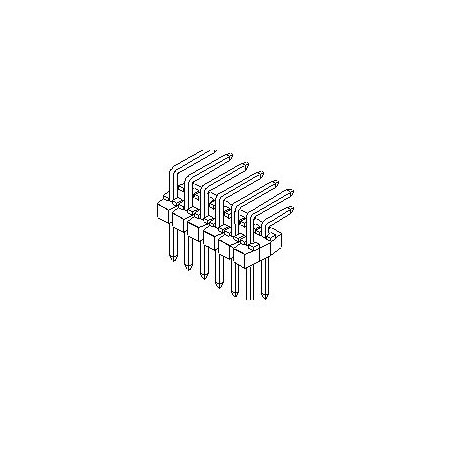

90122-0763, Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole C-Grid III Tray (50 Items)

Brand: Molex / Waldom
PartNumber: 90122-0763
Model: 90122-0763
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901220763
Alternate Part No.	538-90122-0763
Applications	Automotive, General Pur.
Brand	Molex
Breakaway	Yes
Category	Connectors, Interconnec.
Circuits (Loaded)	6
Circuits (maximum)	6
Color	Black
Color - Resin	Black
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current - Maximum per C.	3.0A
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 6POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM50030-06-ND
Family Name	C-Grid III
Fastening Type	Push-Pull
Features	-
Flammability	94V-0
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.242" (6.14mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Part No.	90122-0763
Manufacturer Product Nu.	90122-0763
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Gold
Material - Plating Term.	Tin
Material - Resin	Polyester
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Packaging	Tray
Part # Aliases	0901220763
PC Tail Length	2.90mm
Pitch	2.54 mm, 2.54 mm (0.100.
Pitch - Mating	0.100" (2.54mm)
Pitch - Mating Interface	2.54mm
Pitch - Termination Int.	2.54mm
Plating Material	Gold
Plating min - Mating	0.381?m
Plating min - Terminati.	3.048?m
Primary Type	Board Mount
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	0.100" (2.54mm)
Series	90122, C-Grid III 90122.
Shrouding	Unshrouded
Style	Board to Board or Cable
Temperature Range - Ope.	-55? to +125?C
Termination	Solder
Termination Interface: .	Through Hole
Termination Style	Through Hole
Tradename	C-Grid
Type	Right Angle Header, Bre.
UL	E29179
Voltage - Maximum	350V
Voltage Rating	-, 350 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Avnet	0901220763	0.80947	1800	123	Molex	0.80947 @ 1800
TME	MX-90122-0763	0.89	1800	112	MOLEX	0.89 @ 1800
Verical	901220763	0.8966	38	2746	Molex	0.8966 @ 38
Onlinecomponents.com	90122-0763	0.95	1	1396	MOLEX / WALDOM	0.95 @ 1
Chip One Stop Japan	C1S516503155861	0.969	5	1938	Molex	0.969 @ 5
Newark	01AH8819	1.09	1	185	MOLEX	1.09 @ 1
Arrow	90122-0763	1.141	1	118	Molex	1.141 @ 1
Digi-Key	5418594	1.33	1	838	Molex	1.33 @ 1
NEP Electronics	90122-0763	1.4412	55	69	Molex	1.4412 @ 55
Hotenda	H4311413	1.65	1	112	Molex	1.65 @ 1
us.rs-online.com	70372854	1.69	5	112	Molex Incorporated	1.69 @ 5
RS Delivers	360-6522	1.89	1	655	Molex	1.89 @ 1
swatee.com	90122-0763	2.1	1	231	Molex	2.1 @ 1
Zoro	G4051342	81.95	55	112	Molex	81.95 @ 55
