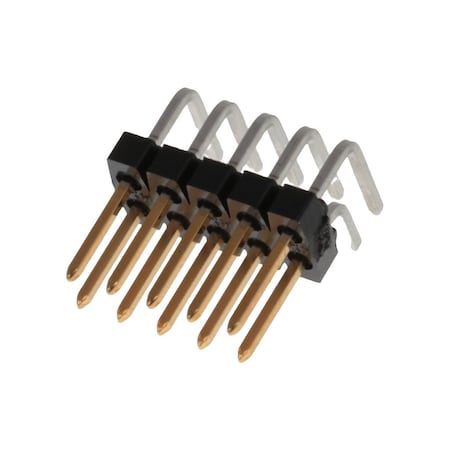

Molex / Waldom 90122-0765 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 90122-0765
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 901220765 |
| Alternate Part No. | 538-90122-0765 |
| Applications | Automotive, General Pur. |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header, Breakaway |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 15.0?in (0.38?m) |
| Contact Finish Thicknes. | 118.1?in (3.00?m) |
| Contact Length - Mating | 0.266" (6.75mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Contact Material | Brass, Copper Alloy |
| Contact Plating | Gold |
| Contact Plating Thickne. | 0.381 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 10POS 2. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM50030-10-ND |
| Family Name | C-Grid III |
| Fastening Type | Push-Pull |
| Features | Breakaway, - |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 2.54 mm |
| Housing Material | Polyester |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.242" (6.14mm) |
| Insulation Material | Polyester, Glass Filled |
| Manufacturer | Molex |
| Manufacturer Part No. | 90122-0765 |
| Manufacturer Product Nu. | 90122-0765 |
| Mated Stacking Heights | - |
| Material | Polyester |
| Material Flammability R. | UL94 V-0 |
| Max. Temp. | 125?C |
| Max. Voltage | 350V |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | - |
| Overall Contact Length | - |
| Package | Bulk |
| Packaging | Tray |
| Part # Aliases | 0901220765 |
| Pitch | 2.54 mm, 2.54 mm (0.100. |
| Pitch - Mating | 0.100" (2.54mm) |
| Plating Material | Gold |
| Primary Type | Board Mount |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | 90122, C-Grid III 90122. |
| Shrouding | Unshrouded |
| Standards | UL E29179 |
| Style | Board to Board or Cable |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder |
| Tradename | C-Grid |
| Type | Right Angle Header, Bre. |
| Voltage Rating | -, 350 V |
