PCG1A561MCL1GS

mpnPCG1A561MCL1GS
brandname: Nichicon
manufacturername: Nichicon

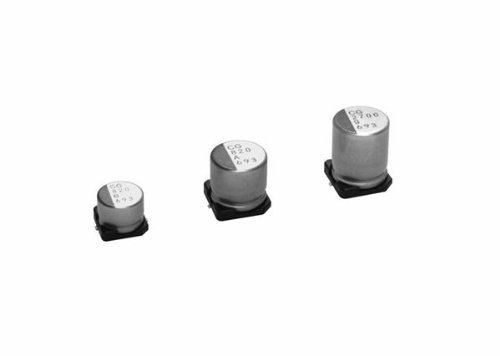

Aluminum Organic Polymer Capacitors 560uF 10 Volts 20% SMD Low ESR (1 piece)

Aluminum Organic Polymer Capacitors 560uF 10 Volts 20% SMD Low ESR (1 piece)

zoom

PartNumber: PCG1A561MCL1GS
PackageQuantity: 1
Manufacturer: Nichicon
Label: Nichicon

Attributes

Key	Value
Alternate Part No.	647-PCG1A561MCL1GS
Applications	General Purpose
Brand	Nichicon
Capacitance	560 uF, 560 ?F
Case Diameter	10 mm
Case Length	8 mm
Category	Capacitors
Dissipation Factor DF	0.12
ESR	20 mOhms
ESR (Equivalent Series .	20mOhm
Height - Seated (Max)	0.315" (8.00mm)
Lead Spacing	-
Leakage Current	1120 uA
Lifetime @ Temp.	2000 Hrs @ 105?C
Load Life	2000 h
Manufacturer	Nichicon
Manufacturer Part No.	PCG1A561MCL1GS
Maximum Operating Tempe.	+ 105 C
Mfr	Nichicon
Minimum Operating Tempe.	- 55 C
Mounting Type	Surface Mount
Operating Temperature	-55?C ~ 105?C
Package	Tape & Reel (TR)
Package / Case	Radial, Can - SMD
Packaging	Reel
Product	Organic Polymer Aluminu.
Product Category	Aluminium Organic Polym.
Product Status	Active
Product Type	Can
Ratings	-
Ripple Current	3600 mA
Ripple Current @ High F.	3.6 A @ 100 kHz
Series	CG, PCG
Size / Dimension	0.394" Dia (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.
Termination Style	SMD/SMT
Tolerance	?20%, 20 %
Type	Polymer
Voltage - Rated	10 V
Voltage Rating DC	10 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H184700	0.82314	500	121		Nichicon		0.82314 @ 500
	Allied Electronics	E4763772	0.8476	500	121		Nichicon		0.8476 @ 500
	Newark	58R6412	0.895	500	111		NICHICON		0.895 @ 1
	Radwell	PCG1A561MCL1GS	1.8	500	111		NICHICON		1.8 @ 500
	Digi-Key	1662478	2.07	1	111		Nichicon		2.07 @ 1
	swatee.com	PCG1A561MCL1GS	5.05	1	385		Nichicon		5.05 @ 1
