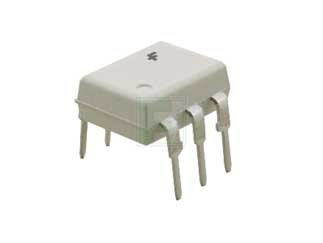

FAIRCHILD (ON SEMICONDUCTOR) 4N38M

mpn4N38M
brandname: ON Semiconductor
manufacturername: ON Semiconductor

Fairchild Semiconductor 4N38M Optoelectronics Isolation-Components-optocouplers Single Channel 80 V 4170 V Through Hole Phototransistor Optocoupler-DIP-6-50 Item(s)

Fairchild Semiconductor 4N38M Optoelectronics Isolation-Components-optocouplers Single Channel 80 V 4170 V Through Hole Phototransistor Optocoupler-DIP-6-50 Item(s)

zoom

Brand: FAIRCHILD (ON SEMICONDUCTOR)
PartNumber: 4N38M
Model: 4N38M
PackageQuantity: 1
Manufacturer: FAIRCHILD (ON SEMICONDUCTOR)
Label: FAIRCHILD (ON SEMICONDUCTOR)

Attributes

Key	Value
Alternate Part No.	512-4N38M
Base Product Number	4N38
Brand	Fairchild Semiconductor
Category	Isolators
Current - DC Forward (I.	80 mA
Current - Output / Chan.	100mA
Current Transfer Ratio .	-
Current Transfer Ratio .	20% @ 10mA
Input Type	DC
Isolation Voltage	7500 Vrms
Manufacturer	Fairchild Semiconductor
Manufacturer Part No.	4N38M
Maximum Collector Emitt.	1 V
Maximum Collector Emitt.	80 V
Maximum Forward Diode V.	1.5 V
Maximum Input Diode Cur.	80 mA
Maximum Operating Tempe.	+ 100 C
Maximum Power Dissipati.	300 mW
Maximum Reverse Diode V.	6 V
Mfr	ON Semiconductor, onsemi
Minimum Operating Tempe.	- 55 C
Mounting Type	Through Hole
Number of Channels	1
Number of Channels per .	1 Channel
Operating Temperature	-40?C ~ 100?C
Output Device	NPN Phototransistor
Output Type	Transistor with Base, DC
Package	Tube
Package / Case	6-DIP (0.300", 7.62mm)
Package/Case	PDIP-6
Packaging	Bulk
Part # Aliases	4N38M_NL
Part Status	Active
Product Category	Transistor Output Optoc.
Product Status	Active
Rise / Fall Time (Typ)	-
Series	-, 4N38M
Supplier Device Package	6-DIP
Turn On / Turn Off Time.	5?s, 5?s
Unit Weight	855 mg
Vce Saturation (Max)	1V
Voltage - Forward (Vf) .	1.15V
Voltage - Isolation	4170Vrms
Voltage - Output (Max)	80V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	29H2330	0.2	2000	50		ONSEMI		0.2 @ 1000
	Future Electronics	3534658	0.27	1	253		ON Semiconductor		0.27 @ 50
	Digi-Key	1793916	0.463	1	50		onsemi		0.463 @ 50
	RS Delivers	805-1249	0.5868	1	50		onsemi		0.5868 @ 50
	Hotenda	H2747946	0.5896	1	50		Fairchild Semiconductor		0.5896 @ 50
	swatee.com	4N38M	1.56	1	1316		Fairchild Semiconductor		1.56 @ 50
