- mpnOA172SAP-11-2TB
- brandname: Orion (Knight Electronics, Inc.)
- manufacturername: Orion (Knight Electronics, Inc.)

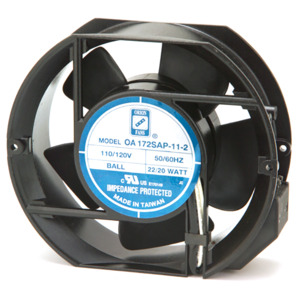

KNIGHT ELECTRONICS ORION FANS OA172SAP-11-2TB OA172 Series 2400 RPM 172 x 150 x 51 mm 170 CFM 115 V Dual Ball Bearing AC Fan - 1 item(s)
- Brand: KNIGHT ELECTRONICS ORION FANS
- PartNumber: OA172SAP-11-2TB
- Model: OA172SAP-11-2TB
- PackageQuantity: 1
- Manufacturer: KNIGHT ELECTRONICS ORION FANS
- Label: KNIGHT ELECTRONICS ORION FANS
Attributes
| Key | Value |
|---|
| Air Flow | 170 CFM, 170.0 CFM (4.7. |
| Approval Agency | cURus, TUV |
| Approvals | cUR, TUV, UR |
| Approximate Size | 6.8 x 5.9 in. ; 172 x 1. |
| Approximate Thickness | 2 in. ; 51 mm |
| Base Product Number | OA172SAP |
| Bearing Type | Dual Ball, Ball |
| Category | Fans, Thermal Management |
| Configuration | Obround (Flat Sides/Rou. |
| Current Rating (Amps) | - |
| Dimensions | 6.8 x 5.9 x 2 . ; 172 x. |
| Family Series | Orion Fans, AC-FAN Seri. |
| Fan Speed | 2,400 RPM |
| Fan Type | Tubeaxial, AC |
| Features | Capacitor |
| Frequency | 50;60 Hz |
| Gross Weight | 0 lbs |
| Impeller Material | Plastic |
| Ingress Protection | - |
| Item Number | OA172SAP-11-2TB |
| Lifetime @ Temp. | 60000 Hrs @ 40?C |
| Manufacturer | Orion |
| Manufacturer Part Number | OA172SAP-11-2TB |
| Material | Diecast Aluminum |
| Material - Blade | Polybutylene Terephthal. |
| Material - Frame | Aluminum |
| Maximum Operating Tempe. | 70 C |
| Mfr | Orion Fans |
| Minimum Operating Tempe. | -40 C |
| Net Weight | 2.53 lbs |
| Noise | 42.0dB |
| Noise Level | 42 dB, 42 dBA |
| Nominal Depth | 51 mm |
| Nominal Height | 150 mm |
| Nominal Voltage | 120 VAC |
| Nominal Width | 172 mm |
| Operating Temp Range (F) | -40-158 ?F |
| Operating Temperature | -4 ~ 158?F (-20 ~ 70?C) |
| Operating Voltage | 115 VAC |
| Package | Box |
| Power (Watts) | 20.00W |
| Power Consumption | 20 W |
| Power Rating | 20 W |
| Product Series | AC-FAN |
| Product Status | Active |
| RoHS | Yes |
| Rotation | CCW, Counter Clockwise |
| RPM | 2400 RPM |
| Series | OA172SAP, OA172SAP Seri. |
| Size | 6.8 x 5.9 x 2 (172 x 15. |
| Size / Dimension | Rectangular/Rounded - 1. |
| Speed | 2400 RPM |
| Static Pressure | 0.55 in H2O (137 Pa), 0. |
| Tachometer Output | No |
| Termination | 2 Terminals, Terminals |
| Type | Obround (Flat Sides/Rou. |
| Voltage - Rated | 115VAC |
| Voltage Range | 80 ~ 130VAC |
| Voltage Rating | 115 V |
| Weight | 2.6 lbs (1.2 kg) |
| Width | 51.00mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | OA172SAP-11-2TB | 40.27 | 1 | In Stock | | Orion | | 40.27 @ 1 |
 | Carlton Bates Company | 40308486012 | 43.82 | 1 | In Stock | | ORION FANS | | 43.82 @ 1 |
 | arcade-electronics.com | ORI-OA172SAP-11-2TB | 48.6 | 1 | In Stock | | Orion Fans | | 48.6 @ 1 |
| Digi-Key | 2620944 | 53.22 | 1 | In Stock | | Orion Fans | 2.6 | 53.22 @ 1 |
 | jensentools.com | 10141587 | 54.45 | 1 | In Stock | | Orion Fans | | 54.45 @ 1 |
| us.rs-online.com | 70103343 | 59.3 | 1 | 38 | | Orion Fans | | 59.3 @ 1 |
 | Newark | 89AH2386 | 60.77 | 1 | In Stock | | ORION FANS | | 60.77 @ 1 |
 | Galco | OA172SAP-11-2TB-ORIN | 70.22 | 1 | In Stock | | Orion | 2.53 | 70.22 @ 1 |
| Future Electronics | 3701620 | 90.3486 | 10 | In Stock | | Orion Fans | | 90.3486 @ 10 |
