- mpnPV10-12R-Q
- brandname: Panduit
- manufacturername: Panduit

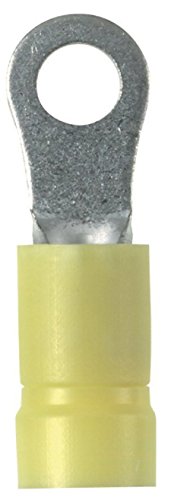

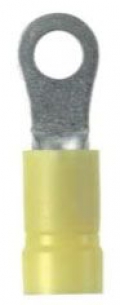

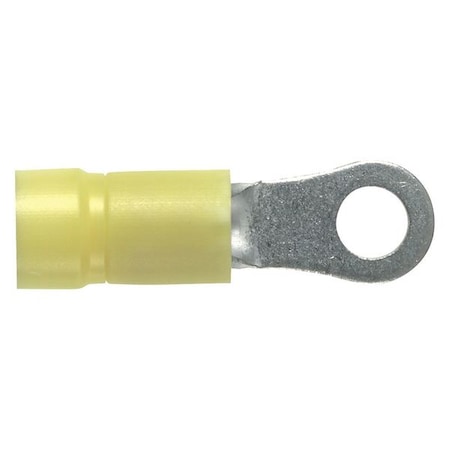

Panduit PV10-12R-Q Ring Terminal, Vinyl Insulated, 12 - 10 AWG, 1/2-Inch Stud Size, Funnel Entry, Yellow (25-Pack)
- Brand: Panduit
- PartNumber: PV10-12R-Q
- Model: PV10-12R-Q
- Color: Yellow
- Size: 25-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Approvals | CSA, UL |
| AWG Range | #10 |
| Barrel Configuration | Funnel Entry |
| Barrel Type | Insulation Support, Bra. |
| Base Material | Copper |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Clearance | 0.53 |
| Clearance (mm) | 13.5 |
| Color | Yellow |
| Color Family | Yellow |
| Connection Material | Copper |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated, Vinyl |
| Insulation Color | Yellow |
| Insulation Diameter | 0.225" (5.72mm), 0.225". |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Ring Terminal |
| Item Number | PV10-12R-Q |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length (In.) | 1.46 |
| Length (mm) | 6-Feb |
| Length - Overall | 1.460" (37.08mm), 1.460. |
| Manufacturer | Panduit |
| Manufacturer Part Number | PV10-12R-Q |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper, Vinyl |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Max. Insulation Diamete. | 0.225 (5.7) |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Note | PV10-12R-Q replaces PV1. |
| Outer Diameter | 0.53 in. |
| Overall Length | 1.46 in |
| Package | Bulk |
| Package Quantity | 25 |
| Packaging | Bulk Pack |
| Panduit Color Code | Yellow |
| Part Number Series | PV |
| Part Status | Obsolete |
| Plating Material | Tin |
| Plating Type | Tinned |
| Product Series | Pan-Term Terminals |
| Rated Voltage | 1000V |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Series | Pan-Term?, Pan-Term |
| Standard Package | 25 |
| Standards | CSA C22.2 No. 65, UL486. |
| Stock | 0.04 |
| Stud Hole Size (mm) | M12 |
| Stud Size | 1/2 in., 1/2", 1/2 . |
| Stud/Tab Size | 1/2 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Thickness | 0.040" (1.02mm), 0.040". |
| Tongue Width - Wire Con. | 0.72 in |
| UNSPSC | 39121409 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Volts AC | 600 |
| Width | 0.72 in. |
| Width - Outer Edges | 0.720" (18.29mm), 0.720. |
| Wire Gauge | 10-12 AWG |
| Wire Range | 12 AWG - 10 AWG, 12 AWG. |
| Wire Range (mm?) | 4.0 - 6.0 |
| Wire Size | 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | PV10-12R-Q | 1.343 | 450 | 450 | | Panduit | | 1.343 @ 450 |
 | cbtcompany.com | PV10-12R-Q | 1.48 | 1 | 25 | | PANDUIT | | 1.48 @ 25 |
| Onlinecomponents.com | PV10-12R-Q | 1.58 | 1 | 88 | | PANDUIT | | 1.58 @ 25 |
 | Galco | PV10-12R-Q-PNDT | 1.61 | 125 | 25 | | Panduit | | 1.61 @ 125 |
| Digi-Key | 2039667 | 1.666 | 1 | 25 | | Panduit Corp | | 1.666 @ 25 |
 | Platt.com | 0615951 | 1.74 | 1 | 122 | | Panduit | | 1.74 @ 25 |
| Airline Hydraulics | 1976475 | 1.78 | 1 | 25 | | PANDUIT | | 1.78 @ 25 |
 | Newark | 68AC0304 | 1.91 | 125 | 25 | | PANDUIT | | 1.91 @ 100 |
| us.rs-online.com | 72260275 | 1.94 | 125 | 25 | | Panduit | | 1.94 @ 125 |
| Hotenda | H1660870 | 1.9792 | 1 | 25 | | Panduit | | 1.9792 @ 25 |
| Future Electronics | 8021048 | 2.268 | 25 | 25 | | Panduit | | 2.268 @ 25 |
 | alldataresource.com | 415448 | 2.95 | 1 | 25 | | Panduit | | 2.95 @ 25 |
 | Zoro | G0640416 | 24.83 | 1 | 25 | | Panduit | | 24.83 @ 25 |
 | Carlton Bates Company | 07498312450 | 41.25 | 1 | 25 | | PANDUIT | | 41.25 @ 25 |
 | Raptor Supplies | AH8YCM | 75.53286 | 1 | 25 | | PANDUIT | | 75.53286 @ 25 |
| Graybar | 25237543 | 171.584 | 25 | 25 | | Panduit | | 171.584 @ 25 |
 | turtle.com | PAN PV10-12R-Q | 174.43 | 1 | 25 | | Panduit | | 174.43 @ 25 |
| steinerelectric.com | 501241 | 189.86 | 1 | 25 | | Panduit | | 189.86 @ 25 |
 | gordonelectricsupply.com | PV10-12R-Q | 194.49 | 1 | 25 | 12 | PANDUIT | | 194.49 @ 25 |
