Schneider Electric METSEPM5330

B00NGOWA32

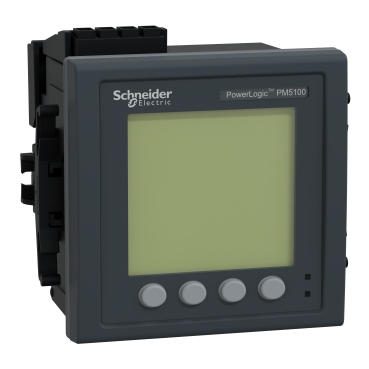

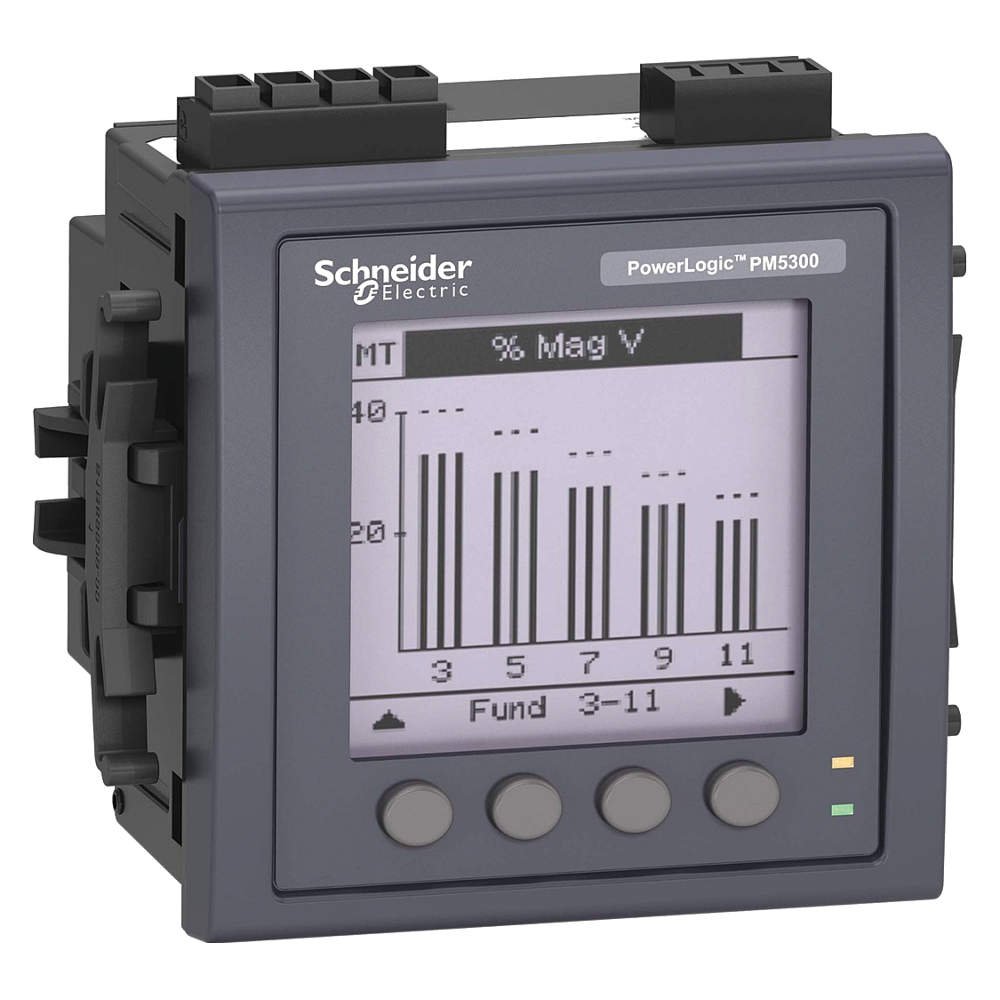

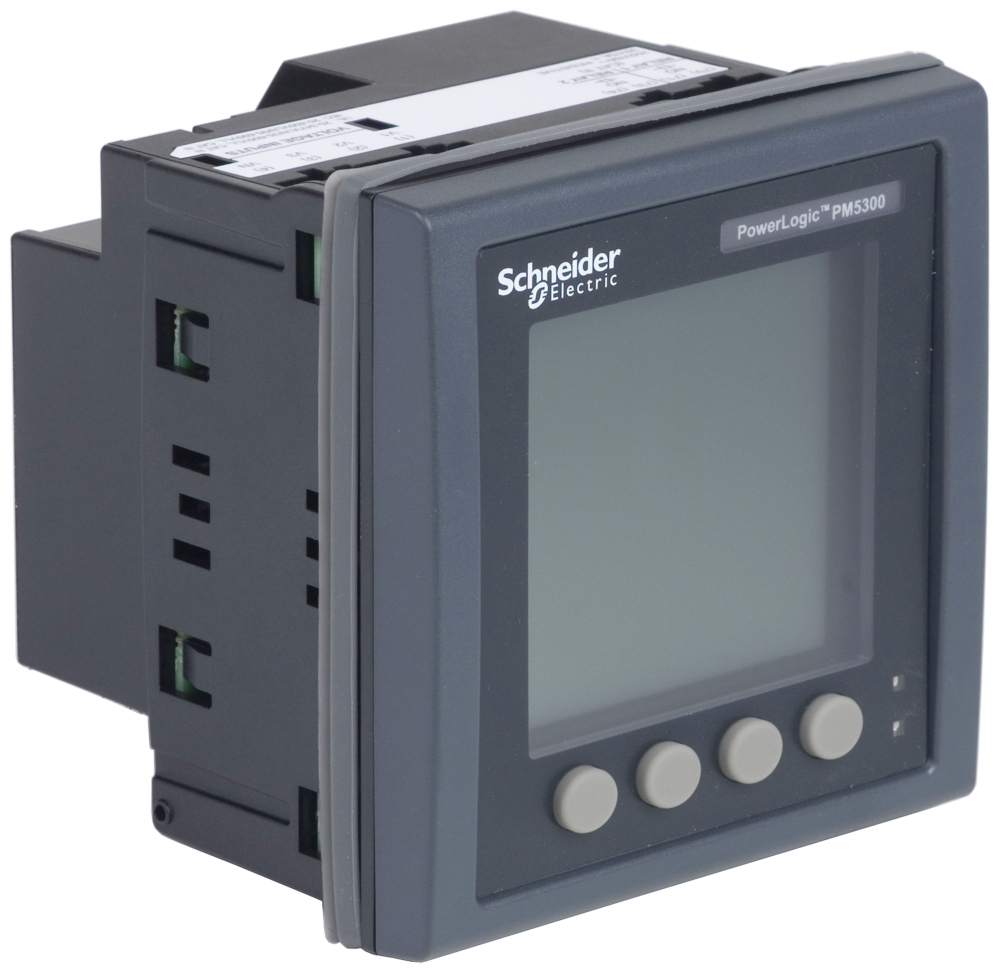

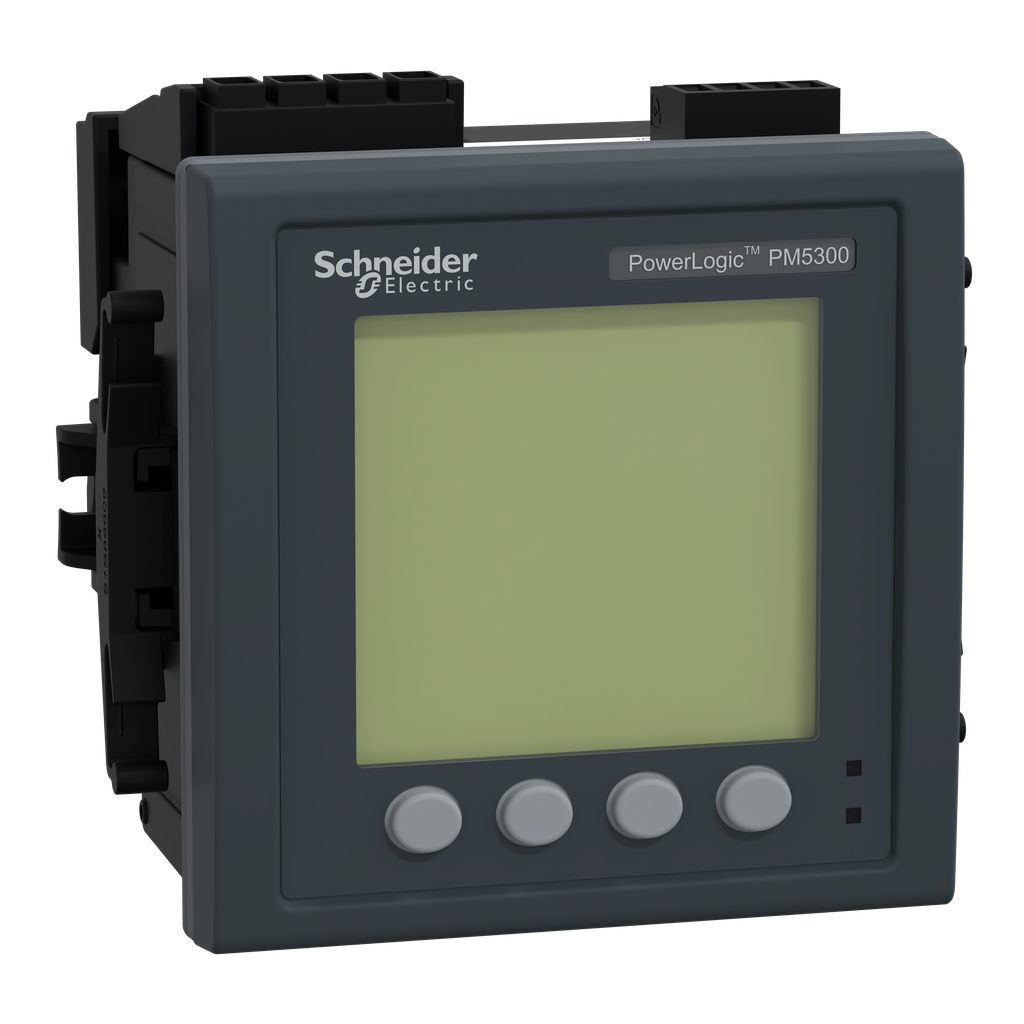

Schneider Electric Power Meter, 35Vac to 760Vac - METSEPM5330

Schneider Electric Power Meter, 35Vac to 760Vac - METSEPM5330zoom

Attributes

Key Value
[In] rated current1 A
[Us] Rated Supply Volta.90...450 V AC 45...65 H.
Accuracy+/-0.50%, Active energy.
accuracy classClass 0.5S active energ.
Accuracy Classclass 0.5S active energ.
ambient air temperature.-25?70 ?C
Ambient Air Temperature.-25-70 ?C meter
Ambient Air Temperature.-40-85 ?C
ambient air temperature.-40?85 ?C
Amps1 A, 5 A
analogue input typeVoltage (impedance 5 MO.
ApplicationPower monitoring;multi-.
BrandSchneider Electric
California Proposition .Cancer and Reproductive.
Catalog NumberMETSEPM5330
China Rohs RegulationX
Circularity ProfileENVEOLI1305025
Communication Port Prot.Modbus RTU and ASCII 9..
communication port prot.Modbus RTU and ASCII at.
Communication Port Supp.RS485
communication port supp.RS485
Communication Port TypeRS485
connections ? ter.Voltage circuit: screw .
Connections - Terminalsvoltage circuit screw t.
Country of OriginIndia
Data Recordingmaintenance logs || tim.
data recordingMaintenance logs
Depth72 mm, 2.83 in
depth72 mm
device applicationPower monitoring
Device Applicationpower monitoring || mul.
Device Short NamePM5330
device short namePM5330
DisplayLCD
Display Resolution128 x 128 pixels
display resolution128 x 128 pixels
display typeBacklit LCD
Display Typemonochrome graphic LCD,.
electromagnetic compati.Limits for harmonic cur.
Electromagnetic Compati.8 kV level 4 conforming.
Enclosure RatingNot Enclosed
Environmental DisclosureENVPEP1305025
Eu Rohs DirectiveCompliant
FeaturesModbus
frequency measurement r.45?65 Hz
Frequency Measurement R.45-65 Hz
Frequency Rating50 Hz;60 Hz
FunctionPower
height96 mm
Height96 mm, 3.78 in
Hz50/60
Indicator128 x 128 pixels;Tariff.
Information Displayedtariff 4)
information displayedTariff (4)
Input Voltage120/480V AC, 125/250V DC
InterfaceModbus RTU and ASCII 9..
IP degree of protectionIP52 front: conforming .
Ip Degree Of Protectiondisplay IP54 IEC 60529 .
ItemPower meter
Item TypePower meter;Current;vol.
Line Rated Current1 A || 5 A
Made in USANo
ManufacturerSchneider Electric
maximum power consumpti.10 VA at 415 V
Maximum Power Consumpti.11 VA 415 V
Measurement Accuracyactive energy +/- 0.5 %.
measurement accuracyActive energy +/- 0.5 %
Measurement Current5-8500 mA
measurement current10?9000 mA
measurement voltage35?690 V AC 45?65 Hz be.
Measurement Voltage35-760 V AC 45...65 Hz .
MeasuresCurrent, Data Logging, .
Memory Capacity256 kB
memory capacity256 kB
Mercury FreeYes
Meter Range20 to 690V
MountingFlush
Mounting ModeFlush-mounted
mounting modeFlush-mounted
Mounting SupportFramework
mounting supportFramework
Mounting TypePanel Mount
Net Weight430 g
net weight430 g
Network Frequency50 Hz || 60 Hz
network frequency50 Hz
number of inputs2 digital
Number Of Inputs2 digital
Number Of Outputs2 relay || 2 digital
number of outputs2 relay
Number of Units in Pack.1
Number of Units in Pack.12
Number of Units in Pack.288
Operating Altitude6561.68 ft (2000 m) CAT.
operating altitude2000 m
Operating Temp. Range-25 Degrees to 70 Degr.
Output2 RELAY-2 DIGITAL
Package 1 Height11.0 cm
Package 1 Length12.6 cm
Package 1 Weight550.0 g
Package 1 width12.6 cm
Package 2 Height30.0 cm
Package 2 Length40.0 cm
Package 2 Weight7.6 kg
Package 2 width30.0 cm
Package 3 Height105.0 cm
Package 3 Length120.0 cm
Package 3 Weight206.4 kg
Package 3 width80.0 cm
Package Quantity1
Phase3
Poles Description3P + N || 3P || 1P + N
pollution degree2
Pollution Degree2
Power Quality AnalysisUp to the 31st harmonic
power quality analysisUp to the 31st harmonic
Product CertificationsCE IEC 61010-1 || cULus.
product certificationsCE conforming to IEC 61.
product namePowerLogic PM5000
Product NamePowerLogic PM5000
product or component ty.Power meter
Product Or Component Ty.Power meter
RangePowerLogic
rangePowerLogic
Reach RegulationReference contains Subs.
Relative Humidity5-95 % 50-50 ?C non-con.
relative humidity5?95 % at 50 ?C
Ride-Through Time80 ms 120 V AC typical .
ride-through time80 ms 120 V AC typical
Rohs Exemption Informat.Yes
sampling rate64 samples/cycle
Sampling Rate64 samples/cycle
SeriesPM5000 Series
Size3.78
Special Features64 samples/cycle
StandardUL 61010-1;IEC 62053-22.
StandardsANSI C12.20 Class 0.2
standardsUL 61010-1
Sub BrandPowerLogic PM5000;PM5330
supply voltage100?415 V AC 45?65 Hz
Sustainable Offer StatusGreen Premium product
TypePower
Type Of Measurementcurrent || voltage || f.
type of measurementCurrent
type of network3P + N
Unit Type of Package 1PCE
Unit Type of Package 2S03
Unit Type of Package 3P12
UPC785901860662
UPC Code785901860662
Voltage Rating90...450 V AC 45...65 H.
WeeeThe product must be dis.
Width96 mm, 3.78 in
width96 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comMETSEPM53304.571In StockSchneider Electric4.57 @ 1
thumbzoomkempstoncontrols.co.ukMETSEPM5330507.2322061In StockSchneider507.232206 @ 1
thumbzoommodiconpac.com5866573.01In StockSchneider Electric454.08573.0 @ 1
thumbzoomNex InstrumentMETSEPM5330688.01In StockSchneider Electric688.0 @ 1
RS Delivers913-9744783.01In StockSchneider Electric783.0 @ 1
thumbzoomAmazonB011ON9HY6850.31In StockSchneider Electric850.3 @ 1
thumbzoomZoroG6737114977.9913Schneider Electric1.25977.99 @ 1
thumbzoomNewark51X60621147.51In StockSCHNEIDER ELECTRIC1147.5 @ 1
alliedcontrols.comMETSEPM53301169.891In StockSchneider Electric1169.89 @ 1
us.rs-online.com703707161178.9611Schneider Electric1178.96 @ 1
thumbzoomRadwellMETSEPM53301300.012SCHNEIDER ELECTRIC SQUARE D1300.0 @ 1
thumbzoomsustainablesupply.comC29267271335.441In StockSchneider Electric1.251335.44 @ 1
Grainger31HK321462.01In Stock16SCHNEIDER ELECTRIC1462.0 @ 1
standardelectricsupply.com23101591518.981In StockSchneider Electric1518.98 @ 1
thumbzoomgordonelectricsupply.comMETSEPM53301580.01In Stock10SQD1580.0 @ 1
thumbzoommayerelectric.comSQDMETSEPM53301721.641In StockSCHNEIDER ELECTRIC0.9461721.64 @ 1
thumbzoomcrescentelectric.com6914181856.751In StockSchneider Electric1856.75 @ 1
thumbzoomRaptor SuppliesAG2FBQ2031.39816751In StockSCHNEIDER ELECTRIC2031.3981675 @ 1
