Schneider Electric ZB6EB1B

B000WL6H18

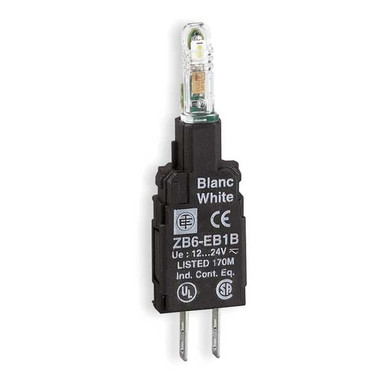

Lamp Module, 16mm, 12-24V, White, LED

Lamp Module, 16mm, 12-24V, White, LEDzoom

Attributes

Key Value
[Ui] Rated Insulation V.250 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.4 kV IEC 60947-1
[Us] Rated Supply Volta.12...24 V AC/DC
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
BrandSchneider Electric
Bulb Baseintegral LED
Cad Overall Depth58 mm
Cad Overall Height14 mm
California Proposition .Lead and lead compounds.
Catalog NumberZB6EB1B
CategoryOptoelectronics
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
Colorwhite
ConnectionFaston connectors 2.8 x.
Connections - TerminalsFaston connectors 2.8 x.
Contact Form(+ -)PL
Country of OriginSpain
Current15mA
Current Consumption15 mA
Current Rating30
Current Stock47
DescriptionCOMPLETE BODY FOR PILOT.
Detailed DescriptionLED Panel Indicator Whi.
Device Short NameZB6
Digi-Key Part Number4008-ZB6EB1B-ND
Electrical Shock Protec.class II IEC 61140
Electromagnetic Emissionclass B IEC 55011
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Miscellaneous
Features-
For Use WithXB6 Series
Gross Weight0 lbs
GTIN03389110784244
IndicatorLED,INTEGRAL LED,WHITE
Ingress Protection-
Insulation250 V 3)EN/IEC 60947-1
International ShippingNo
IP Rating20, IP65
ItemLamp Module With Bulb
Item NumberZB6EB1B
Item Typecomplete body for pilot.
Lamp Colorwhite
Lamp Module Voltage12 to 24V AC/DC
Lamp TypeLED
Lamp Voltage24V AC/DC
Lead TimeExpected to ship in 1-2.
Lens Color-
Lens Size-
Lens StyleRound with Flat Top
Lens Transparency-
Light Block Supplydirect
Light SourceLED
Light Source Colourwhite
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.ZB6EB1B
Manufacturer Standard L.1 Weeks
Mercury FreeYes
MfrSchneider Electric
Millicandela Rating-
Mounting Hole Size16
MpnZB6EB1B
NEMA Rating13, 4, 4X
Net Weight0.003 kg, 0 lbs
Operating Positionany position
Operating Temperature-25-70 A Degrees C
PackageBox
Panel Cutout Dimensions-
Panel Cutout Shape-
Product CertificationsGOST || CCC || UL || CSA
Product Or Component Ty.complete body for pilot.
Product StatusActive
Product TypeLamp Module With Bulb
Protective TreatmentTC
Range Of ProductHarmony XB6
RatingsAC/DC
Reach RegulationReference contains Subs.
Resistance To Electroma.10 V/m IEC 61000-4-3
Resistance To Electrost.6 kV on contact (on met.
Resistance To Fast Tran.2 kV IEC 61000-4-4
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.5
SeriesHarmony ZB6, Harmony XB.
Shock Resistance30 gn 18 ms) half sine .
Signalling Typesteady
Size16 mm, 14 MM,58 MM
SKUZO-G1954407
Special Featurescomplete body for pilot.
Standard+/- 3 MM 2-500 HZ)IEC 6.
StandardsJIS C 852 || UL 508 || .
Sub BrandZB6
SubCategoryElectrical
Supply Voltage Limits6-30 V AC/DC
Surge Withstand1 kV in contact IEC 610.
Sustainable Offer StatusGreen Premium product
Terminal ConnectionSlip On
Terminals Description I.(+ -)PL
Termination StyleQuick Connect - 0.110" .
TypeSteady Signal, LED
UPC785901363521
UPC Code785901363521
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 6.
Viewing Angle-
Voltage12V ~ 24V, 12 to 24V AC.
Voltage Rating12...24 V AC/DC, 12 to .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wavelength - Peak-
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com21654538.41In StockSchneider Electric8.4 @ 1
thumbzoommayerelectric.comSQDZB6EB1B8.451In StockSQUARE D0.00668.45 @ 1
us.rs-online.com7000891310.3611Schneider Electric10.36 @ 1
thumbzoomTMEZB6EB1B11.6113SCHNEIDER ELECTRIC11.61 @ 1
RS Delivers422-887012.3241In StockSchneider Electric12.324 @ 1
thumbzoomZoroG195440712.65118Schneider Electric0.0112.65 @ 1
thumbzoomGalcoZB6EB1B-SQD13.871In StockSquare D13.87 @ 1
thumbzoommostelectric.comZB6EB1B15.991In StockSQUARE D/TELEMECANIQUE15.99 @ 1
thumbzoomNewark66AH795716.75115SCHNEIDER ELECTRIC16.75 @ 1
Future Electronics702843818.2165In StockSchneider Electric18.216 @ 5
thumbzoomDigi-Key1660561320.14110Schneider Electric20.14 @ 1
AmazonSCB000WL6H1820.371In StockSchneider Electric20.37 @ 1
thumbzoomsimsupply.comZO-G195440720.94147Schneider Electric20.94 @ 1
thumbzoomblackhawksupply.comZB6EB1B22.181In StockSquare D22.18 @ 1
thumbzoomsustainablesupply.comC120173722.941In StockSchneider Electric0.0122.94 @ 1
thumbzoomcrescentelectric.com41602025.611In StockSchneider Electric25.61 @ 1
thumbzoomRaptor SuppliesAG7BZQ40.5151111In StockSCHNEIDER ELECTRIC40.515111 @ 1
