Schneider Electric HDA260404

B00CONK4DO

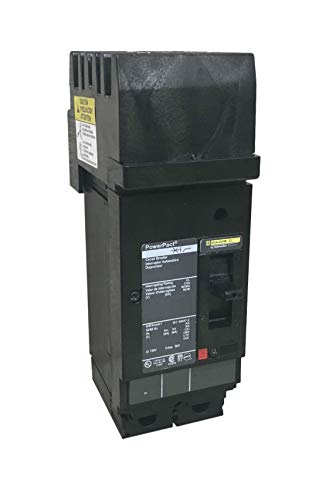

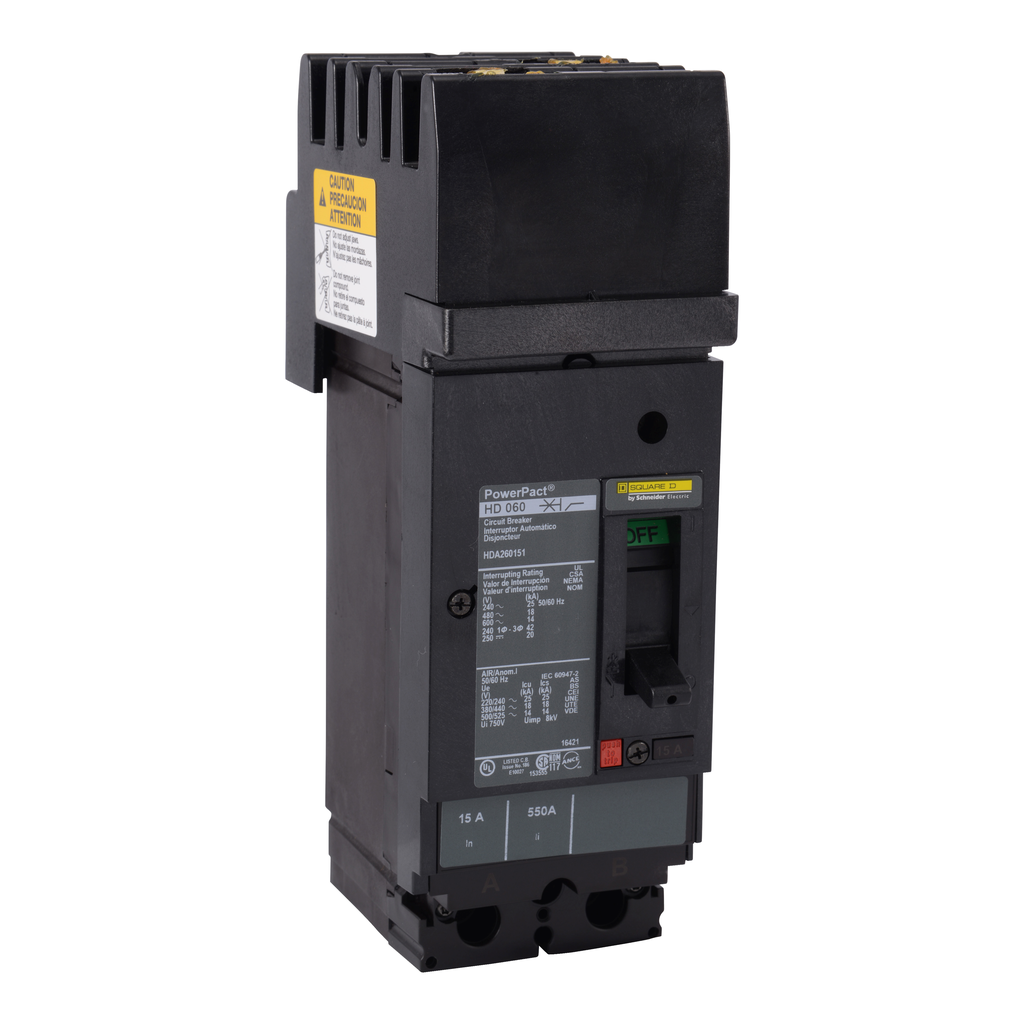

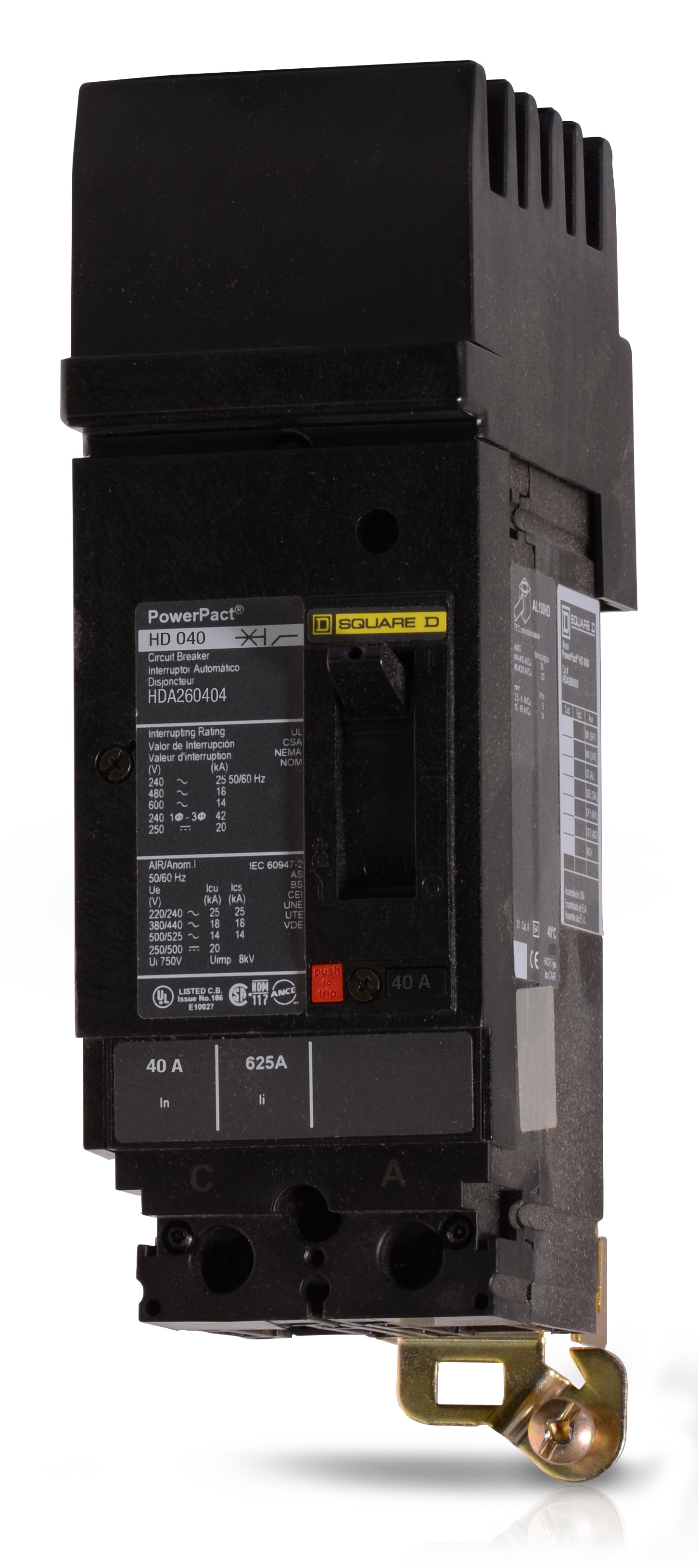

SCHNEIDER ELECTRIC 600-VOLT 40-AMP HDA260404 Molded CASE Circuit Breaker 600V 40A

SCHNEIDER ELECTRIC 600-VOLT 40-AMP HDA260404 Molded CASE Circuit Breaker 600V 40Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage40
Amperage Rating40
ApplicationPROVIDES OVERLOAD AND S.
ApprovalUL
Awg GaugeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260404
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Applica.HACR rated
Circularity ProfileENVEOLI2206027EN
ColorBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States
Depth86 mm
Device Applicationdistribution
DisplayHDA260404 Circuit break.
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
FrameD
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901632504
Height163 mm, 6.42
Interrupting Rating25kAIC at 240VAC, 18kAI.
Ip Degree Of Protectionfront cover IP40 IEC 60.
Item Typecircuit breaker
Length4.8 IN
Line Rated Current40-40 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current400 A
Magnetic Tripping Curre.850-850 A
ManufacturerSchneider Electric
Mercury FreeYes
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
MpnHDA260404
Net Weight2.2 kg
Network Frequency50/60 Hz
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionBC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHDA
Special FeaturesI-LINE
StandardCE-UL LISTED-IEC-CSA
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range40 A,400 A,850 A
Trip Typethermal-magnetic
Trip Unit Technologythermal-magnetic
Upc785901632504
UPC785901632504
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comHDA260404514.991In StockSchneider Electric514.99 @ 1
thumbzoomgordonelectricsupply.comHDA260404515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260404532.251In StockSQUARE D4.84532.25 @ 1
thumbzoomRadwellHDA260404560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
Newark19K9968649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
thumbzoomsuperbreakers.comHDA2604041030.1117Square D1030.11 @ 1
thumbzoomcrescentelectric.com10632091749.711In StockSquare D by Schneider Electric1749.71 @ 1
