Schneider Electric HDA260702

B00CONFV82

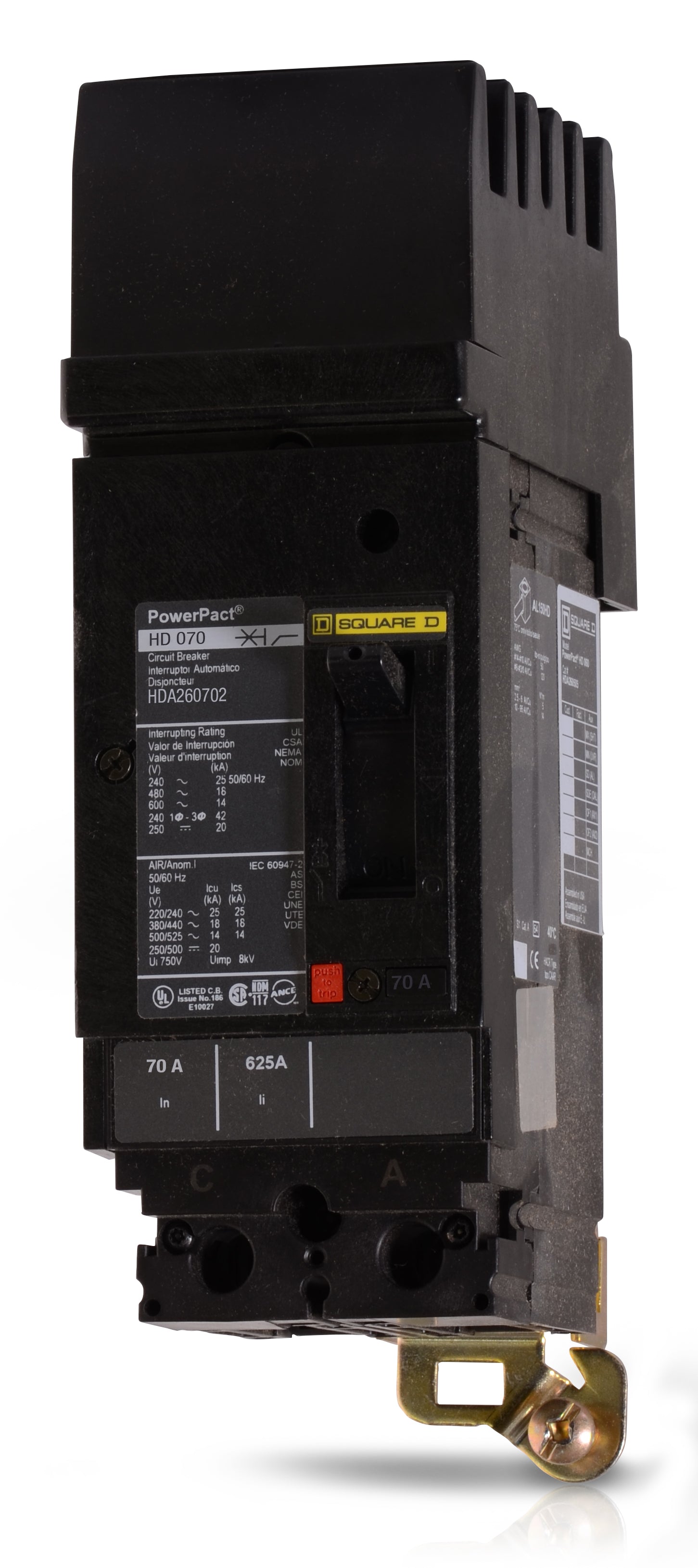

SCHNEIDER ELECTRIC 600-VOLT 70-AMP HDA260702 Molded CASE Circuit Breaker 600V 70A

SCHNEIDER ELECTRIC 600-VOLT 70-AMP HDA260702 Molded CASE Circuit Breaker 600V 70Azoom

Attributes

Key Value
AC Voltage Rating690V AC
Amperage70
Amperage Rating70
Amps70 A
ApplicationHACR rated Applications.
ApprovalUL
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDA260702
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Country of OriginUnited States, US - Uni.
Current Rating70A
Depth86 mm
DisplayHDA260702 Circuit break.
ECCNEAR99
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901632610
Height163 mm, 3 in., 6.42
High Amp Trip Setting1450 A
Interrupt Rating14 kA, 25 kA at 220/240.
Interrupting Rating25kAIC at 240VAC, 18kAI.
ItemCircuit breaker,PowerPa.
Item TypeCIRCUIT BREAKER
Length16 mm, 4.8 IN
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypeI-Line
MpnHDA260702
No. of Poles2
Number of Poles2
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAC
Poles2
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact, HDA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPowerPact
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range1450 A,70 A,800 A
Trip TypeTHERMAL-MAGNETIC, Therm.
UNSPSC39121616
UPC785901632610
Upc785901632610
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHDA260702625.01In Stock10SQUARE D625.0 @ 1
thumbzoomRadwellHDA260702680.01In StockSCHNEIDER ELECTRIC SQUARE D680.0 @ 1
thumbzoomZoroG3980353707.571In Stock65Square D10.0707.57 @ 1
Graybar25148889767.07681In StockSquare D (Schneider Electric)767.0768 @ 1
steinerelectric.com699402779.551In StockSquare D?779.55 @ 1
Newark19K9981785.481In StockSQUARE D BY SCHNEIDER ELECTRIC785.48 @ 1
simplybreakers.comHDA260702859.991In StockSchneider Electric859.99 @ 1
thumbzoomsuperbreakers.comHDA2607021153.65112Square D1153.65 @ 1
thumbzoommostelectric.comHDA2607021274.2711SQUARE D/TELEMECANIQUE1274.27 @ 1
thumbzoomcrescentelectric.com5418012117.591In StockSquare D by Schneider Electric2117.59 @ 1
