T&S Brass B-0133-ADF14-B

mpnB-0133-ADF14-B
brandname: T&S Brass
manufacturername: T&S Brass

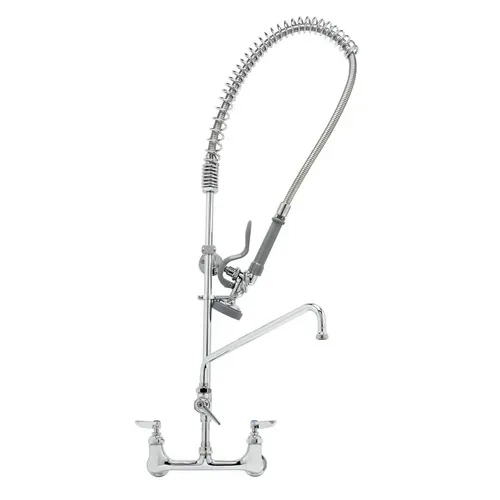

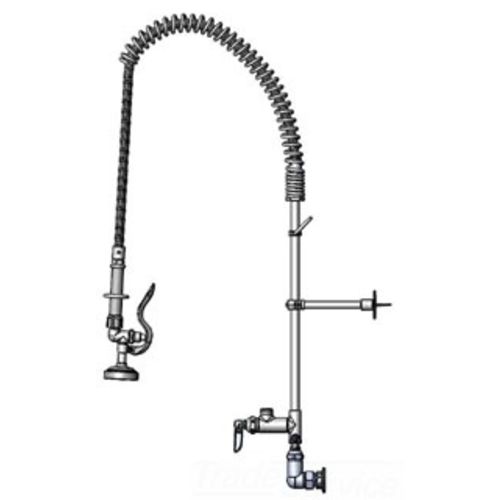

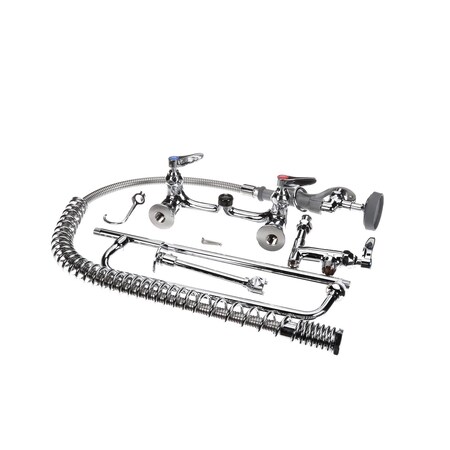

T&S Brass B-0133-ADF14-B Easyinstall Pre-Rinse Unit, Spring Action, Wall Mount Base, 8" Centers,

Brand: T&S Brass
PartNumber: B-0133-ADF14-B
Binding: Misc.
Manufacturer: T&S Brass
Label: T&S Brass

Attributes

Key	Value
ADA Compliant	No
Adjustable	Yes
ANSI Specifications	ANSI 61
Application	Commercial
ASME Specifications	ASME A112.18.1
Assembled Dimensions - .	16.438
Assembled Dimensions - .	37.625
Assembled Dimensions - .	12.625
ASTM Specifications	ASTM F2324
BAA	Yes
BAA Compliant	Yes
Base Material	Metal
Best Sellers Rank	See Top 100 in Industri.
Box Dims	12x28x4
Brand	T+S Brass, T&S Brass
Built-in Stops	No
California Energy Commi.	Y
CARB OTC LEED Compliant	No
Cartridge Type	Quarter-Turn Eterna Car.
Case Pack	1
CEC Compliant	For Sale in CA
Center Size	8 in
Certifications	NSF
Coating	Chrome Plated
Collection	EasyInstall
Color Finish	Chrome Plated
Color Finish Category	Chromes
Country of Origin	US
Country of Origin (subj.	United States
CSA Certified	CSA B125.1
Date First Available	August 24, 2011
Depth	16-219/500 in
Depth (in)	00
End Connection 1	FNPT
End Connection 2	FNPT
End Connections	FNPT
Engineering Spec	8 wall mount mixing fau.
Faucet Centers	8"
Faucet Connection	FNPT
Faucet Connection Size	1/2 in
Faucet Height	37-219/500 in
Faucet Material	Brass
Faucet Mount	Wall Mount
Faucet Type	Pre-Rinse
Faucet Valve Type	Compression
FEATURE1	8 wall mount mixing fau.
FEATURE10	Adjustable centers from.
FEATURE11	6 adjustable wall brack.
FEATURE12	Material: Polished chro.
FEATURE2	EasyInstall add-on fauc.
FEATURE3	14 swing nozzle w/ stre.
FEATURE4	18 rigid riser
FEATURE5	44 flexible stainless s.
FEATURE6	1.15 GPM spray valve
FEATURE7	Quarter-Turn Eterna com.
FEATURE8	Lever handles w/ color .
FEATURE9	1/2 NPT female eccentri.
Fitting Size 1	1/2 in
Fitting Size 2	3/4 in
Fitting Sizes	1/2 in
Flow Rate	1.15 GPM
GSA Approved	Yes
GTIN	671262632621
Handle Included	Yes
Handle Length in	2-313/1000 in
Handle Material	Chrome Plated Metal, Br.
Handle Type	Lever
Harmonizing No	8481.80.5060
Height	37-5/8 in, 37.63" in, 4.
Height (in)	00
Hose Included	Yes
Hose Length	44 in, 44"
IAPMO Listed	No
Inlets	1/2 NPT Female
Installation Type	Wall Mount, Wall Mounted
Institutional Faucet Ty.	Service
ISO Specifications	ISO 9001
Item model number	B-0133-ADF14-B
Lead Law Compliance Lev.	Lead Free and Lead Leac.
Lead Law Compliant	Yes
Length	12.00, 16-219/500 in, 1.
Low Lead Content	Yes
MA Approved	Yes
Manufacturer	T&S Brass
Manufacturer Part #	B-0133-ADF14-B
Material	Chrome plated, Stainles.
Maximum Pressure	125 psi
Maximum Temperature	140
Metal Type	Brass
Minimum Pressure	20 psi
Minimum Temperature	40
Model Number	B-0133-ADF14-B
Mount Type (Wall or Dec.	WALL
Mounting Type	Wall Mount
Nozzle	Swivel
Nozzle Length	14"
NSF Certified	Yes
NSF Specifications	NSF 61
Number of Handles	Two Handle
Number of Holes	2 Hole
Origin	Domestic
Part #	B-0133-ADF14-B
Part Description	EasyInstall Pre-Rinse, .
PERFORMANCE 1	Pressure: 20 - 125 psi
PERFORMANCE 2	Temperature: 40 F - 140.
PERFORMANCE 3	Flow Rate: Spray Valve .
PERFORMANCE 4	Flow Rate: Add-On Fauce.
Primary Product Color	Silver
Product Dimensions	12 x 4 x 28 inches; 1 P.
Product Finish	Chrome Plated
Product with faster shi.	true
Shipping	undefined (Fixed Shippi.
Side Spray	No
Spout Height	9-13/16 in
Spout Reach	14 in
Spout Swivel	180?
Spout Type	Swivel
Spray Valve Flow Rate	1.15 GPM
Stock No.	PFC.B-0133-ADF14-B
Temperature	40?F - 140?F
Temperature Range	40 to 140 Deg F
Trim Only	No
UL Listed	No
Unit of Measure	EA
UPC	671262632621
Vacuum Breaker	No
Vandal Resistant	No
VPN	B-0133-ADF14-B
Wall Bracket	6"
Warranty	Three Year (Limited)
WaterSense Labeled	No
Weight	00, 13.90lbs lb, 13.90,.
Width	28.00, 12-5/8 in, 12.63.
Width (in)	00

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Restaurant Supply	13818	416.9	1	In Stock	T&S Brass		416.9 @ 1
JES	107813	492.25	1	In Stock	T & S Brass MAP		492.25 @ 1
Chicago Faucet Shoppe	TS-B-0133-ADF14-B	492.25	1	In Stock	T&S Brass		492.25 @ 1
WebstaurantStore	510B133AF14B	492.25	1	In Stock	T&S Brass and Bronze Works		492.25 @ 1
PlumbersStock	393209	492.25	1	In Stock	T&S Brass	13.9	492.25 @ 1
fdsupply.com	B-0133-ADF14-B	492.25	1	In Stock	T&S BRASS		492.25 @ 1
ckitchen.com	B-0133-ADF14-B	514.23	1	In Stock	T&S Brass		514.23 @ 1
Hubert	PFC.B-0133-ADF14-B	516.86	1	999	T S Brass	13.9	516.86 @ 1
totalsupply1.com	TSB-0133-ADF14B	545.76	1	In Stock	T & S Brass	13.9	545.76 @ 1
Faucet Shark	TSBRASS-B-0133-ADF14-B	625.35	1	In Stock	T&S Brass		625.35 @ 1
homeessentialsdirect.com	B-0133-ADF14-B	631.14	1	In Stock	T&S Brass		631.14 @ 1
ferguson.com	3174896	753.59	1	In Stock	T&S Brass		753.59 @ 1
National Supply Network	32071771	883.54	1	In Stock	T&S Brass		883.54 @ 1
Partstown	TSB-0133-ADF14-B	895.0	1	In Stock	T&S Brass		895.0 @ 1
Edge Supply	B-0133-ADF14-B	895.0	1	In Stock	T&S Brass		895.0 @ 1
Zoro	G006897502	1025.99	1	In Stock	T&S Brass		1025.99 @ 1
