- mpn4JSC3578
- brandname: TB Woods
- manufacturername: TB Woods

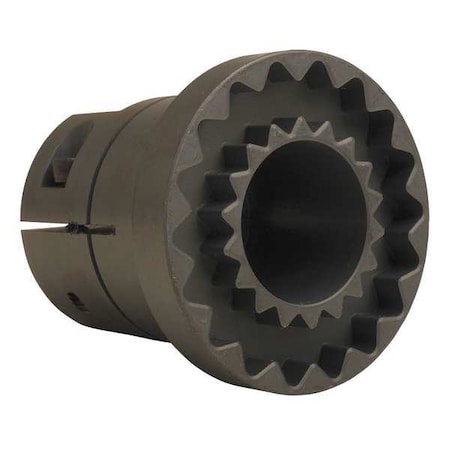

TB WOOD'S 4JSC3578 S-FLEX SC FLANGE, FACTORY NEW!
- Brand: TB Woods
- PartNumber: 4JSC3578
- Model: 4JSC3578
- Manufacturer: TB WOOD'S
- Label: TB WOOD'S
Attributes
| Key | Value |
|---|
| Bore Dia. | 7/8", 7/8 in |
| Bore Dia. (In.) | 7/8 |
| Bore Diameter | 7/8 in |
| Bore size | 7/8 in |
| Bore size (in) | 7/8 |
| Bore tolerance | +.0005 to +.0015 |
| bore type: | Finished w/ Keyway |
| Brand | Tb Woods |
| Bushing Required | None |
| Capscrew size | Not Required |
| Capscrew size (in) | Not Required |
| Capscrew torque require. | 5.5 in-lbs |
| Capscrew torque requirm. | 5.5 |
| Color | Gray |
| Component WR2 (lbs ft2) | - |
| Construction type | Finish bore with keyway |
| coupling overall length: | 5-5/8 in |
| Coupling size | 4 |
| Coupling Size | 4 |
| coupling size code: | 4 |
| Current Stock | 9 |
| Dimension (in) (C) | 1 1/16 |
| Dimension (in) (H) | 2 |
| Dimension (in) (S) | 1/2 |
| distance between shafts: | 3-1/2 in |
| Flange diameter | 2.5 |
| Flange Type - Sleeve Co. | SC |
| For Bushing Size | Not Applicable |
| Height (In.) | 1.063, 1.063 in |
| horsepower @ 100 rpm: | 0.2 (EPDM & Neoprene) hp |
| Horsepower Rating at 10. | 2 |
| Hub Body Length | Not Applicable |
| Hub Dia. (In.) | 1.063, 1.063 in |
| Hub Diameter | 2 in |
| hub end outside diamete. | 2 in |
| hub flange type code: | JSC |
| hub material: | Cast Iron |
| hub type: | Spacer Flange |
| Ideal For | Applications In Motors,. |
| International Shipping | No |
| Item | Sleeve Coupling Spacer . |
| Item - Sleeve Coupling . | Sleeve Coupling Spacer . |
| Keyseat (in) | 3/16 x 3/32 |
| Keyseat size | 3/16 in x 3/32 in |
| Keyseat Size (In.) | 3/16 x 3/32 |
| Keyway Depth | 3/32 in |
| Keyway Size Type | 3/16" x 3/32", 3/16 in . |
| keyway size: | 3/16 x 3/32 in |
| Keyway Width | 3/16 in |
| Lead Time | Expected to ship in 1-2. |
| Length through bore | 1.0625 |
| Length through Bore (In. | 1.08, 1.08 in |
| Material of Construction | Sintered Steel |
| Material type | High strength cast iron |
| Max angular gap misalig. | 0.043 in |
| Max angular misalignment | 1? |
| Max compatible bore size | 1.125 |
| Max parallel misalignme. | 1 |
| Max RPM | 7600 |
| Max speed | 7600 |
| Max. Angular Misalignme. | 1 Degrees For EPDM & N. |
| Max. RPM | 7,600 |
| maximum rpm: | 7600 RPM |
| Min compatible bore size | 0.5 |
| Mpn | 4JSC3578 |
| Outside Dia. | 1.063", 1.063 in |
| Outside Dia. (In.) | 1.063 |
| Outside Diameter | 2 in |
| Power rating at 100 RPM | 0.18 kW |
| Screw size | Setscrew |
| Screw Thread Size | 1/4"-20 |
| Screw type | Hub, spacer |
| series: | Sure-Flex |
| Set screw distance | 0.5 |
| Setscrew length | 0.25 |
| Setscrew length (in) | 1/4 |
| Setscrew Location | One over the Keyway |
| Setscrew size, location | 1/4 20 UNC, over keyseat |
| Setscrew torque require. | 13 |
| Setscrew Torque Requirm. | 13 |
| SF hub diameter | 2 |
| Size - Sleeve Couplings | 4 |
| SKU | ZO-G8513617 |
| SubCategory | Power Transmission |
| Torque | 156 in-lb |
| torque capacity: | 120 in-lbs |
| Torque rate | 156 in/lbs |
| UPC | 698672670029 |
| Width (In.) | 1.08, 1.08 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8513617 | 37.89 | 1 | 41 | | Tb Woods | 1.3 | 37.89 @ 1 |
 | MRO Supply | 339318 | 40.45 | 2 | In Stock | | TB Woods | | 40.45 @ 2 |
 | motionindustries.com | 00514514 | 47.0 | 1 | In Stock | | TB Woods (Altra) | | 47.0 @ 1 |
 | Purvis | 4JSC35X7/8 | 55.18 | 1 | In Stock | | TB Woods | | 55.18 @ 1 |
 | simsupply.com | ZO-G8513617 | 56.14 | 1 | 9 | | Tb Woods | | 56.14 @ 1 |
| us.rs-online.com | 72513697 | 58.07 | 1 | In Stock | | TB Wood's (Altra) | | 58.07 @ 1 |
 | sustainablesupply.com | C1677895 | 67.67 | 1 | In Stock | | TB Wood's | 1.3 | 67.67 @ 1 |
| AmazonSC | B0725JBKNX | 71.41 | 1 | In Stock | | TB Woods | | 71.41 @ 1 |
| grainger.ca | WWG32ZR83 | 72.48624522 | 1 | In Stock | | TB WOOD'S | 1.3 | 72.48624522 @ 1 |
