TE Connectivity 60619-4

B00LVJVPMQ

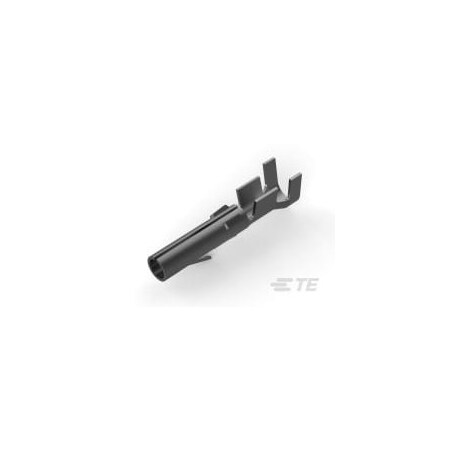

Power to the Board 20-14 AWG CRIMP SCKT (100 pieces)

Power to the Board 20-14 AWG CRIMP SCKT (100 pieces)zoom

Attributes

Key Value
Accepts Wire Insulation.3.3?mm?[?.13?in?]
Alternate Mfr Part Numb.60619-4
Alternate Part No.571-606194
ApplicationPower
Base Product Number60619
BrandTE Connectivity
CategoryConnectors, Interconnec.
Circuit ApplicationPower
ColorSilver
Color FamilySilver
Connection MaterialPhosphor Bronze
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector Series InitialOther Symbols
Connector SystemWire-to-Wire
Connector Terminates ToWire & Cable
Contact Base MaterialPhosphor Bronze
Contact Current Rating .15
Contact FinishTin Plated, Tin
Contact Finish Thickness-
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Tin
Contact OrientationStraight
Contact PlatingPre-Tin
Contact Retention Withi.With
Contact ShapeRound
Contact TerminationCrimp
Contact Termination Are.Tin
Contact TypeSocket
Current Rating15 A, 13 A
DescriptionCONN SOCKET 14-20AWG CR.
Detailed DescriptionSocket Contact Tin 14-2.
Digi-Key Part NumberA25562-ND
ECCNEAR99
Family NameUniversal MATE-N-LOK Fa.
For Multiple CrimpNo
For Use WithCommercial MATE-N-LOK H.
GenderFemale
Glow Wire RatingStandard Part - Not Glo.
ItemContact
ManufacturerTE Connectivity AMP Con.
Manufacturer P/N60619-4
Manufacturer Part No.60619-4
Manufacturer Product Nu.60619-4
Manufacturer Standard L.18 Weeks
Mating Pin Diameter2.13?mm?[?.084?in?]
Max. Insulation Dia.0.13 in
Max. Single Wire Size14 AWG
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Min. Single Wire Size20 AWG
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250
Pack Quantity100
PackageBulk
Packaging MethodBag/Box
Pin or SocketSocket
Product CategoryPin & Socket Connectors
Product StatusActive
Product TypeContact
Schedule B Code8538.90.7040
SeriesCommercial MATE-N-LOK, .
Shipping Weight0.89 pounds
Terminal FinishTin Plated
Terminal TypeCrimp
Termination TypeCrimp
TradenameMATE-N-LOK
Type-
Voltage Rating250 V
Wire Contact Terminatio.Tin
Wire Gauge14-20 AWG
Wire Gauge Range20-14
Wire Insulation SupportWithout
Wire Size14-20 AWG, .52 ? 2.08, .
Wire TypeDiscrete; Stranded

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group60619-40.22231000010TE Connectivity0.2223 @ 10000
thumbzoomMisumi USA60619-40.35110TE Connectivity0.35 @ 10
Onlinecomponents.com60619-40.3717016260TE Connectivity0.371 @ 70
thumbzoomNewark90F40560.375110008AMP - TE CONNECTIVITY0.375 @ 10
TE Connectivity60619-40.4878413291TE Connectivity (TE)0.48784 @ 10
us.rs-online.com700832590.51139TE Connectivity0.5 @ 10
thumbzoomswatee.com60619-40.541772TE Connectivity0.54 @ 10
thumbzoomDigi-Key2977000.5784118053TE Connectivity AMP Connectors0.5784 @ 10
RS Delivers709-98520.6361210TE Connectivity0.636 @ 10
TME60619-40.7641010TE Connectivity0.764 @ 10
AmazonTPB00DWIH6MM9.981102TE CONNECTIVITY9.98 @ 10
skygeek.comSGP55519-X10058.0110TE CONNECTIVITY0.8958.0 @ 10
thumbzoomZoroG301009846116.0110Te Connectivity116.0 @ 10
