826632-7

mpn826632-7
brandname: TE Connectivity
manufacturername: TE Connectivity

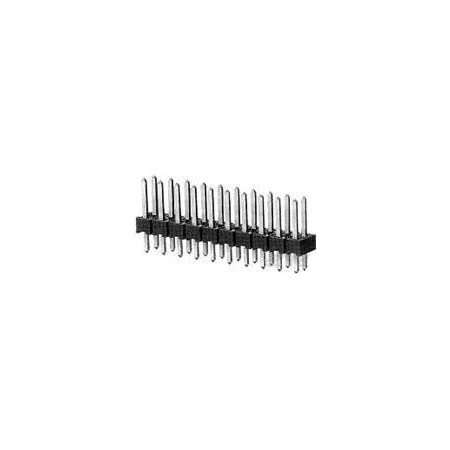

Headers & Wire Housings 2X07P DUAL ROW (5 pieces)

PartNumber: 826632-7
PackageQuantity: 5
Manufacturer: TE Connectivity / AMP
Label: TE Connectivity / AMP

Attributes

Key	Value
Applications	-
Base Product Number	826632
Category	Connectors, Interconnec.
Color	Green
Connection Material	Phosphor Bronze
Connector Terminates To	Printed Circuit Board
Connector Type	Header, Breakaway
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	3.90?in (0.099?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass
Contact Plating Thickne.	0.8 ?m
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	5 A
Current Rating (Amps)	5A
Description	CONN HEADER VERT 14POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A122908-ND
Fastening Type	Push-Pull
Features	-
Flammability Rating	UL 94 V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Green
Insulation Height	0.110" (2.79mm)
Insulation Material	Polybutylene Terephthal.
Item	PCB Mount Header
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	826632-7
Manufacturer Standard L.	23 Weeks
Mated Stacking Heights	-
Material	PBT
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	0.500" (12.70mm)
Package	Bulk
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	AMPMODU Mod II
Shrouding	Unshrouded
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type	Breakaway
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	88W2803	1.36	1	1709	AMP - TE CONNECTIVITY	1.36 @ 1
Digi-Key	2056106	1.72	1	6638	TE Connectivity AMP Connectors	1.72 @ 1
Hotenda	H1317268	1.74	1	57	TE Connectivity AMP Connectors	1.74 @ 1
RS Delivers	669-5291	2.0724	1	20	TE Connectivity	2.0724 @ 1
TME	826632-7	2.19	1	267	TE Connectivity	2.19 @ 1
Onlinecomponents.com	826632-7	2.69	1	2273	TE Connectivity / AMP Brand	2.69 @ 1
Zoro	G300939809	101.25	1	In Stock	Te Connectivity	101.25 @ 1
